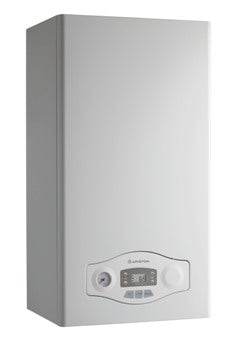

ARISTON EGIS PLUS 24 CF EU METHANE BOILER - ErP

Overview

ARISTON EGIS PLUS 24 CF EU METHANE BOILER - NEW ErP 2016: Compact wall-mounted boiler with open chamber and natural draft.

Technical specifications

Product code: 33001807

Energy label specifications according to the European ErP directive

Class C heating energy efficiency

Energy efficiency sanitarywareprofilXL Class B

Characteristics of heating/sanitary operations:

For heating and domestic hot water production

Open chamber with natural draft

Nominal heat input in heating max/min kW 25.8/11

Heating heat output max/min (80øC-60øC) kW 23.7/9.9ÿ

Nominal heat output efficiency % 91.9

Efficiency 30% of the nominal flow rateÿ% 91.2

Performance stars (dir. 92/42/EEC)

Max/min heating temperatureÿøC 35/ 85ÿ

Max/min DHW temperatureøC 36/60

Specific flow rate in sanitary facilities (10 min. with T=30øC) litres/min 11.3

Quantity of hot water T=25øC litres/min 13.6ÿ

Quantity of hot water T=35øC litres/min 9.7

Power supply voltage/frequency V/Hz 230/50ÿ

Degrees of protection for electrical systemsIP X4Dÿ

Dimensions (H x W x D) mm 745/400/315ÿ

METHANE fueled

List features

Egis Plus

Conventional compact wall-mounted boiler

The Egis Plus wall-mounted boiler is the solution for domestic comfort by Ariston; It stands out for its installation flexibility, covered hydraulic connections and dimensions. It can be integrated into solar systems and, thanks to the easy front access system, allows extreme maintainability without the need for tools.

It is available in the heating and domestic hot water production version: 24 kW (open chamber).

Characteristics:

Digital multifunction display

Continuously modulating high efficiency circulator

Predisposition for on-off thermoregulation

Preparation of natural circulation solar systems

Self-diagnosis system by code

Management of single-temperature zones

Primary copper exchanger

Double exchanger technology

Integrated minimum pressure switch

Cold water inlet and heating return filters

High efficiency circulator with continuous modulation:

It allows automatic adaptation of power based on the temperature of the system, guaranteeing the performance of the boiler and the reduction of electricity consumption.

Optimization of thermal efficiency.ÿ

Optimization of comfort with constant temperature.ÿ

Maximum silence.

Ecodesign Directive:

After very long negotiations, the Ecodesign regulation was approved, which introduces a new energy labeling on the minimum efficiency standards for boilers. In particular, an energy classification from A+ to G is provided for space heating appliances and from A to G for domestic hot water production appliances. "Hence the obligation to install only condensing boilers, heat generators capable of recovering a large part of the latent heat contained in the fumes which, otherwise, would be lost in the chimney" as happens in traditional boilers. The recovered heat is transferred to the heating system, allowing to reach an efficiency of 106% compared to 92% of the traditional boiler and 84/85% of an old traditional generator. The installation obligation concerns boiler manufacturers who will no longer be able to place those on the market non-condensing starting from 26 September 2015. This means that starting from this date, anyone who wants to install a boiler in their home will have to install only condensing models. Only one particular type of non-condensing boiler will continue to be produced which is technically called oa open room? to be installed... when it is not possible to replace an old boiler with a condensing boiler... due to problems related to the collective flue... of some multi-family buildings.

Products for water and space heating represent approximately 30% of internal energy consumption in Europe.

Designing eco-friendly products and promoting high-performance technologies to end users in 2020 will determine:

An annual energy saving equivalent to 56 million tonnes of oil, quantifiable as the savings obtained if the water and environmental heating systems of two nations as large as Italy were deactivated.

As of 26 September 2015, ErP regulation and energy labeling will be applied in Europe to water and space heating products (boilers, heat pumps, micro-CHP devices, water heaters, and hot water storage tanks) û.

There are different labels, based on the type and functions of the product (room water heating only of both, and in this case the label must show both classifications).

In addition to the energy class, the label provides other information that could be useful for understanding which product has the lowest environmental impact (for example, power and consumption in different climate zones, noise, etc.).

It is possible to increase the energy efficiency of hot water production and space heating by connecting several products and accessories to a system. In this case it is necessary to prepare a system label in addition to that relating to the individual product

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
