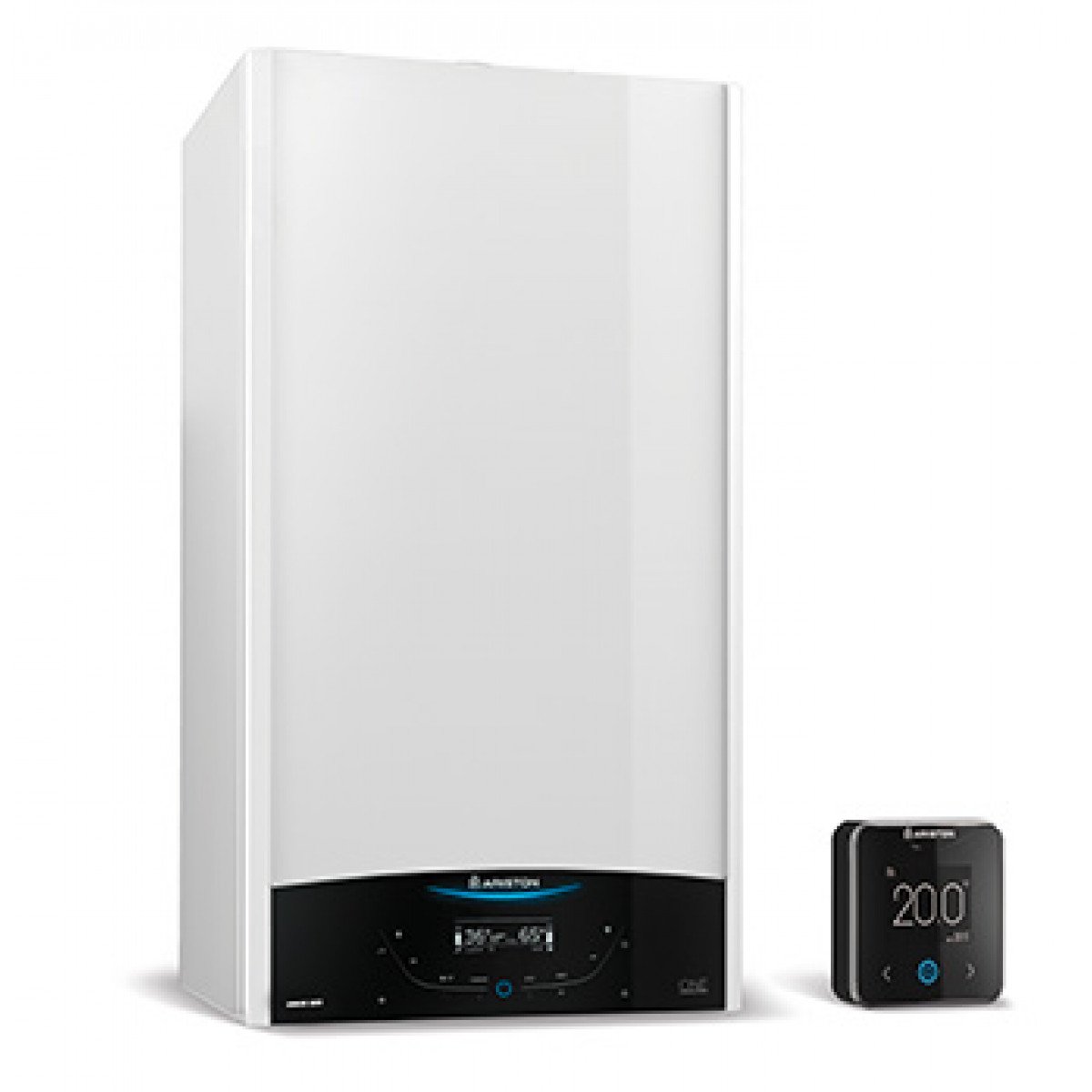

ARISTON GENUS ONE NET 35 KW LPG CONDENSING BOILER COMPLETE WITH SMOKE EXHAUST KIT Split smoke kit, methane/LPG

ATTENTION Methane, LPG and propane air operation without the need for kits. The transformation occurs thanks to the combustion control by selecting the type of gas from the technical menu. For information, contact your local authorized assistance center in advance

ARISTON GENUS ONE NET 35 KW LPG CONDENSING BOILER COMPLETE WITH FUEL EXHAUST KIT

---

Technical features

• Heating energy class: A
• Energy class in sanitary ware: A
• Profile: XXL
• Airtight forced draft chamber

Energy data:

• Nominal heat input in heating (max/min): 31.0/3.5 kw
• Nominal heat input in domestic hot water (max/min): 34.5/3.5 kw
• Thermal power (max/min) from 80° C - 60° C: 30.3/3.3 kw
• Thermal power (max/min) from 50° C - 30° C: 33.5/3.6 kW
• Thermal power (max/min) DHW: 33.1/3.4 kW

Performance Stars: 4****

• Expansion vessel pressure: 1 bar
• Max pressure: 3 bar
• Expansion tank capacity 8 l
• High temperature range (min.max): 35/82 °C
• Low temperature range (min/max): 20/45 °C

Exercise performance in healthcare:

• Min/max domestic hot water temperature: 36/60 °C
• Specific flow rate (10 min. with ∆T=30°C): 16.5 litres/min
• Quantity of hot water ∆T=25°C: 19.8 litres/min
• Quantity of hot water ∆T=35°C: 14.1 litres/min

Comfort performance stars (EN13203) ★★★

• Power supply voltage/frequency V/Hz 230 / 50
• Minimum ambient temperature for use: >0°C
• Power consumption: 82W;
• Electrical protection: IP X5D;
• Exhaust: 80, 60, 50 mm;
• Power supply: LPG (G31, Propane)

The new generation Ariston condensing boiler is the perfect mix of innovation and maximum comfort at your fingertips, in fact by connecting the appliance (also thanks to the Cube S NET, the room thermostat with integrated connectivity) to your smartphone or tablet via the specific app downloadable for both IOS or Android, the efficiency of the boiler connected to your smartphone gives the maximum desired comfort. Installation in partially protected places or with appropriate boiler covers is recommended for the need for outdoor installation to best protect the appliance. Equipped with a large display with backlit touch interface to view correct operation and adjustment or in the event of boiler malfunction for rapid intervention by authorized personnel. To always have domestic water ready, the Genus One Net Boiler works with a high efficiency continuously modulating circulator (ratio 1:10) so as to quickly respond to the user's needs. Finally, the boiler is extremely silent, guaranteeing minimal acoustic disturbance, guaranteeing a lower number of boiler on and off cycles and a new silencer and sound-absorbing panels that allow minimal noise.

Advantages:

• Prepared for integration into system configuration through the new Bridgenet® Bus communication protocol;
• Provision for multi-zone and multi-temperature thermoregulation;
• Preparation for management of solar systems;

Functions:

• Auto and comfort function;
• Stainless steel isothermal primary exchanger;
• Increased sanitary exchanger;
• Ignition system;
• electronic combustion control;
• Gas transformation from the technical menu;
• Cold water inlet and heating return filters;

Dimensions : (HxWxD) 745x440x385mm; Weight: 37.6 kg;

---

Product Warranty : All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: Ariston
• metri quadri : 250
• modello: ARI3301776_gpl/met
• potenza in kw: 35
• potenza nominale: 35
• superficie riscaldabile mq: 250
