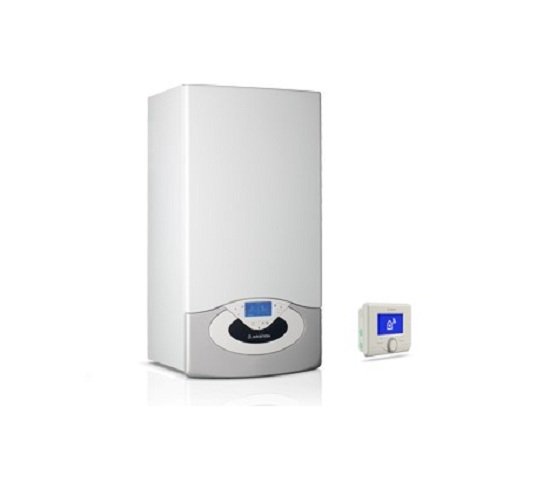

ARISTON GENUS PREMIUM NET 24 SMART Wi-Fi CONDENSING BOILER COMPLETE WITH METHANE - ErP SMOKE KIT Split smoke kit

ARISTON GENUS PREMIUM NET 24 SMART CONDENSING Wi-Fi COMPLETE WITH METHANE - ErP SMOKE KIT

---

Technical features

Product code: 3300905
Energy label specifications according to the European ErP directive

• Class A heating energy efficiency
• DHW energy efficiency profile XL Class A
• Heating/DHW operation characteristics:
• For heating and domestic hot water production
• Forced draft sealed chamber
• Nominal heat input in heating max/min kW 22/2.5
• Max/min heating thermal power (80°C-60°C) kW 21.5/2.4
• Efficiency at nominal heat input (60/80°C) % 97.8
• Efficiency at nominal heat input (30/50°C) % 106.2
• Efficiency at 30% at 30°C % 109
• Performance stars (dir. 92/42/EEC) ★★★★

• Min/max heating temperature (high temperature range) °C 35/82
• Min/max heating temperature (low temperature range)°C 20/45
• Specific flow rate in DHW (10 min. with ∆T=30°C) litres/min 12.2
• Quantity of hot water ∆T=25°C litres/min 14.56
• Quantity of hot water ∆T=35°C litres/min 10.4
• Comfort performance stars (EN13203) ★★★
• Power supply voltage/frequency V/Hz 230 / 50
• Total electrical power absorbed W 70
• Degrees of protection for the electrical system IP X5D
• Dimensions (H x W x D) 770/400/315 mm
• METHANE fueled

Genus Premium NET

The top of the range condensing boiler, complete with connectivity service.

• The Genus Premium NET wall-mounted boiler, in addition to being the maximum expression of the Ariston range, is already ready to use the connectivity service. Thanks to condensation technology, by recovering the energy of exhaust fumes, it generates an increase in heating power which allows us to eliminate waste (of energy) and obtain higher thermal efficiency than conventional boilers. Genus Premium Evo offers even greater performance thanks to the innovative technology that allows it to self-regulate based on changes in the external and internal temperature of the environment, allowing energy savings of up to 35% compared to an old generation boiler.
• It is available in the heating and domestic hot water production version in 2 powers: 24-35 kW.

Characteristics:

• Can be installed in partially protected places
• Large backlit dot matrix screen
• Continuously modulating high efficiency circulator
• Modulation ratio 1:10
• Acoustic comfort guaranteed by the lower number of boiler on and off cycles, new silencer and sound-absorbing panels
• Prepared for integration into system configuration through the new Bridgenet® Bus communication protocol
• Provision for multi-zone and multi-temperature thermoregulation
• Preparation for management of solar systems
• Auto and comfort function
• Stainless steel isothermal primary exchanger
• Increased sanitary exchanger
• Cold water inlet and heating return filters
• 60mm split exhaust

+ COMFORT: The system manager constantly monitors the room temperature even if you are away from home. No more surprises when you return!

+ SAVINGS: It is possible to synchronize the temperature of your home with the rhythms of your life, avoiding unnecessary switching on of the boiler. Lower consumption on your bill, less stress for your system!

+ RELIABILITY: Your trusted TAC will constantly assist you by monitoring the performance and correct functioning of your system. Serenity will always be by your side

THREE SIMPLE STEPS TO GET THE MAXIMUM BENEFITS FROM THE INNOVATIVE PACKAGE

• 1. RECEIVE THE BOILER COMPLETE WITH CONNECTIVITY KIT DIRECTLY AT YOUR HOME
• 2. DOWNLOAD THE FREE APP TO MANAGE THE SYSTEM EVEN AWAY FROM HOME
• 3. CHOOSE THE TRUSTED CAT FOR CONSTANT ASSISTANCE AND TO ENSURE OPTIMAL PERFORMANCE AT ALL TIMES

Comfort and savings within reach of your smartphone, one more reason to switch to AristonNet!

---

Ariston condensing boilers

1 condensing boiler = -737kg CO2/year 1 condensing boiler = 60 more trees

• Along with heat, a traditional boiler also produces water in the form of steam, usually evacuated through the exhaust fumes. Normal boilers, by not treating these fumes before releasing them into the environment, therefore have a thermal efficiency based exclusively on the lower calorific value. The water vapor is not recovered in any way, thus dispersing part of the energy produced during combustion. Condensation is the physical process that, inside the boiler, transforms water from vapor to liquid again. CLAS PREMIUM EVO, exploits the phenomenon of condensation in its favor by reusing the energy of the exhaust fumes and increases the useful calorific value, thus reaching a thermal efficiency of over 107%. Furthermore, during this process, most of the harmful combustion products for the environment and health, they are eliminated together with the condensation water.

Constant convenience

• The new products, using condensation technology, eliminate waste with great energy and economic savings. Thanks to the savings on the bill, it takes less than three years to amortize the higher cost of a condensing boiler. Then the lower consumption translates into a real profit. Imagine what a bill lowered by up to 35% every year, for many years, means for your economies...

Zero waste only advantages

Today Ariston combines energy savings with fiscal savings, offering a great opportunity to those who have chosen to replace their old boiler with a condensing one. The Finance Law provides, in fact, specific tax incentives in favor of taxpayers.

EVO: energy saving becomes reality, for everyone's well-being

• Among the measures aimed at reducing the energy consumption of buildings (European Directive 2010/30/EC), the Italian legislation has introduced "The obligation of the building energy certificate" in the sales of new and existing buildings. They have also been extended until to the end of June 2013, bringing them to a value of 50%, the "tax credit deductions relating to building renovations and energy efficiency interventions". In order to achieve the national objectives set for covering consumption through renewable energy sources (European Directive 2009/28/EC), "the use of heating systems running on renewable energy" is also required and promoted. With the EVO range, Ariston responds to all the indications required to have "low energy consumption buildings", guaranteeing optimal integration with systems using renewable energy.

•

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: Ariston
• metri quadri : 120
• modello: CALD_1929
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
