Description
Description
ATTENTION THE BOILER IS DESIGNED WITH METHANE. THEREFORE, THE STANDARD TRANSFORMATION KIT WILL BE SUPPLIED. FOR INFORMATION, CONTACT YOUR LOCAL AUTHORIZED ASSISTANCE CENTER IN ADVANCE

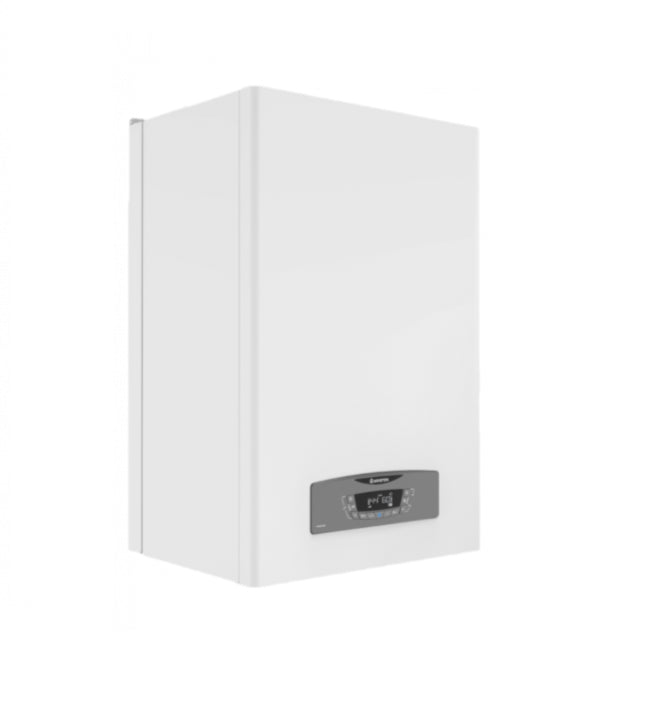

Ariston Condensing Boiler CLAS B ONE 25 Methane or LPG 40 lt storage complete with fume exhaust kit cod. 3301211
- Product code: 3301211
Energy label specifications according to the European ErP directive
- Class A heating energy efficiency
- DHW energy efficiency profile XL Class A
Heating/DHW operation characteristics :
- Nominal heat input max/min (heating) PCI: 22.0-3.7 kW
- Nominal heat input max/min (DHW) PCI: 26.0-3.7 kW
- Max/min useful thermal power (heating): 21.5-3.5 kW
- Efficiency at nominal heat input (60/80°C) PCI: 97.7%
- Efficiency at nominal heat input (30/50°C) PCI: 106.1%
- Efficiency at 30% (30° C) PCI: 109.8%
- Max/min heating temperature (high temperature): 82-35°C
- Max/min heating temperature (low temperature): 45-20°C
- Max/min domestic hot water temperature: 65-40°C
- Quantity of hot water (deltaT 25°C): 22.6 l/min
- Quantity of hot water (deltaT 35°C): 16.1 l/min
- Specific flow rate (first 10' with deltaT 30°C): 18.8 l/min
- Minimum operating temperature > 0°C
- Modulation ratio 1:7
- Power supply voltage/frequency V/Hz 230-50
- Total electrical power absorbed: 85.6W
- Degree of protection of the electrical system IP X5D
- Dimensions 24 kW mm (HxWxD) 900 x 600 x 474
- Fuel: Methane or LPG
- Standard LPG conversion kit
Functionality:
- XtraTech™ stainless steel primary exchanger
- AUTO, Comfort functions
- Internal Installation
CLASS B ONE
- Ariston exclusive XtraTech™ stainless steel exchanger, with high head
- Exchanger passage sections +142% compared to the previous version
- LCD display
- 2 20 liter stainless steel stratification boilers
- Class A+ in heating achievable with thermoregulation
- Modulation ratio 1:7
- BusBridgeNet® communication protocol
- Optimized boiler heating logic
- AUTO and Comfort function
- Prepared for sanitary recirculation
- Smoke outlet 80, 60, 50 mm
Made in Italy Produced entirely in Italy.
Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: Methane/LPG
- marca: Ariston
- metri quadri : 150
- modello: 3301211
- potenza in kw: 25
- potenza nominale: 25
- superficie riscaldabile mq: 150
- tipologia : Ad accumulo
