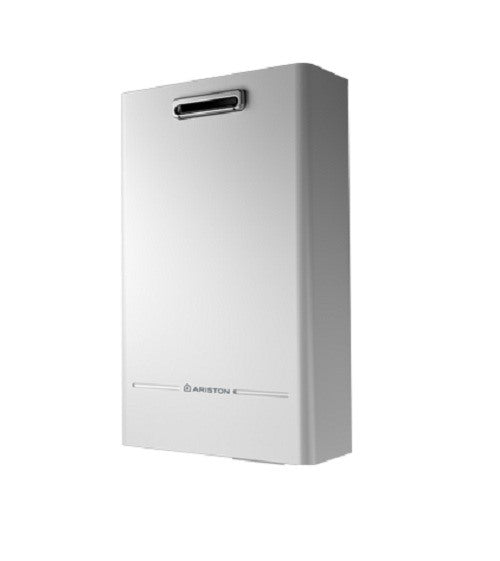

Ariston Next Outdoor 24 eu open chamber methane water heater - NEW ErP

ARISTON NEXT OUTDOOR 24 EU MET GAS WATER HEATER - new ErP model

---

• Product code: 3632260

Energy label specifications according to the European ErP directive

• Energy efficiency: Class B
• Load profile: XXL profile

Heating/DHW operation characteristics:

• CE certification (pin) 0051CM4090
• Category II 2H3P
• Nominal heat output kW 42.3
• Minimum heat output kW 7.2
• Modulation range 1: 5.9
• Nominal heat input kW 47
• Selectable min/max temperature 35-70
• Maximum nominal pressure 8.5 bar
• Minimum operating pressure 0.1 bar
• Minimum operating flow rate l/min > 3.8
• Flow rate (ΔT 25°C) l/min 24
• Supply voltage (frequency 50 HZ) V 230-50
• Maximum absorbed power W 63
• Minimum ambient temperature of use °C -20
• Electrical protection type IPX5D
• Dimensions (HxWxD): 582 x 375 x 160 mm
• Weight: 17.5kg
• Fuel: LPG or methane

---

Next Outdoor EU

The generation of gas water heaters for outdoor use

Next Outdoor, the new instantaneous outdoor gas water heater. Characterized by an exclusive design, small dimensions (only 13 cm deep!) and new features.

Next outdoor offers maximum temperature stability thanks to the electronic modulation of the gas and the fan, the wide modulation ratio between the maximum and minimum power, and the automatic water flow regulator. With the bathroom function, Next outdoor allows you to have the ideal quantity and temperature for maximum relaxation.

Thanks to the introduction of the 20 and 24 l/min PROFESSIONAL models, the Ariston range for the outdoor version is completed, without however giving up an attractive design and the compactness that distinguishes it on the market. The Next Outdoor, thanks to remote control, has all the functions at hand and its small size makes it easily adaptable to any type of outdoor environment. Furthermore, thanks to the models of the new PROFESSIONAL range (20 and 24 l/min) it is able to manage up to a maximum of 5 products in cascade.

Next Outdoor is the most efficient in its category and can also be integrated with solar systems. Thanks to the kit with thermostatic valve, the NEXT OUTDOOR is designed for integration and management of solar systems. An ecological and clean solution to avoid waste and encourage energy saving.

Characteristics:

• External installation type A3
• It does not require a fume exhaust system
• Remote control as standard: with the remote control it is possible to change the temperature from anywhere in the house
• Electronic ignition (220 v) with ionization flame sensor and consequent gas savings of up to 25%
• Maximum efficiency > 90%
• Modulation ratio 1:6
• Automatic flow regulator with stepper motor
• Electronic thermostatic modulation for precise temperature control
• Minimum activation pressure at 0.1 bar
• Standard anti-freeze function: up to -20°
• Cascade solution for up to 5 products (only with models 20 and 24)
• Integration with solar thermal via thermostatic valve
• Small size
• Absolute safety thanks to IPX5D electrical protection

---

Product Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
