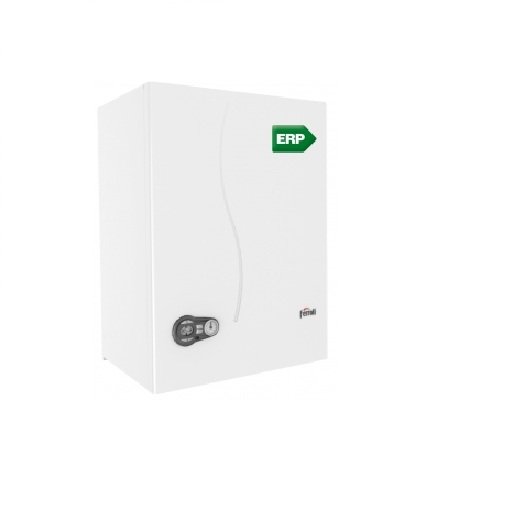

FERROLI BLUEHELIX K 50 32 Kw LPG CONDENSING GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT - NEW ErP Split flue kit, LPG

FERROLI BLUEHELIX K 50 32 Kw LPG CONDENSING GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT - NEW ErP

---

Technical features

• Product code: 20133714
• Energy label specifications according to the European ErP directive
• Class A heating energy efficiency
• DHW energy efficiency profile XL Class A
• Heating/DHW performance
• Sanitary nominal heat output kW 25.00
• Nominal domestic heat output kW 26.25
• Nominal heat input Heating kW 20.00
• Nominal thermal power Heating (80°/60°) kW 19.48
• Useful efficiency Pn max - Pn min (80°/60°): 97.4 - 97.1%
• Useful efficiency 30% Pn max (30th return): 108%
• Total electrical power (max heating/DHW power): 87/97 W
• Supply voltage V-Hz 230-50
• IP X5D protection rating
• Warm-up exercise
• Maximum pressure: 3 bar
• Minimum pressure for standard operation: 0.25-0.45 bar
• H2O heating temperature selection range: 20/45 ÷ 40/80 °C
• Pump: maximum head available for the system: 390 mbar
• at a flow rate of 1,000 l/h
• Membrane expansion vessel: 10 lt
• Healthcare exercise
• Max-min pressure: 0.15/8bar
• Quantity of hot water:
• - with Δt 25° C l/min 15.1
• - with Δt 30° C l/min 12.5
• - with Δt 35° C l/min 10.8
• Minimum domestic hot water flow rate l/min 2
• Domestic H2O temperature selection range °C 37-60

Dimensions

• Dimensions (hxwxd) 740 x 470 x 275 mm; 35 kg
• NOx class: 6
• Fuel: METHANE/LPG
• Dedicated codes are no longer necessary in the case of LPG because the new Family is able to automatically adapt its operation to the type of fuel

General characteristics

New Family: the best ever:

• The new Family is the Riello solution for the most demanding user. The primary exchanger, entirely made of stainless steel, guarantees maximum efficiency and reliability over time and the new optimized sanitary exchanger ensures exceptional comfort and the best class of merit (class A). The new Family is available with powers of 25, 30 and 35 kW, in combined instantaneous and heating only versions.
• ACC self-adaptive electronic combustion control
• Range Rated Homologation
• Possibility of integration into hybrid systems via integrated ModBus protocol
• New panel with color display and intelligent system filling function
• 10 liter expansion tank
• Modulating circulator with high head and low consumption
• Modulation ratio 1:8
• Standard flue flange with dedicated flue
• Clapet valve and SRD device as standard
• Thermoregulation as standard in combination with the external probe, available as an accessory
• Possibility of recessed installation (model 25 KIS) and outdoors in partially protected places (IPX5D)
• Mounting template, hydraulic fittings, electrical power cable and hole closing cap for remote interface supplied
• REC10 remote control kit in the room supplied
• Hydraulic fittings with gas and cold water tap sectioning system taps supplied
• Easy installation and wide choice of accessories

---

New stainless steel primary exchanger

• Riello has always designed its products with care and dedication.
• Continuous improvement today leads to the evolution of the Family condensing range, starting from its primary element: the exchanger. The new Family exchanger is made of stainless steel, with a smooth high-section tube to guarantee the best efficiency and cleanliness over time. Access remains frontal, to facilitate maintenance operations.

FAMILY IS AVAILABLE IN 3 POWERS, IN COMBINED VERSIONS (KIS) AND HEATING ONLY (IS)

• FAMILY 25 - KIS AND IS VERSION
• FAMILY 30 - KIS VERSION
• FAMILY 35 - KIS AND IS VERSION

Dedicated codes are no longer necessary in the case of LPG because the new Family is able to automatically adapt its operation to the type of fuel. The features of Family and its compact dimensions make it the ideal solution for both indoor and built-in installation (25 kW model) or outdoors in a partially protected place.

---

• Even clearer, more intuitive and easier to use, it integrates elegantly into the aesthetics of the machine.
• The large backlit display, the raised buttons and the interface enriched with explanatory texts and icons help the user and installer in navigation.
• Through the panel it is possible to view the operating status, carry out programming and access boiler and system regulation.
• The RiCLOUD intelligent remote control allows you to manage the comfort of your home in a simple and intuitive way, even when away from home. Through the dedicated app it is possible to control the status of the heating system, but also program the boiler's switching on, off, temperature and operating times directly from your smartphone or tablet. It is possible to manage up to 8 different zones, each controlled by its own RiCLOUD. RiCLOUD can also be installed in total wireless mode via a radio frequency receiver, available as an accessory, thus avoiding any electrical and building work.
• Intelligent system loading
• Through the panel it is possible to independently load the system if the pressure drops below the minimum reference value.
• Information display
• In addition to the date and time, the display shows the fundamental information relating to the operation of the boiler: the water delivery temperature and the system pressure. The boiler also warns you of the need to carry out scheduled maintenance via an icon on the display.
• Programming
• Best programming the operation of the boiler according to your needs is easy and intuitive. From the panel it is possible to carry out hourly and daily programming for each system zone.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: Ferroli
• metri quadri : 220
• modello: CALD_2410G
• potenza in kw: 32
• potenza nominale: 32
• superficie riscaldabile mq: 220
