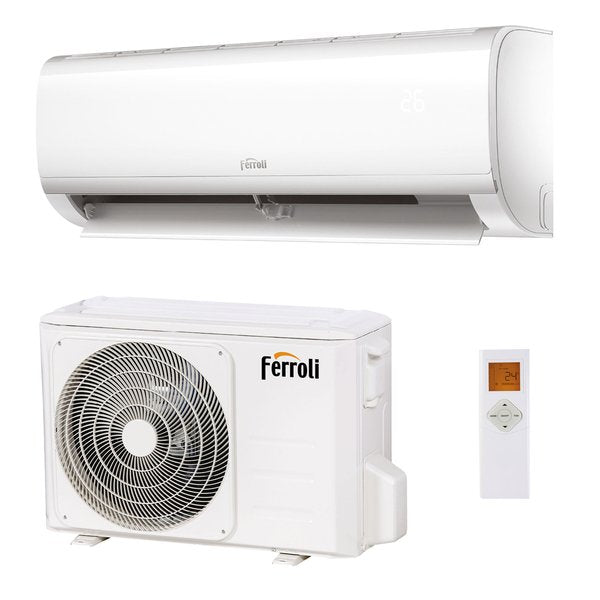

Ferroli DIAMANT PLUS S Inverter Air Conditioner 24000 Btu R-32 Integrated Wi-Fi - New

• INDOOR UNIT CODE 2CO9B04F
• OUTDOOR UNIT 2CO9A23F
• BTU power: 24000

Energy efficiency:

• Cooling capacity (1) Nominal W 7040
• Thermal power (2) Nominal W 7330
• Cold ERP class A++
• Hot ERP class A+

Performance:

• Sound pressure (3) Max-Med-Min-Slo dB(A) 44.5 / 42 / 34.5 / 28
• Max sound power dB(A) 59
• External unit sound pressure (3) dB(A) 59.5
• External unit sound power dB(A) 67
• Liquid line connections “ 3/8
• “5/8” gas line connections

• Power (V/Hz/Φ): 230/50/1

Characteristics:

• Refrigerant gas: R-32

Dimensions:

• Internal Unit WxHxD 1120x310x405 mm
• External Unit WxHxD 965x765x395 mm

DIAMANT PLUS S

> GENERAL FEATURES:

- Ecological refrigerant R32
- Efficiency Class A++ / A+
- Double filtering with “Cold Catalyst” and “Biohepa”
- Remote control with dedicated smartphone app
- Temperature display on the machine's display
- Equipped with direct current inverter technology
- Indoor unit with a particularly attractive and modern design
- Suction grille and filters easily removable to allow quick cleaning
- Automatic recovery in case of voltage failure
- Night operating mode
- “AUTOMATIC” operating mode
- Timer function
- Outdoor unit treated with anti-rust protective substances

NEW AIR... AND CLEAN IN FERROLI

The latest proposal from Ferroli is appreciated for its elegant lines and the compactness of the camera body . It combines design, technology, energy saving, respect for the external environment and that of the home, where Ferroli has always been at the forefront

• Ecological refrigerant R32. It complies with the Montreal protocol, does not damage the ozone layer as it is free of HCFCs
• Infrared remote control for controlling all air conditioning functions
• AUTO operation, automatically activates Cool/Heat operation based on the room temperature and Set Point
• SWING function (motorized deflector flap)
• TURBO Timer function, brings operation to maximum speed for rapid achievement of the SET POINT
• DRY operating mode, accentuates the phenomenon of summer dehumidification
• FAN operation, activates the internal unit in ventilation only
• Memory retention and automatic restart in the event of power failures
• Frost Protection function, sets a minimum anti-freeze safety set point of 8°C
• Self-diagnosis system and description of any anomalies
• Double filtering: “Cold Catalyst” and “Biohepa”
• Remote control with dedicated smartphone app
