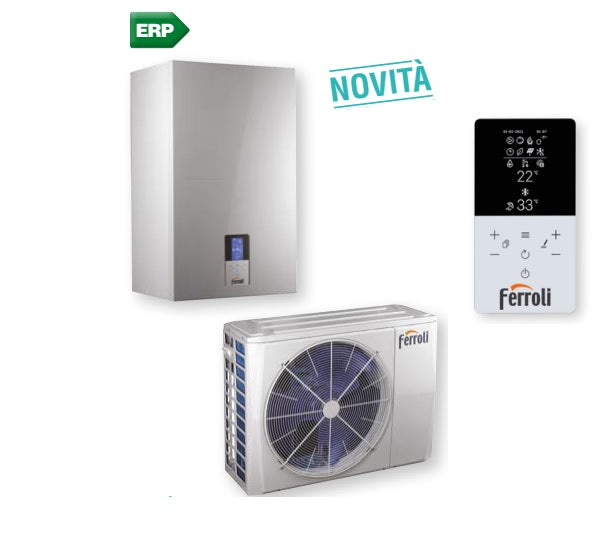

Ferroli Omnia S Hybrid C 6 kW Air/Water Hybrid Heat Pump for split installation with instant DHW production, control included on the machine

Ferroli Omnia S Hybrid C 6 kW Air/Water Hybrid Heat Pump for split installation with instant DHW production, control included on the machine

---

• ERP class in heating A+++
• SCOP (low temperature 35°C) W/W 4.95
• SEER (water produced 7°C) W/W 5.34
• Electrical supply V-ph-Hz 220/240-1-50
• Type and no. compressors - 1 x Twin Rotary DC
• Type of exchanger on plant side / source side - brazed stainless steel plates / finned coil
• 5Nominal heat output kW 6.35§
• Max / min heating flow rate (Hs) kW 27.2 / 3.2
• Max / min heating power (80/60°C) kW 24 / 2.8
• Max / min heating power (50/30°C) kW 26 / 3.1
• Max / min DHW heat output (Hi) kW 28.5 / 2.9
• Max / min DHW heating power kW 28.0 / 2.8
• Efficiency Pmax / Pmin (80-60°C) (Hi) % 98.1 / 98
• Efficiency Pmax / Pmin (50-30°C) (Hi) % 106.1 / 107.5
• Efficiency 30% (Hi) % 109.7
• Max / min heating operating pressure bar 3 / 0.8
• Max / min DHW operating pressure bar 9 / 0.3
• Sanitary flow rate ?t 25°C / 30°C l/min 16.1 / 13.4

---

Omnia S Hybrid C

> GENERAL FEATURES:

The OMNIA S HYBRID C 3.2 hybrid heat pumps integrate the technology of the ecological heat pump in R32 and the condensing boiler with instantaneous domestic hot water production in a single compact product.
The ecological gas R32 manages to combine high efficiency with a reduced environmental impact. Thanks to its GWP of 675, approximately one third compared to the GWP of R410a, it helps reduce CO2 equivalent emissions, the main causes of global warming.
Ferroli Hybrid systems represent the ideal solution for replacing old generators, even on high temperature systems with radiators, thanks to the integration of the boiler.

The compact dimensions similar to those of a wall-mounted boiler make it easy to replace without significant losses of space or heavy renovation work. The internal electronics, by activating the boiler or heat pump as the climatic conditions change, optimizes
the performance of the system by always working in the most economical and efficient ways possible, with great advantages for the user. The boiler will be free to produce instant domestic hot water even during heating or cooling operation of the heat pump, maximizing comfort levels. Furthermore, in the unlikely event there is a blockage of the heat pump, the boiler will be able to function in backup autonomously, guaranteeing heating and domestic hot water.

The system consists of a Full Inverter DC external unit, available in 4 power sizes, associated with a hybrid and condensing internal unit with integrated hydronic module, complete with DC Inverter pump for managing the refrigeration circuit. The system is extremely versatile, capable of working in harsh external climatic conditions down to -20°C, avoiding risks of freezing thanks to the split refrigeration circuit. Wall smoke exhaust in the cases provided for by Legislative Decree 4 July 2014, n. 102.


> OUTDOOR UNIT FEATURES:

- Approved for outdoor operation in a completely uncovered place
- Powered by ecological R32 gas with low environmental impact
- Reduced starting current and noise thanks to Full Inverter technology
- Compressor with twin rotary type DC INVERTER motor on anti-vibration supports and wrapped in a double layer of sound-absorbing material to reduce vibrations and noise to a minimum
- Axial fans with DC brushless motor complete with protection grilles
- External air temperature probe already installed on the unit.

> INDOOR UNIT FEATURES:

- Robust and also suitable for replacements in particularly critical systems
- Combustion module with 1:10 modulation and extra-thick stainless steel exchanger
with increased passages capable of maintaining high efficiency even on old systems with oxidation and
dirt
- Supplied as standard with angled system delivery and return valves (with inspectable filter)
- MGR: Methane, LPG, Propane air Ready, with a simple configuration of the internal unit it is capable
to operate on methane, LPG and propane air without the use of additional kits
- MC2
: Multi Combustion Control, combustion system with patented gas-adaptive technology for one
better adaptability of use as conditions of the gas network change (e.g. fluctuations or reduced pressures)
- FPS: Smoke Protection System. The standard smoke flap valve allows easy connection to systems
pressurized smoke collectives
- Particularly suitable for operation in flues that require ducting
“heavy” thanks to the approval for operation with 50mm diameter flue gas exhausts
- Place of installation: also outdoors in a partially protected place up to -5°C as standard.

> THE CONTROL SYSTEM

- The interface is equipped with Capsense technology with a 2.8" graphic display, which allows the user to interact with
the product in a simple and practical way. The interface on the machine communicates easily with the new systems
intelligent Connect CRP, which can manage up to 8 thermostats (of which 7 Connect CRP Zones) divided
in 2 zones, one direct and one mixed.
- MODBUS PROTOCOL for intelligent management via any external BMS
- HEATING AND COOLING with Ferroli Full Inverter modulation which allows
the setting of climate curves to improve consumption and user comfort.
- SMART GRID INPUT FROM PHOTOVOLTAIC AND NETWORK Smart Grid contacts for the optimization of consumption and
costs on the bill. For details, please read the manuals
- REMOTE CONTROL VIA APP. Optional with Connect CRP, available for iOS and Android
- SILENT PDC MODE. Reduces the maximum compressor frequency and fan speed, so
to significantly reduce noise.
- ON/OFF and SUMMER/WINTER from external contacts. The unit can be turned on and off via a contact
external, also receiving the summer/winter switching signals (for example from the zone thermostat). The
operation will follow the controller settings
- ECHO. Dedicated setpoint for “Eco” operation. Settable with daily time band
- WEEKLY TIME PROGRAMMING. The Connect CRP (optional) allows differentiated time programming for each day of the week by defining the mode (COLD/HEAT/DHW) and the work set points for each band.

• peso: 200.0 kg
• alimentazione: Single phase
• costospedizionecad: IT104;AD382;AT200;BE216;BG290;HR272;DK405;EE398;FR298;DE213;LV299;LT279;LU175;NL229;PT226;CZ194;SK218;SI219;ES208;SE475;HU179;CH294;
• gas: R-32
• marca: Ferroli
• modello: 0XHK6GWA
• potenza in kw: 6
• tipologia : Splittata
