LG
Garanzia Italiana 24 mesi
Heating energy class: A++
Cooling energy class: A+++
SKU: GALLERY 12+12 21

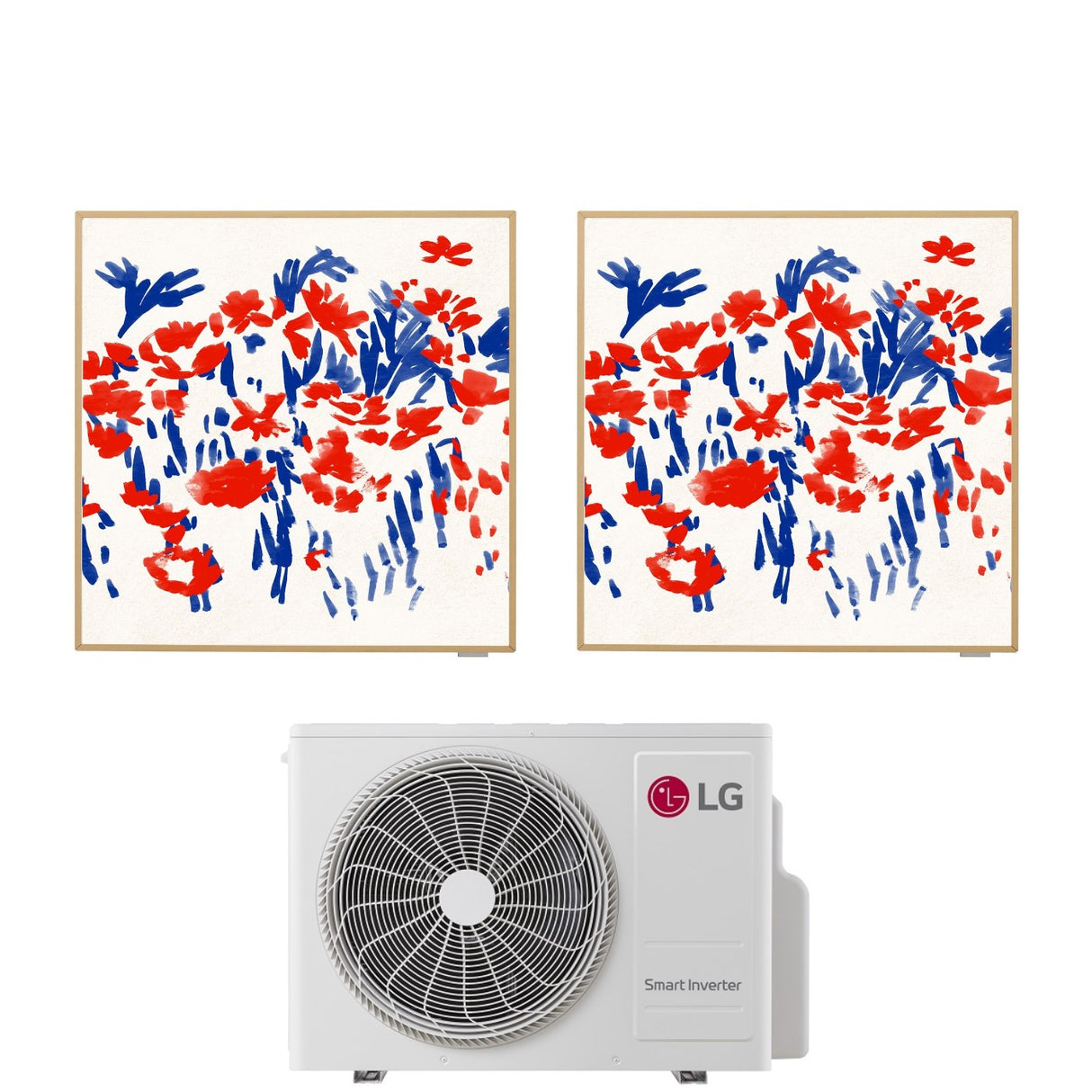

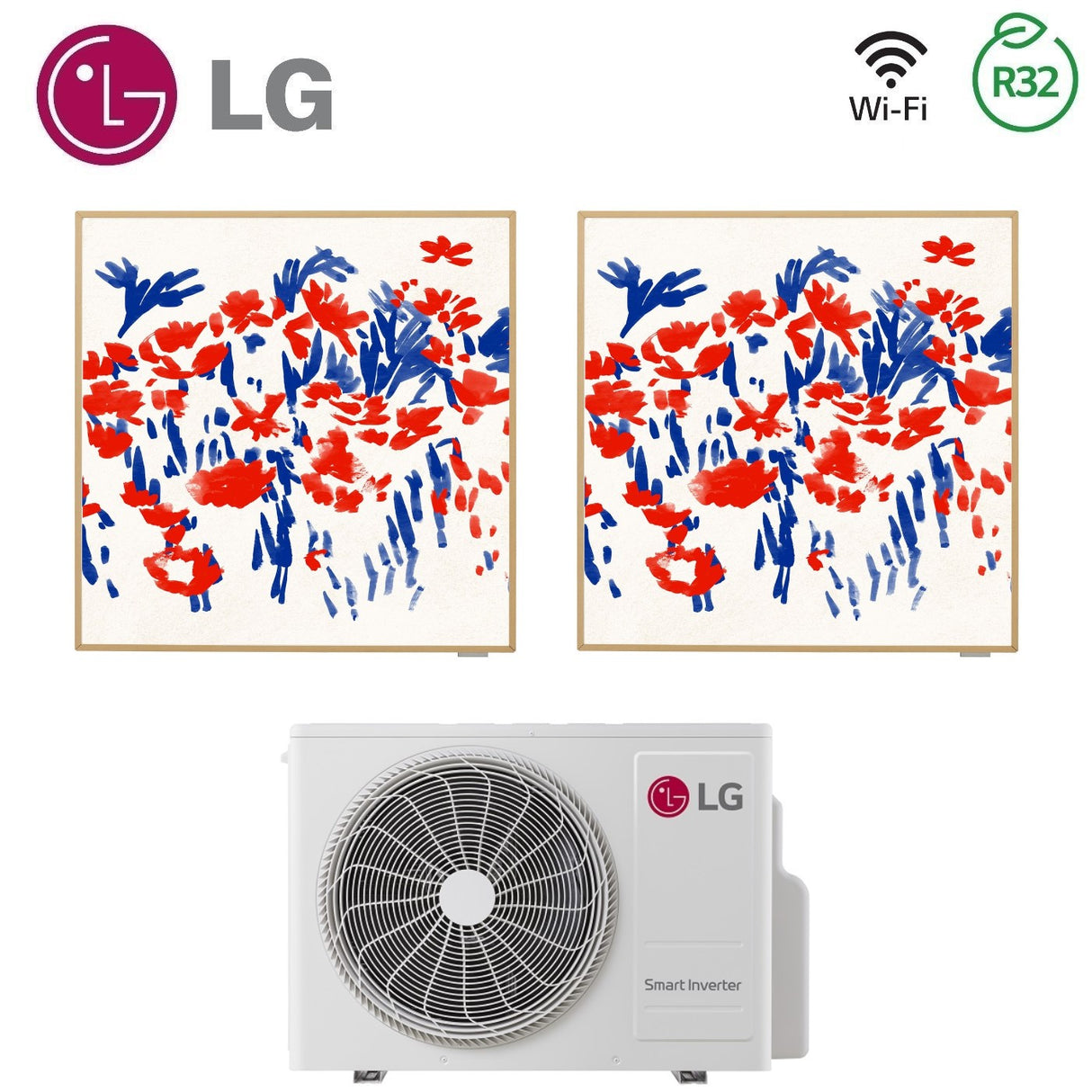

LG Dual Split Inverter Air Conditioner ARTCOOL GALLERY 12+12 series with MU3R21 R-32 Wi-Fi Optional 12000+12000

€2.684,00 VAT included
Tax included Shipping calculated at checkout.

How shipping works

Shipping costs vary depending on the weight and shipping method of the order.

Our shipping services

Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours

Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.


For further details on Premium Shipping, please see the Premium Shipping page.

Customer service

Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.

Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.

Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.

Description

Technical features

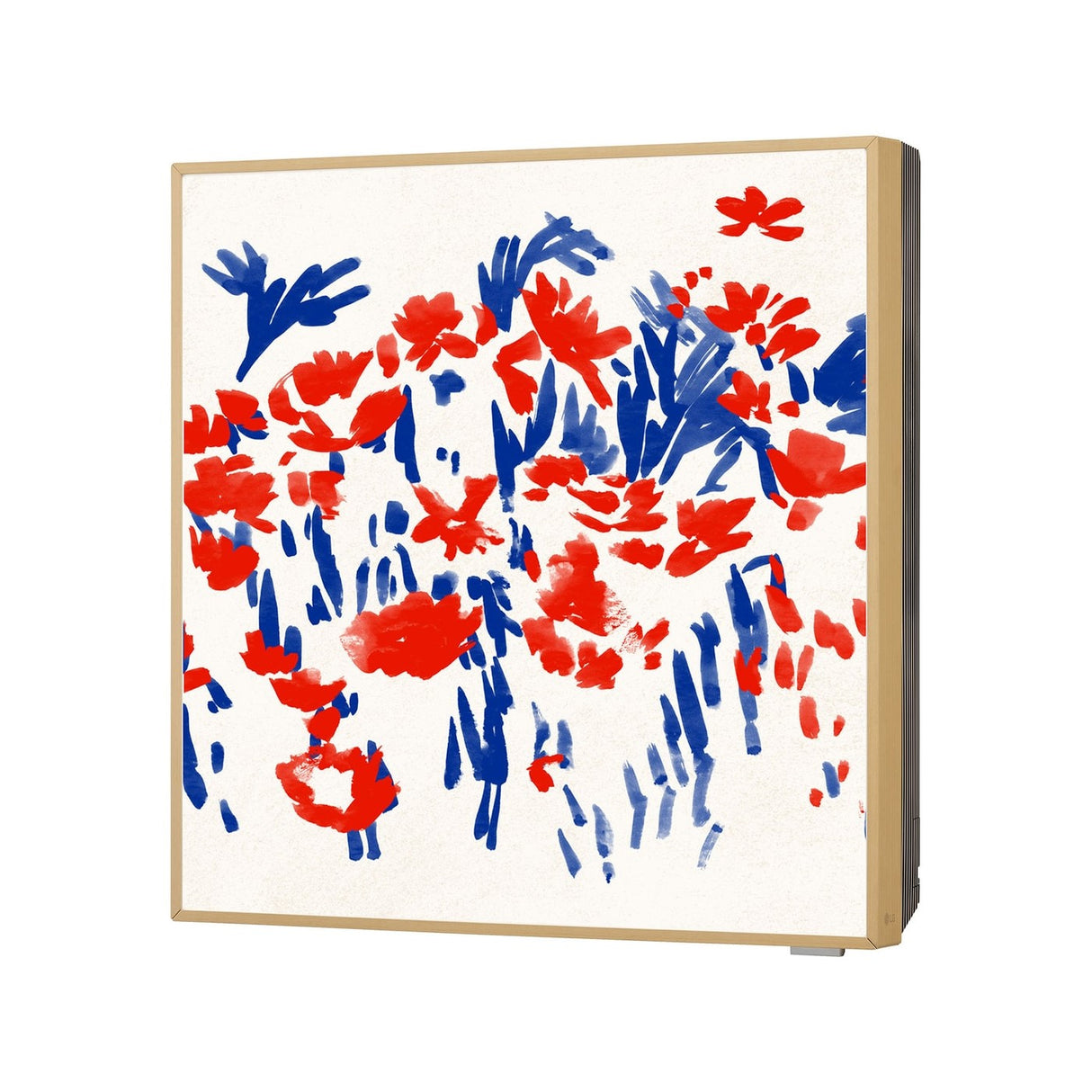

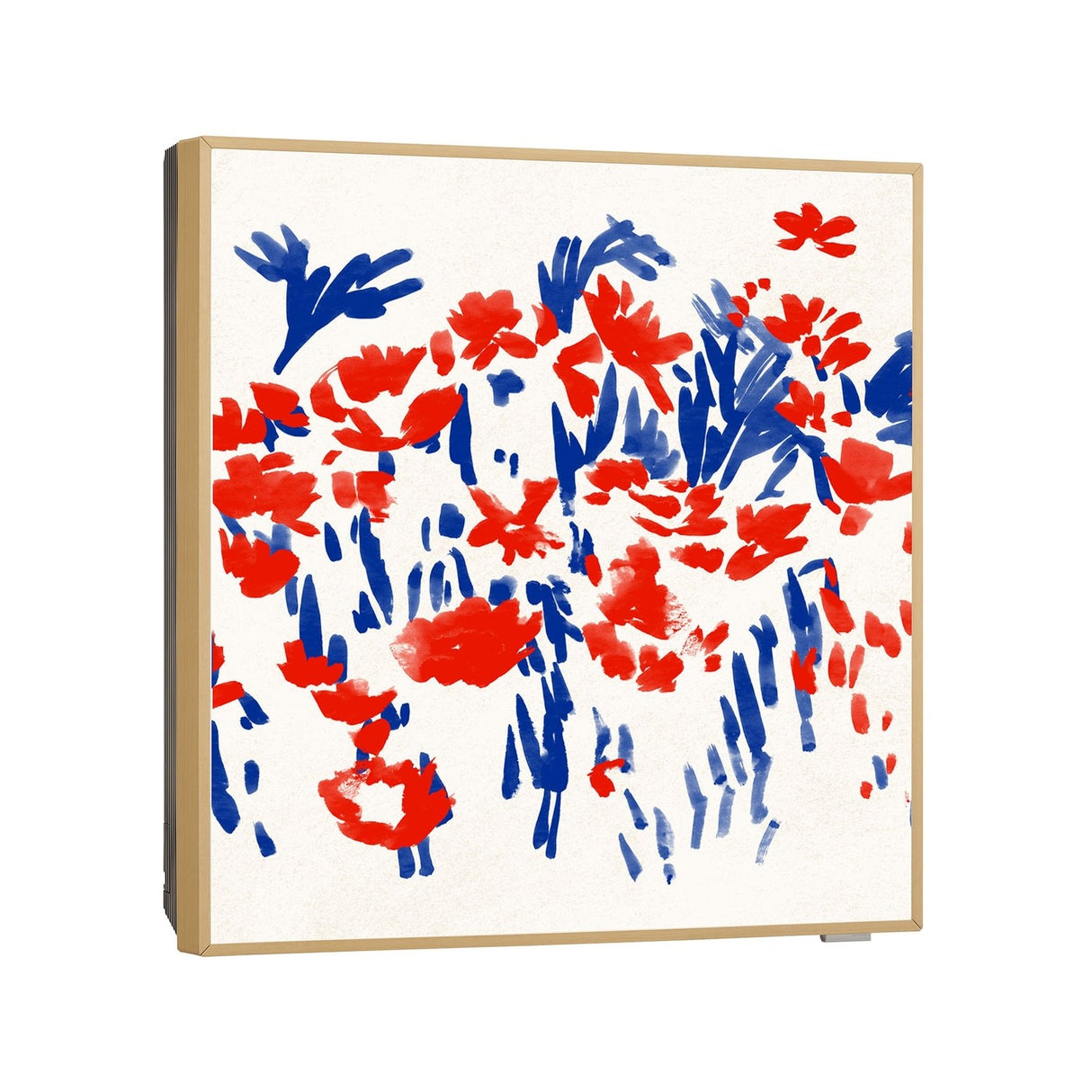

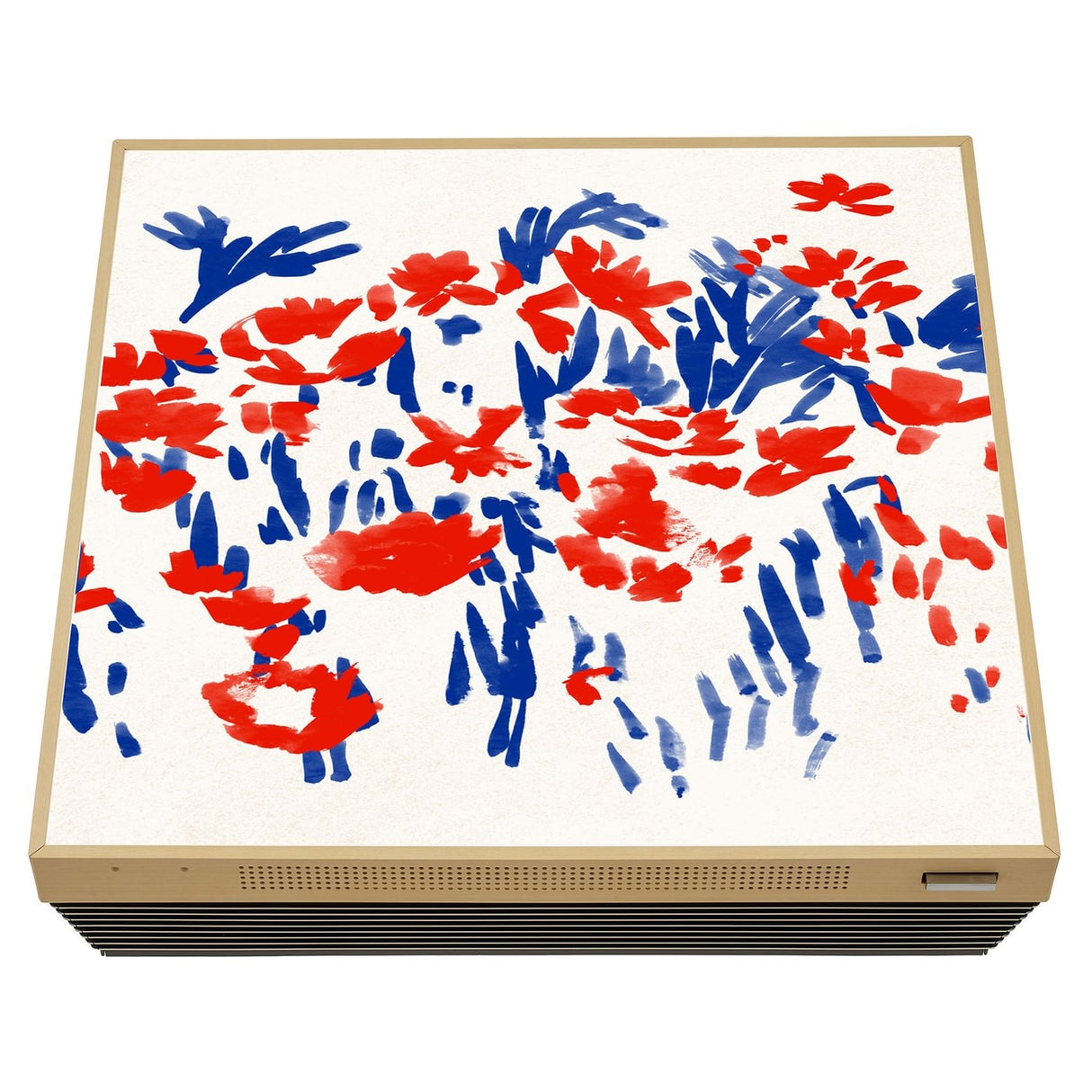

Internal Units

Model
  • Indoor unit catalog code: 2x MA12R NF1
  • Power: 12000 Btu
  • Cooling capacity: 3.5 kW
  • Heating capacity: : 3.9 kW
  • Sound pressure level: 32~38~44 dB(A)
  • Sound power level: 54 dB(A)
  • Liquid pipe diameter: 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Indoor unit dimensions (WxHxD): 600x600x145 mm
  • Indoor unit weight: 15.0 kg

External Unit

  • Outdoor unit catalog code: MU3R21 UL0
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER: 8.50
  • SCOP: 4.21
  • Cooling Energy Efficiency Class: A+++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in cooling: 253 kWh/a
  • Annual energy consumption in heating: 1629 kWh/a

Performance:

  • Cooling capacity: 6.15 kW
  • Heating capacity: 7.03 kW
  • Cooling absorption: 1.44 kW
  • Heating absorption: 1.59 kW
  • Sound power level: 64 dB(A)
  • Sound pressure level: 50 dB(A)

Characteristics:

  • Power (V/Hz/F): 220~240/50/1
  • Refrigerant gas: R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 48°C
  • - Heating: -18° ~ 18°C

Installation data

  • Pipe diameter Liquid: 6.35 mm (1/4") x3
  • Gas pipe diameter: 9.52 mm (3/8") x3
  • Maximum pipe length: 50 m
  • Maximum internal unit / external unit height difference: 15 m

Dimensions:

  • External Unit Dimensions (WxHxD): 870x650x330 mm
  • External Unit Weight: 46.0 Kg

LG Multisplit Systems

LG is among the most important companies in the world for the production of air conditioners.
The range of MULTISPLIT products is characterized by high flexibility, very high energy efficiency and low noise levels.
Multisplit solutions allow you to address both the needs of small residential systems and the needs of commercial spaces.

Quality and Safety Guarantee

LG is extremely attentive to the quality of its products and environmental issues. LG offers on its air conditioners, in addition to the 24-month legal guarantee, an additional 3-year guarantee on compressors, an exclusive formula to let you choose fully
safety. All LG air conditioners have obtained the most important international quality and safety certifications.
All LG air conditioners are made with environmentally friendly technologies and use R-410A refrigerant which does not produce deleterious effects on the ozone layer. The high energy efficiency that characterizes them helps to reduce CO2 emissions.
LG adheres to collective collection systems that guarantee a completely safe disposal service for end-of-life products.

Seasonal energy efficiency
The outdoor units of the new multi-pipe Multi range are characterized by seasonal energy efficiency levels already in line with the European standards in force starting from 2014. The SEER level is higher than 6.10 and will allow these products to obtain the A++ classification for their seasonal cooling energy efficiency. The new Multi range with multiple pipes allows you to reduce energy consumption by 37% (average) compared to the previous series. Multi outdoor units are characterized by extremely high levels of energy efficiency. Thanks to this assumption they contribute very significantly to the reduction of carbon dioxide emissions.
Wide Louver heat exchanger
Thanks to this assumption they contribute very significantly to the reduction of carbon dioxide emissions
The heat exchanger with Wide Louver fins is applied to the external units. The particular processing of the fins allows the exchange capacity of the radiator to be improved by 28% with the same surface area compared to a traditional exchanger.
Wide operating range
The outdoor units in the Multi Pipe range can operate in cooling and heating modes in the most extreme conditions. The presence of the condensation control for the cooling mode as standard equipment makes them compatible with all applications where it is necessary to refresh the air even at low external temperatures (e.g. restaurants, gyms, server rooms).

Pressure controlled operation
The new units in the Multi multiple pipe range operate with a control based on the pressures of the refrigerant in the circuit: this type of control ensures better management of the peripherals contained in the units compared to traditional temperature controls. This control mechanism is more precise and refined, without being negatively affected by external temperature variations. The new technology applied to these products allows the desired results to be obtained in shorter times, to better manage the operation of the compressor at partial load conditions, and to achieve important reductions in
electrical current absorbed.
Wiring error checking function
Thanks to this function, at the end of the installation work it is possible to verify that the electrical and piping connections are correctly associated. Through this control function, which can be activated from the external unit's electronic board, it is possible to achieve a correct and perfectly functioning installation quickly and easily.
Reduced electricity consumption in Stand-by
An innovative function allows the electrical power supply to the system components to be removed during the stand-by phase of the system. In this way, the stand-by electricity consumption of the new multi-pipe Multi outdoor units is 90% lower than the previous versions.

Reduced sound level

The adoption of a new fan protection grille and the use of fans with details specifically designed for aerodynamic optimization have allowed a reduction in the noise level of the external units in the order of approximately 2 dB(A) at nominal conditions of detection.

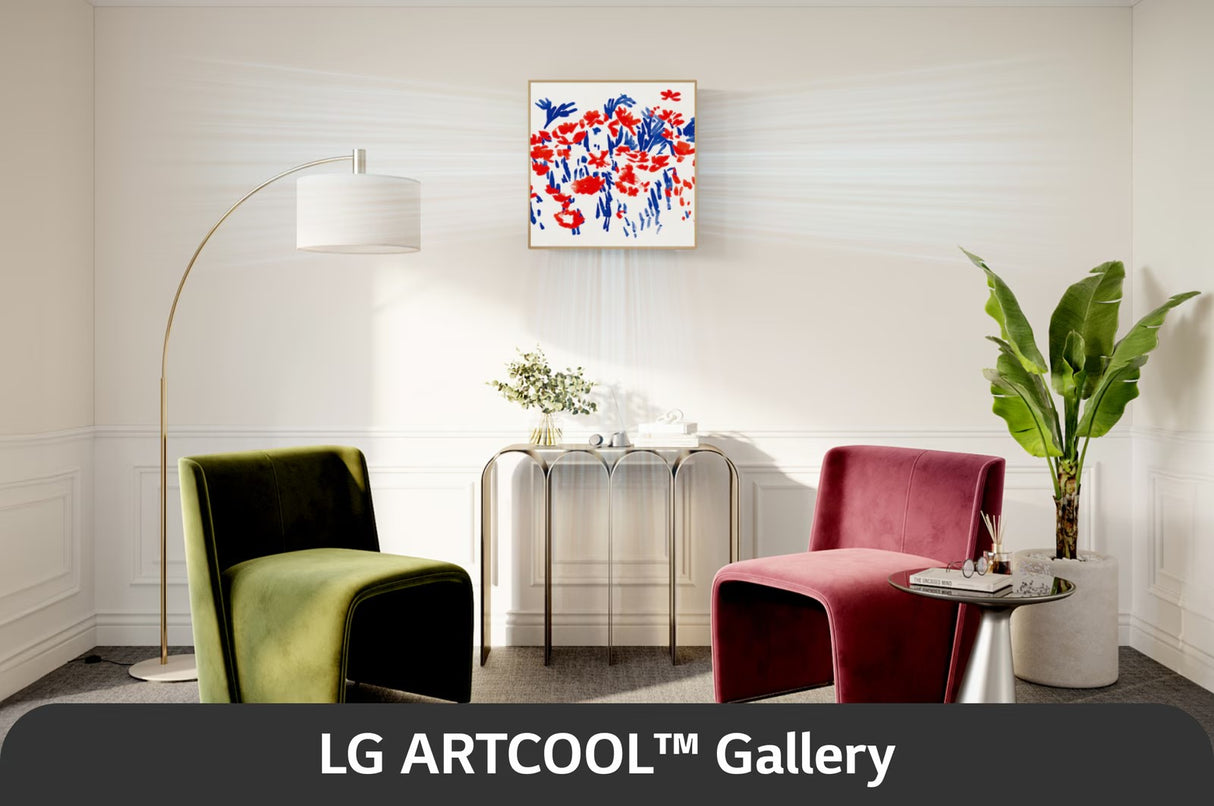

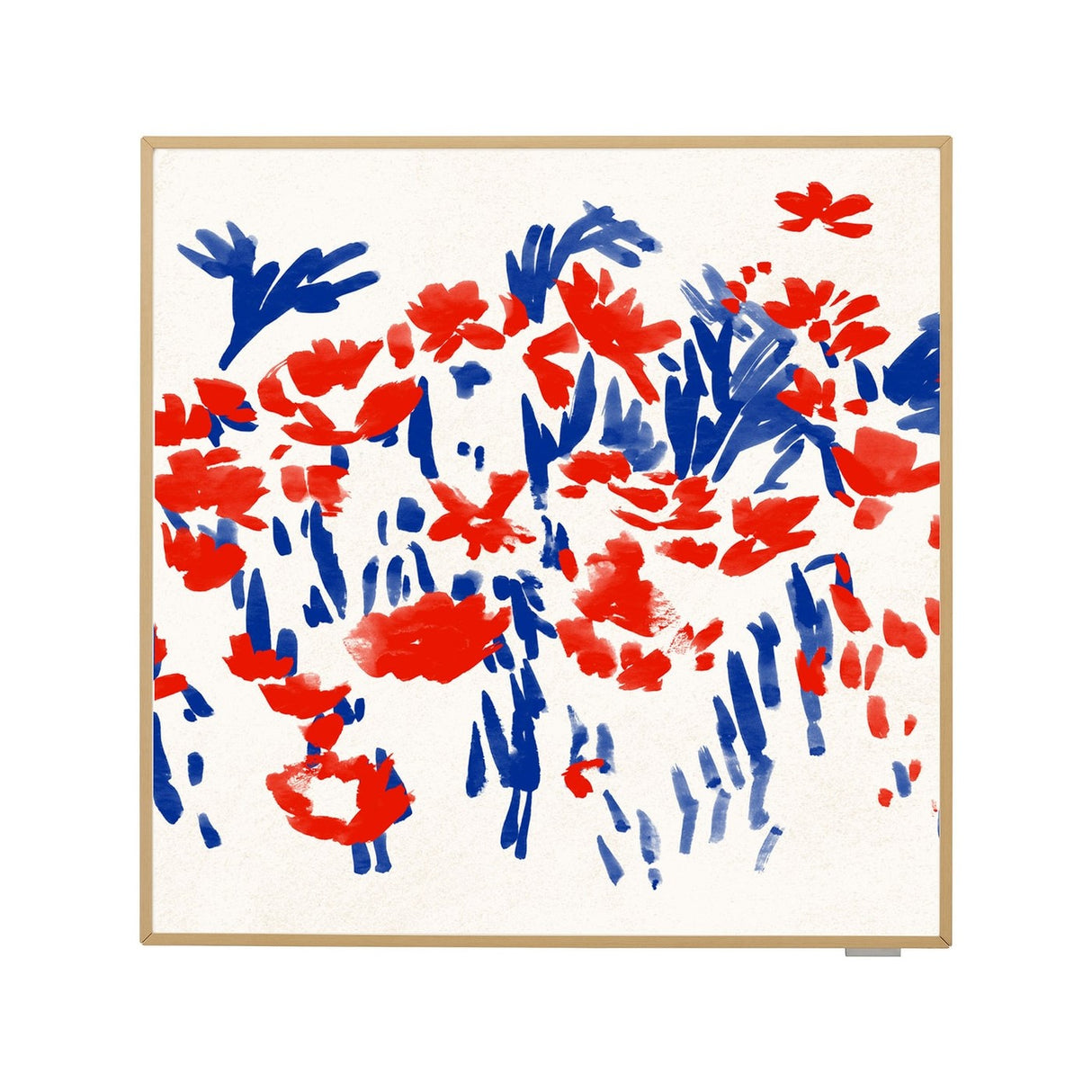

A Unique Design

The LG ARTCOOL Gallery air conditioner is designed to harmonize with your interior thanks to its elegant and innovative design. You can easily edit the image placed on the front panel to create a space that perfectly matches your tastes and desires

Design

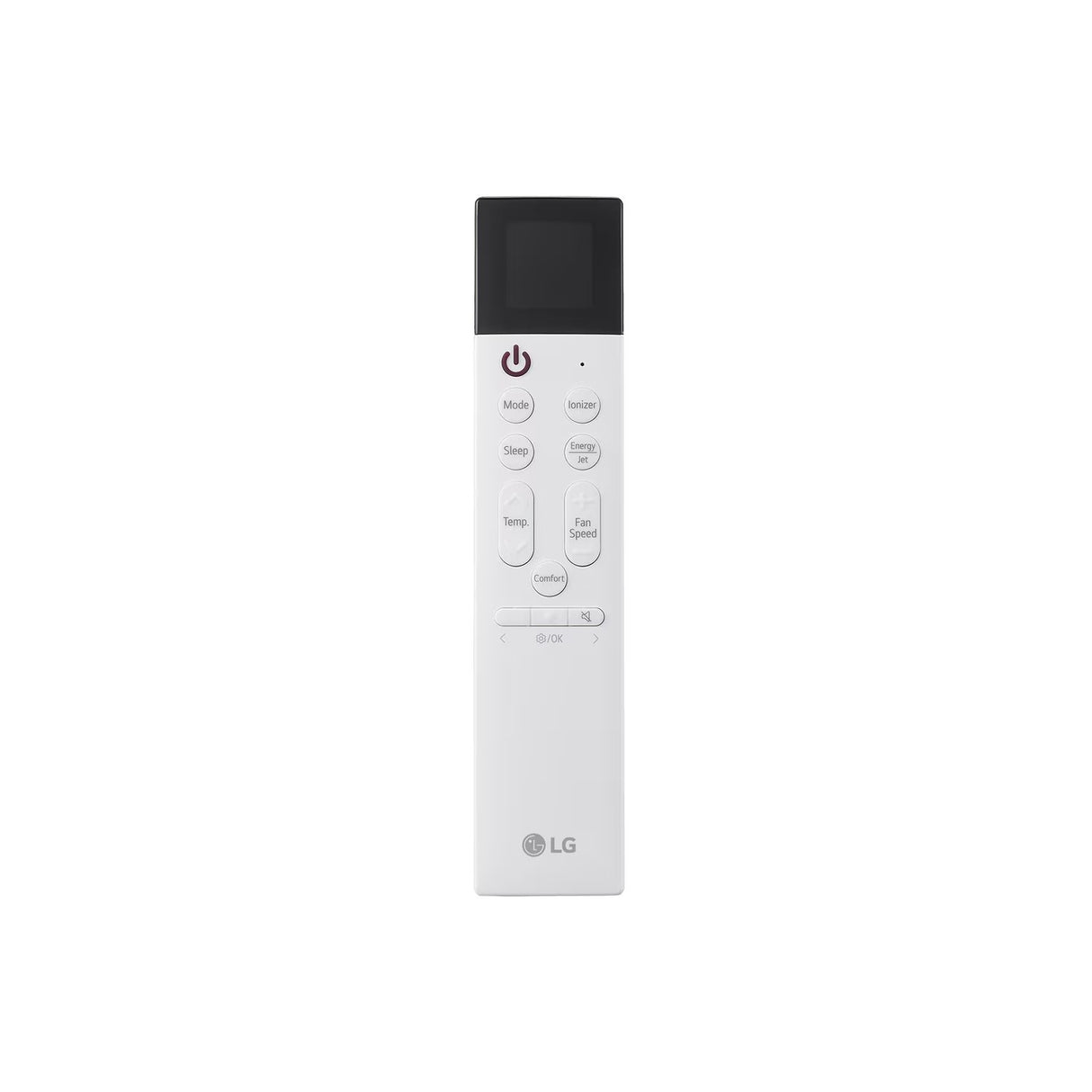

Remote control

Wherever you are, with the LG ThinQ app you can turn the air conditioner on or off, change operating modes and set the desired temperature. You can also use voice commands through Google Assistant.*

ThinQ

Maximum silence

LG air conditioners ensure reduced noise thanks to the special Skew Fan and the Inverter compressor, which eliminate unnecessary noise and allow the product to operate as silently as possible.

Massima silenziosità

Comfortable heating

During the winter season, LG air conditioners keep your home warm, thanks to the compressor with Dual Inverter technology.

Riscaldamento Confortevole

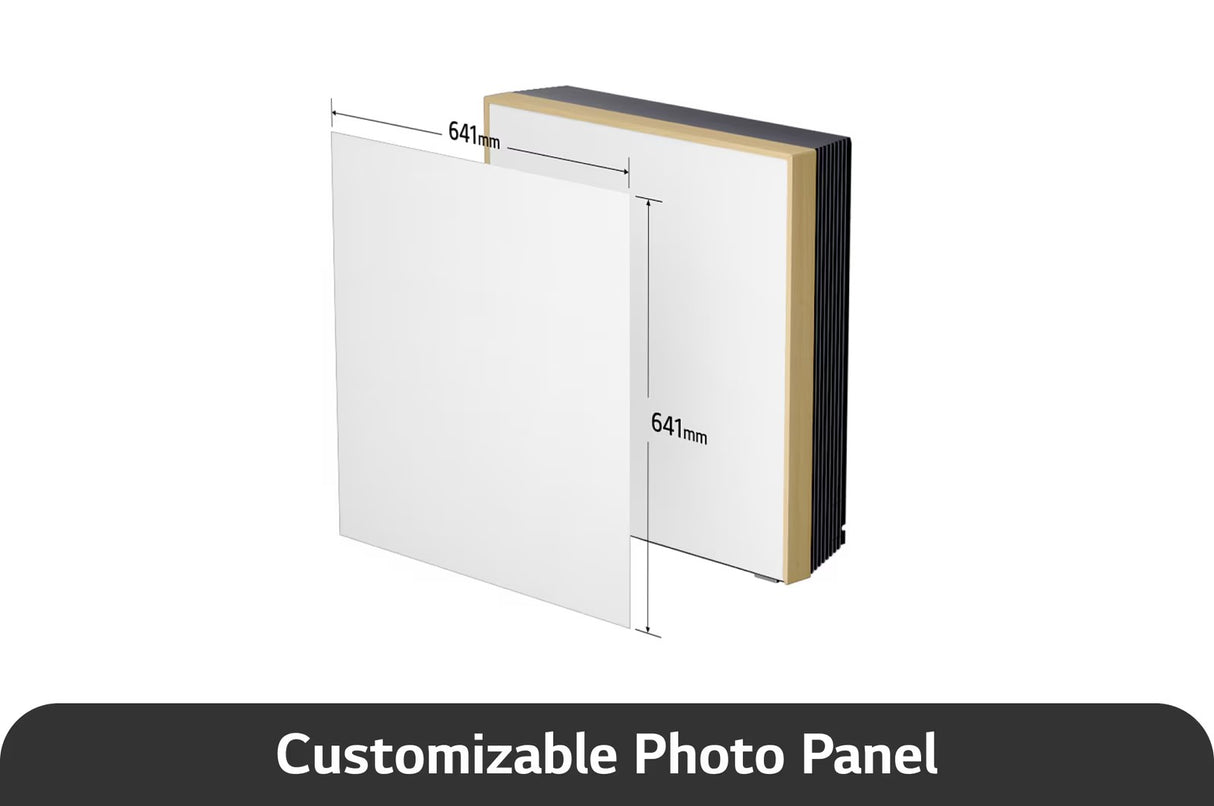

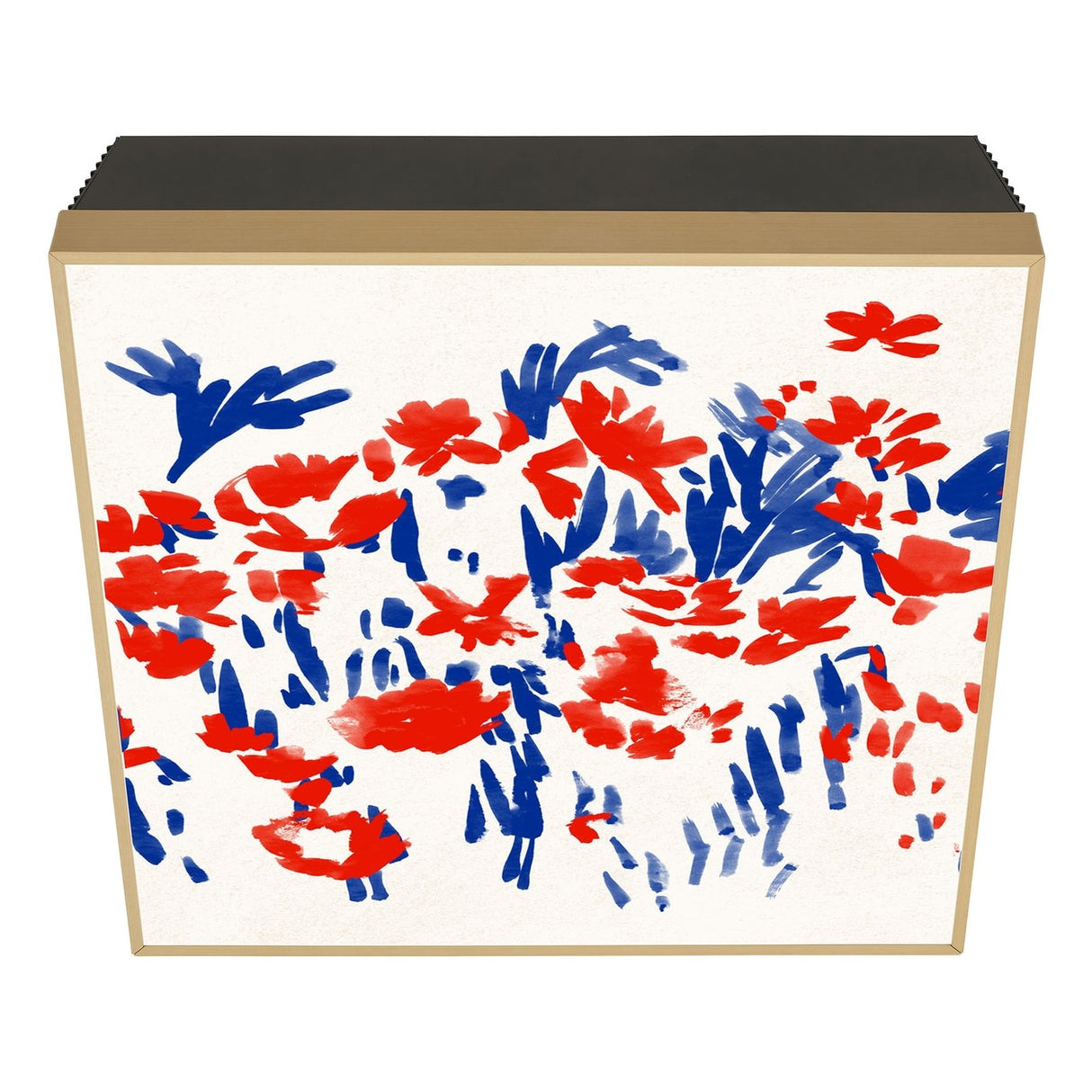

A customizable appearance

Changing the face of your ARTCOOL Gallery is quick and easy! Display your most beautiful photos, a work of art or an image that is dear to you to personalize your spaces.

aspetto personalizzabile

aspetto personalizzabile

Product Guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Specifications
  • peso: 55.0 kg
  • classe energetica raffreddamento: A+++
  • classe energetica riscaldamento: A++
  • costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
  • gas: R-32
  • marca: LG
  • metri quadri : 35/35
  • modello: GALLERY 12+12 21_1
  • potenza btu: 12000+12000
  • superficie riscaldabile mq: 35/35
