With a height of 190 mm, it can be easily installed in residential false ceilings.
Built-in rear drainage tray
Garanzia Italiana
24 mesi
SKU:
AO495_SOLO_INTERNA

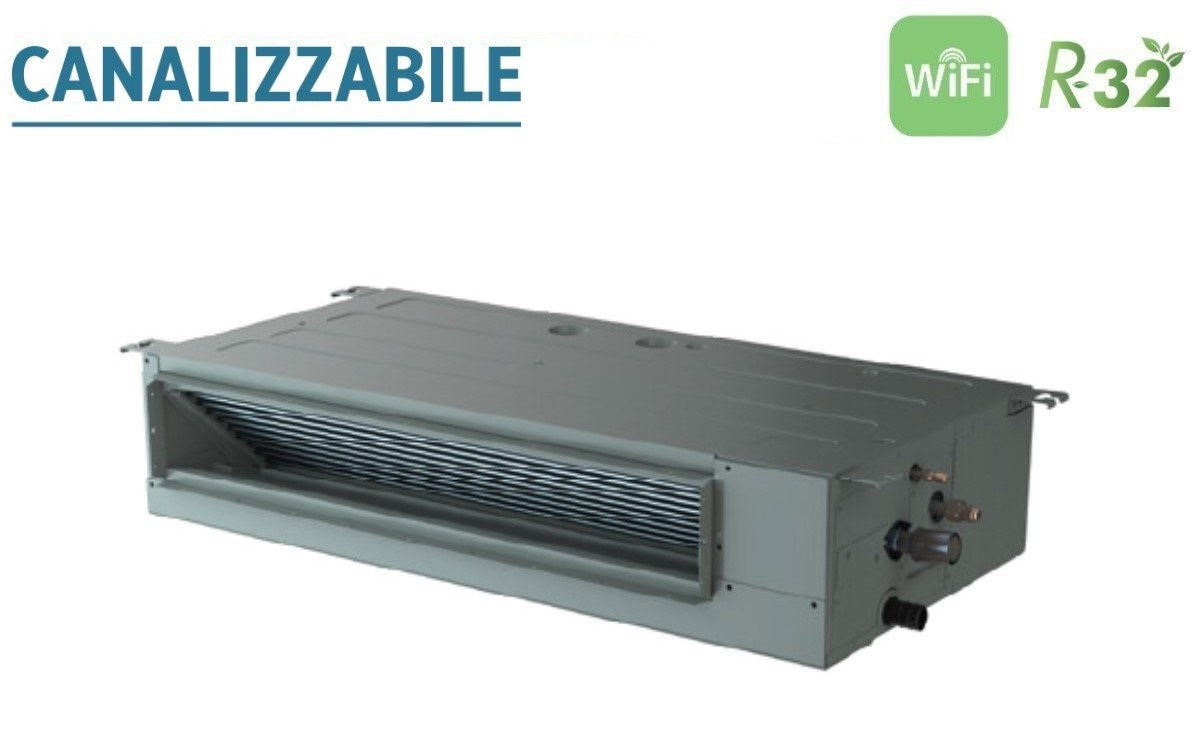

BARGAIN AREA Ducted Indoor Unit Hisense 12000 Btu ADT35UX4RBL4 R-32 WI-Fi Optional - New
Sold out
€194,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
BARGAIN AREA Ducted Indoor Unit Hisense 12000 Btu ADT35UX4RBL4 R-32 WI-Fi Optional - New is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description

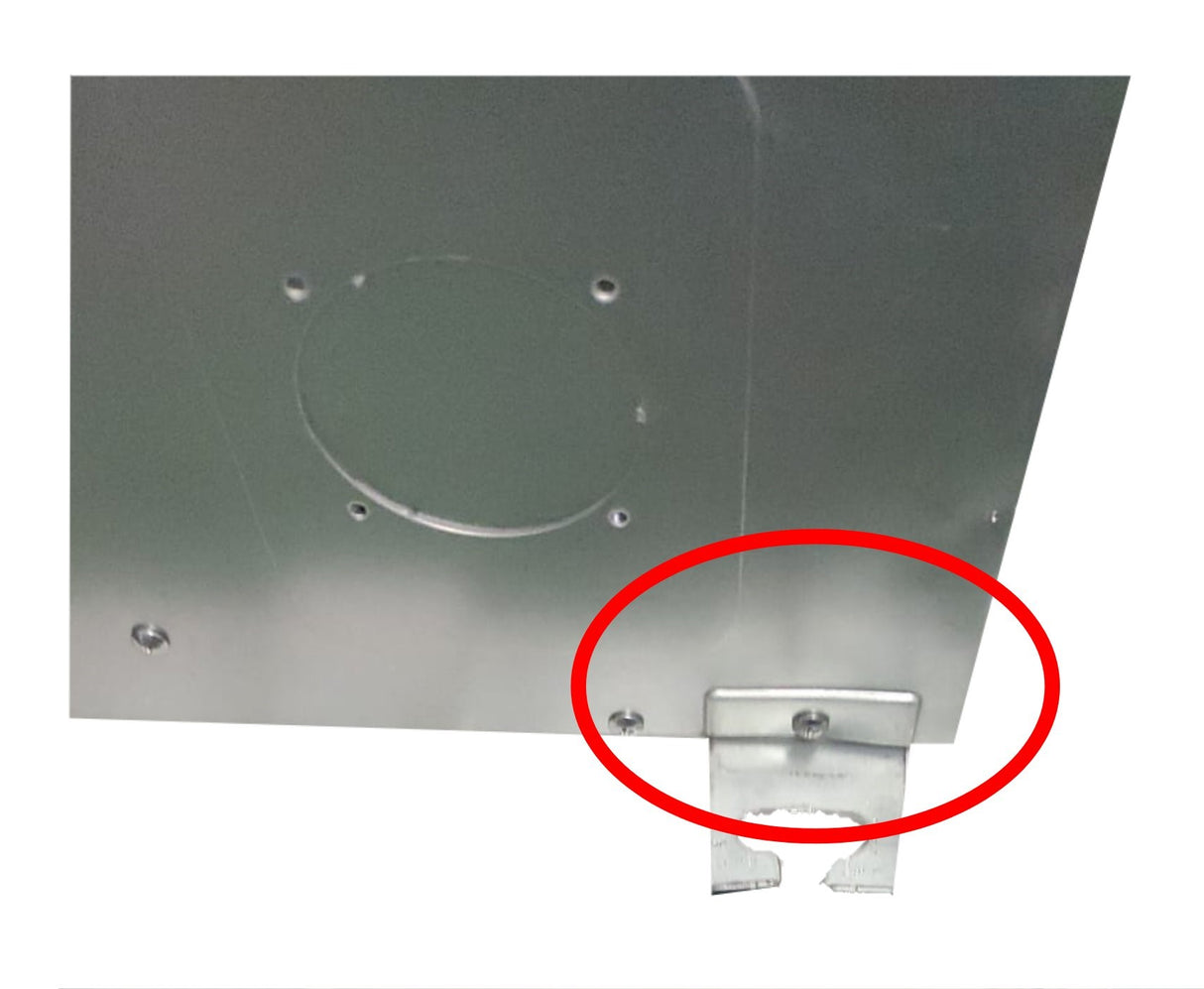

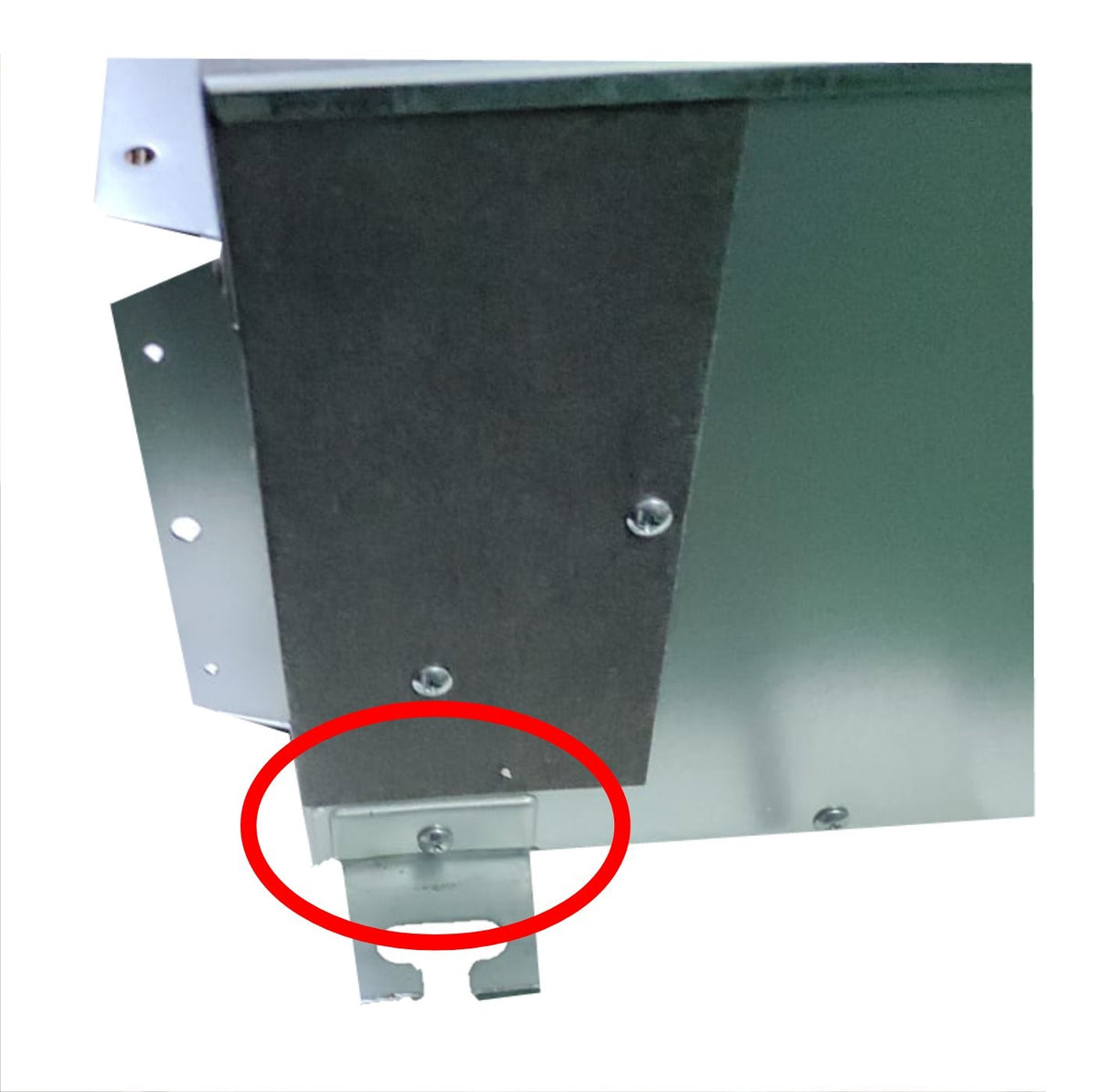

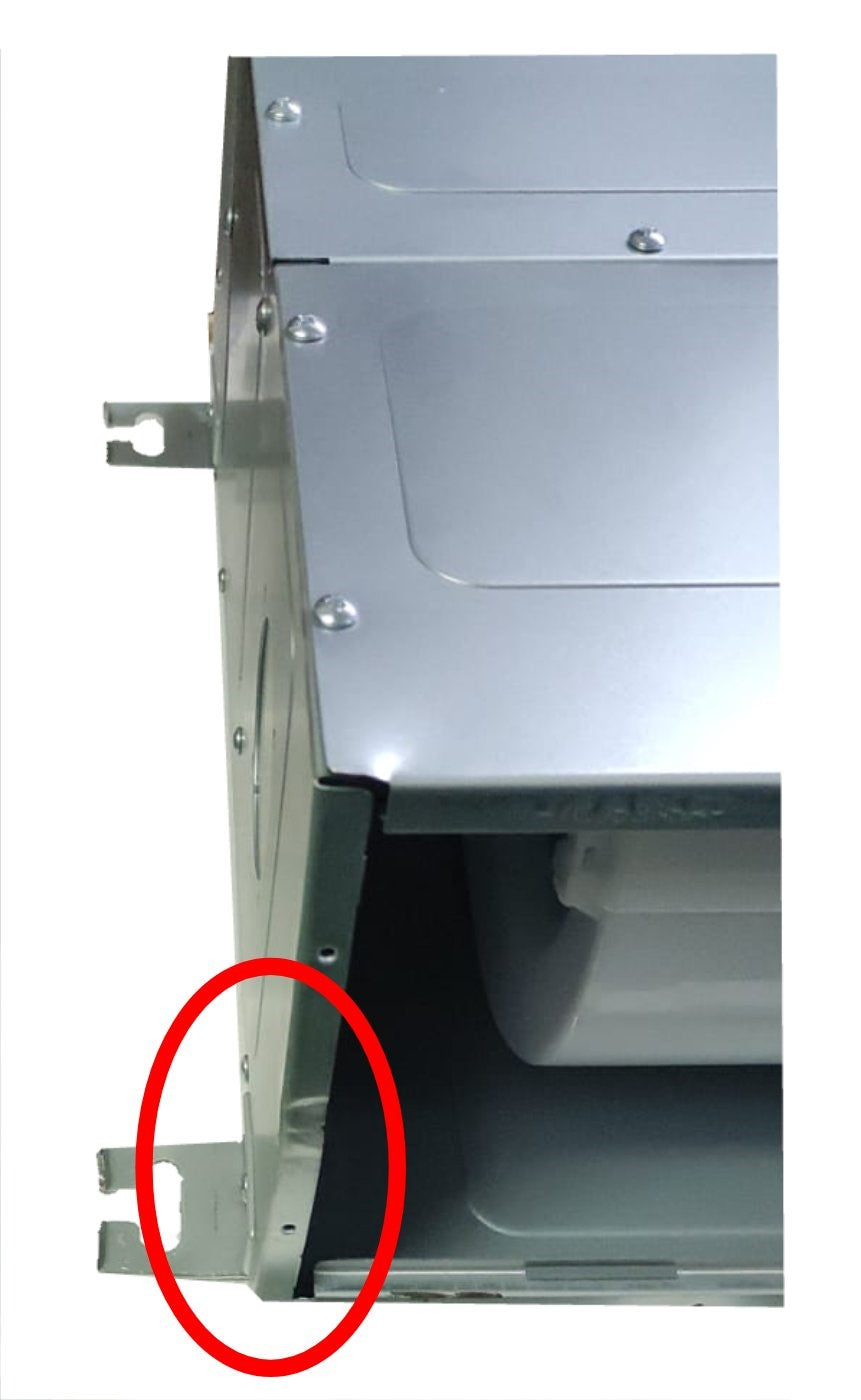

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT IT HAS SOME SLIGHT DENTS ON THE FIXING BRACKETS (SEE PHOTO NEXT TO THE MAIN IMAGE)
Technical features
- Indoor Unit Catalog Code: ADT35UX4RBL4
- Power: 12000 btu/h
- Optional Wi-Fi card (Code AEH-W4E1 )
- Cooling Capacity: 3.55 kW
- Heating Capacity: 3.7 kW
- Power consumption: 25 W
- Rated Current: 0.2 A
- Treated air: 9.58 m 3 /min
- Sound pressure level: 30~36 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxHxD): 910×190×447 mm
- Internal Unit Weight: 18 Kg
Attention, only the internal unit will be supplied
The ducted model can be connected to the following external units:
Ductable Hisense R-32
Variable static pressure
On the entire range of ducted models it is possible to set the static pressure to guarantee greater installation flexibility.
Dual air inlet modes
Advantages: If the distance between the unit and the wall is limited, then you can choose the lower air inlet by removing the lower panel of the unit, it will be much easier and more flexible. The noise level produced by a lower air inlet can increase by up to 5dB compared to using a rear air inlet. We therefore recommend opting for the latter solution.
ON/OFF contact for hotel room control , ON/OFF contact for fire control
Slim design
Disadvantage of an external drain pan: It easily attracts dust and bacteria which will cause long-term malfunctions.
Float and integrated condensate drain pump
If the level of condensation water inside the drainage tray increases due to a malfunction of the drain pump, the unit will automatically turn off and display the alarm to avoid damage.
Safety protection
Make sure the compressor is operating in safety mode to avoid damage caused by refrigerant leaks.
3D Air Panel (Optional)
It is possible to install a motorized grill on ducted models from 2.6 to 5.2 kW
Characteristics
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 35.0 kg
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- marca: Hisense
- modello: AO495_SOLO_INTERNA_1
- potenza btu: 12000
- superficie riscaldabile mq: 35
