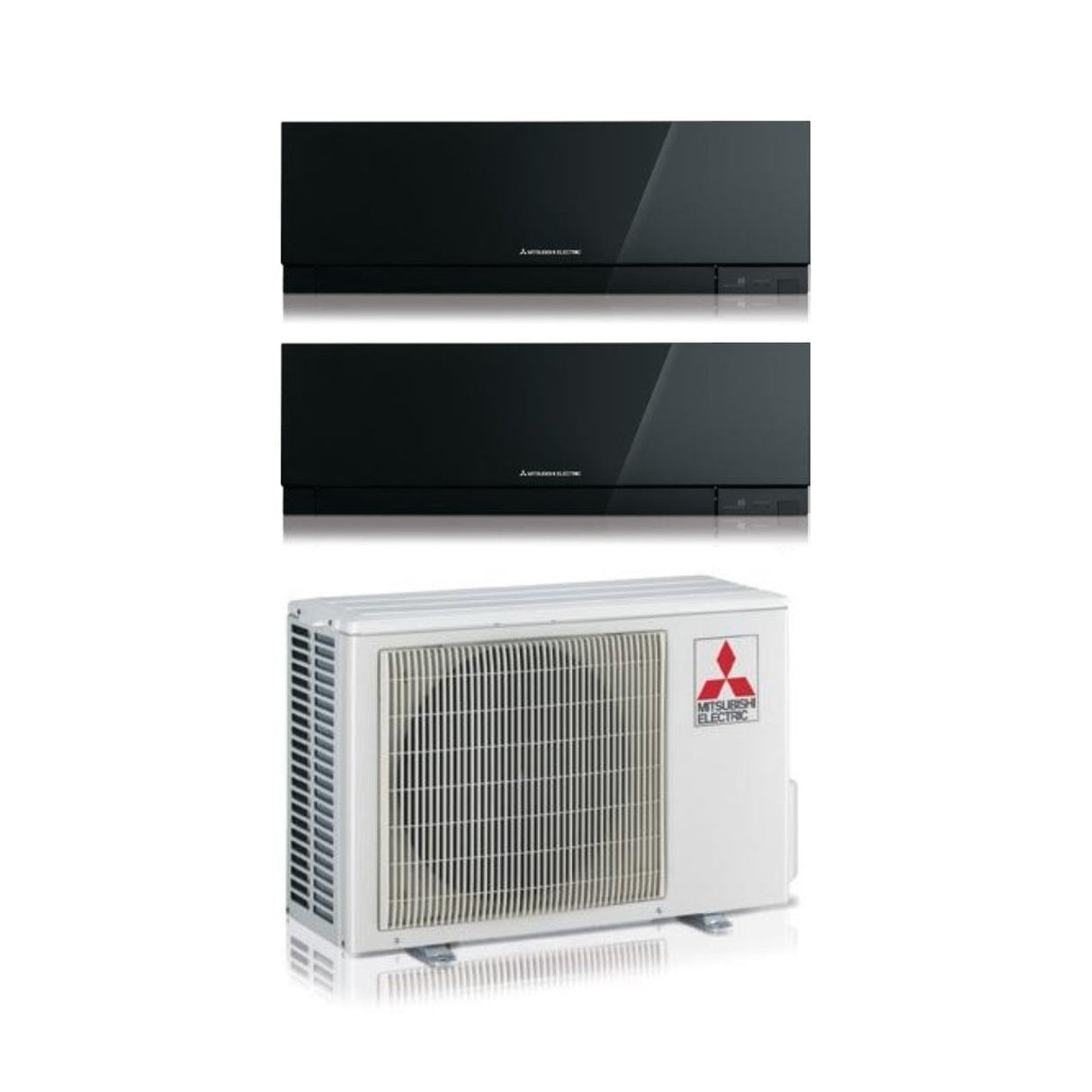

Mitsubishi Electric Dual Split Inverter Air Conditioner KIRIGAMINE ZEN BLACK MSZ-EF 9+9 series with MXZ-2F53VF Black R-32 Integrated Wi-Fi Black Color 9000+9000

Technical features

Internal units

Model:

External Unit

Model:

• Outdoor Unit catalog code: MXZ-2F53VF2/3
• Max indoor units: up to 2 indoor units

Energy efficiency:

• SEER: 8.63
• SCOP: 4.6
• Cooling Energy Efficiency Class: A+++
• Heating Energy Efficiency Class: A++
• Annual energy consumption in Cooling: 215 kWh/a
• Annual energy consumption in Heating: 973 kWh/a

Performance:

• Cooling Capacity: 5.3 kW
• Heating Capacity: 6.4 kW
• Cooling absorption: 1.4 kW
• Heating absorption: 1.56 kW
• Sound power level: 61 dB(A)
• Sound pressure level: 46~51 dB(A)

Characteristics:

• Power (V/Hz/Φ): 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
• - Cooling: -10° ~ 46° C
• - Heating: -15° ~ 24° C

Dimensions:

• External Unit Dimensions (HxWxD): 550x800x285 mm
• External Unit Weight: 37.0 Kg

Multisplit DC Inverter

The Inverter system is an electronic device that allows you to efficiently vary the speed of the compressor and, consequently, the power supplied by the air conditioner, based on the cooling or heating request.

Compared to traditional fixed speed (On/Off) air conditioners, inverter air conditioners reach the required temperature sooner and keep it stable, without annoying changes, to the benefit of comfort and electricity consumption.

High seasonal efficiency

Operating economy is the great advantage of Mitsubishi Electric air conditioners. Thanks to the DC Inverter regulation system and the careful design of the components used, energy efficiency reaches extraordinary levels. The entire range of multi-split air conditioners (MXZ-D) reaches high efficiency values ​​even on a seasonal basis.

Maximum Silence for Maximum Comfort

The DC Inverter multisplit units are characterized by the very low noise level emitted. By activating the silent mode, this level can be further reduced automatically when the demand is lower (e.g. during the night in cooling mode).

Efficiency

Thanks to careful design and the introduction of the R32 refrigerant, the efficiency of the new multisplit outdoor units is significantly increased, reaching class A+++ in cooling (sizes 2F42,2F53,3F54) and A++ (sizes 2F42,2F53,3F54) in heating.

Connectivity

The extraordinary connectivity available with the new external units allows you to satisfy every need. The MXZ-F unit demonstrates all-round versatility , being connectable to a large part of the indoor unit range of the Residential and Commercial Line, whether they are wall-mounted units, ceiling cassettes or ducted.

Silence

The new MXZ-F multisplit outdoor units reach a new level of operating silence, reducing sound emission by up to 4dB compared to the previous model in cooling mode and up to 3dB in heating mode.

R32: reduced environmental impact

Thanks to the use of R32 refrigerant and a reduced pre-charge of the units compared to the previous model, the MXZ-F units introduce a significantly lower quantity of equivalent tonnes of CO2 into the environment.

Automatic noise reduction mode

By setting this function, it is possible to automatically reduce the noise level of the external unit when the internal loads to be satisfied are reduced, such as during night cooling.

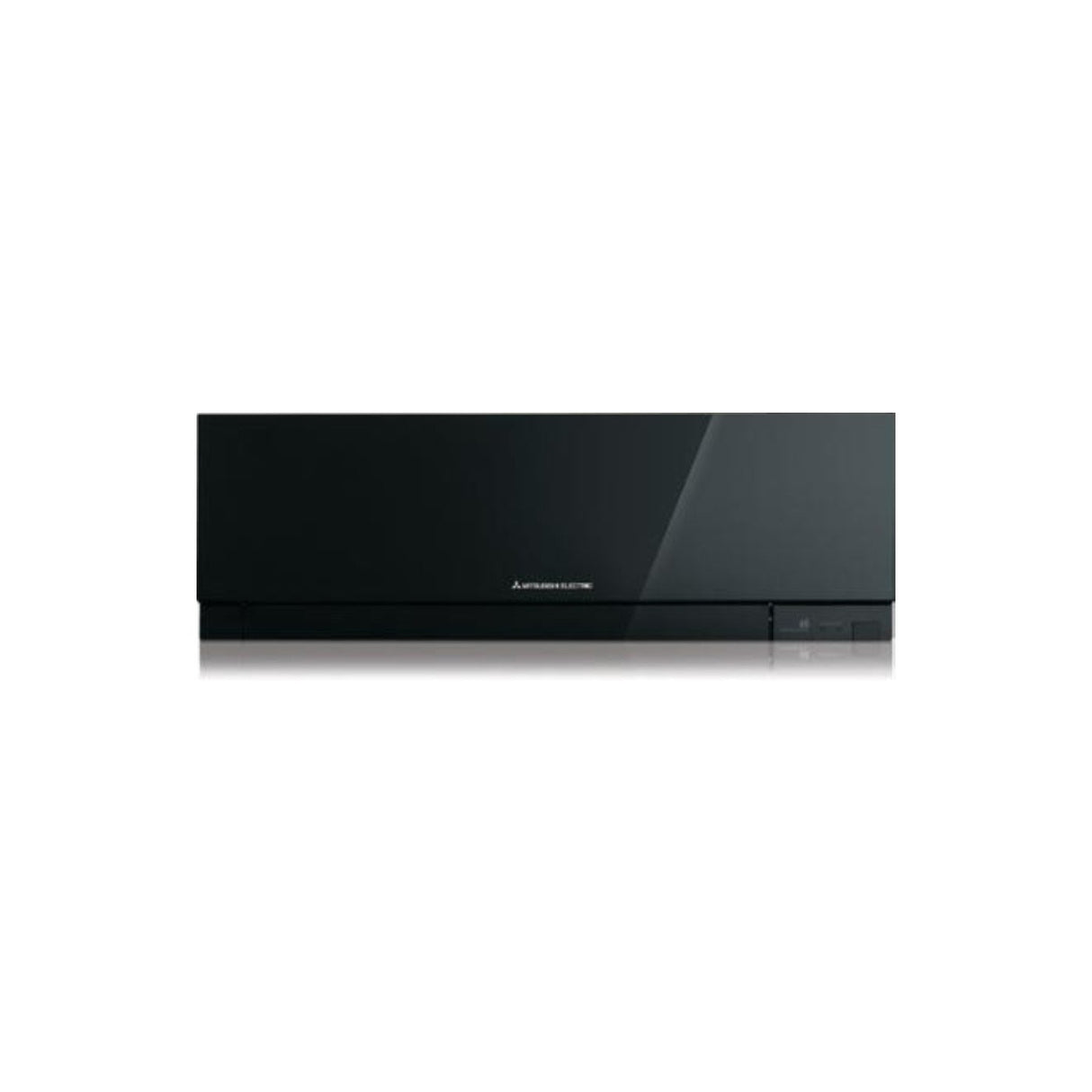

Mitsubishi Electric Kirigamine Zen MSZ-EF

Top design and compact dimensions

A design of impeccable elegance , colors that adapt to every type of interior, fine materials and compact dimensions: it is Kirigamine Zen new from Mitsubishi Electric. An exclusive style combined with high technological and performance content

The R32 refrigerant gas complies with European directives on the reduction of the greenhouse effect, presenting a lower GWP than R410A and not damaging the ozone layer.

The advantages?

• High energy efficiency
• Reduction in the amount of refrigerant gas used
• Reduced environmental impact
• Easily chargeable and recoverable as pure gas
• Low toxicity and flammability

Silver ion air purifying filter

The irregular surface of the purifying filter is more effective in capturing dust and simple and regular cleaning keeps it in perfect efficiency for over 10 years, allowing bad odors to be neutralized thanks to its deodorizing power. The supplied silver ion air purifying filter is able to guarantee even cleaner and healthier air.

MELCloud integrated

The new MSZ-EF (in the VGK version) offers the experience of using MELCloud integrated into the machine. Ready to be configured and used, it allows the user to remotely manage all the functions of the air conditioner, thanks to the Wi-Fi controller.

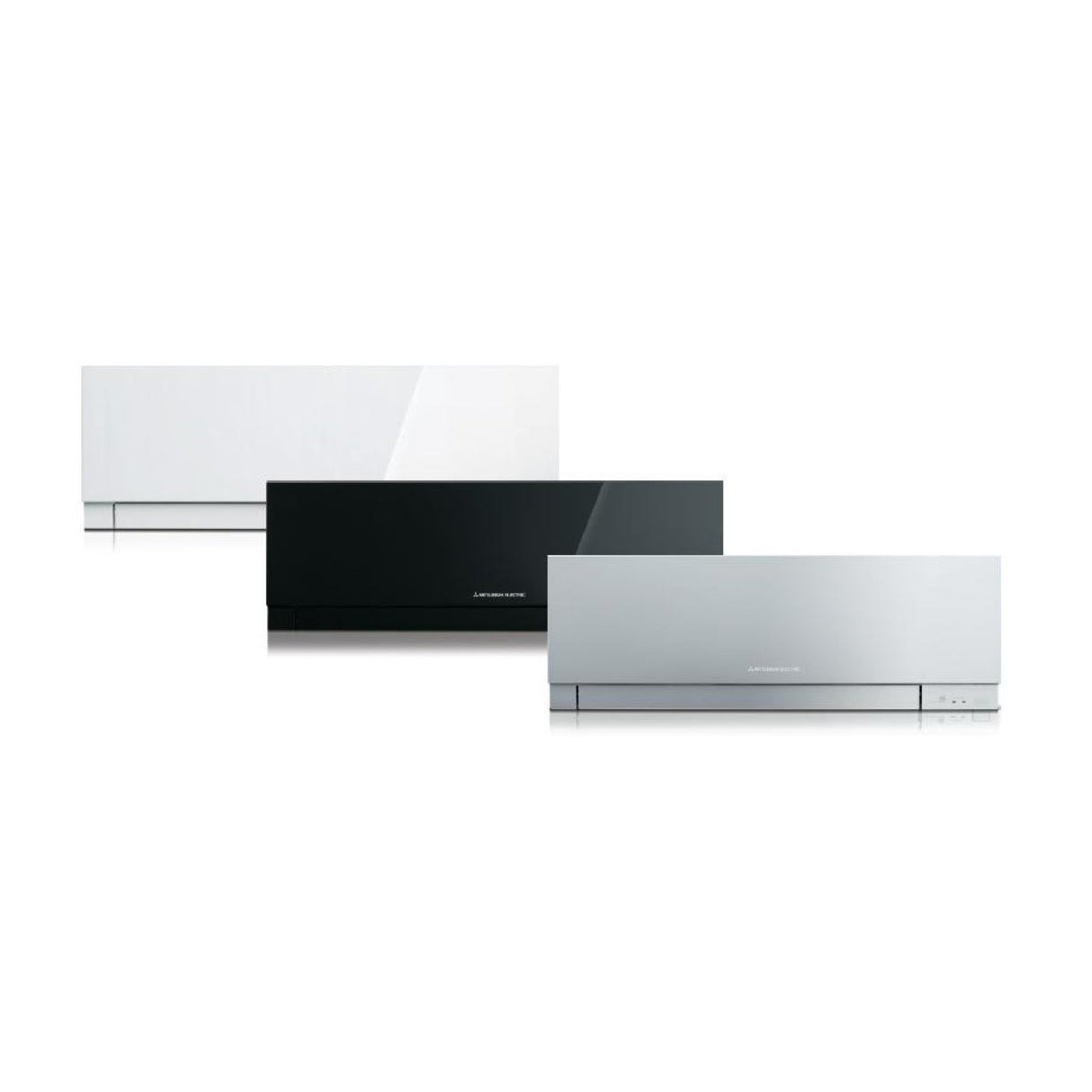

Color is elegance

The elegance of Kirigamine Zen also comes from the color. Defined colours, sober colours, clean shapes enclose Mitsubishi Electrci technology in a high-quality air conditioner.

Stylish remote controls

The new Kirigamine Zen can be controlled with elegance.

The new remote controls, backlit, are even more beautiful. In two colors (black and white), elegant and easy to use, they enrich the experiences of using the Kirigamine Zen lines with a touch of design.

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A+++
• classe energetica riscaldamento: A++
• costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• gas: R-32
• marca: Mitsubishi Electric
• metri quadri : 25/25
• modello: EF-VGKB 9+9 53
• potenza btu: 9000+9000
• superficie riscaldabile mq: 25/25
