Garanzia Italiana
24 mesi
Heating energy class:
A+
Cooling energy class:
A+++
SKU:
ETHEREA DARK 9+12+12 52

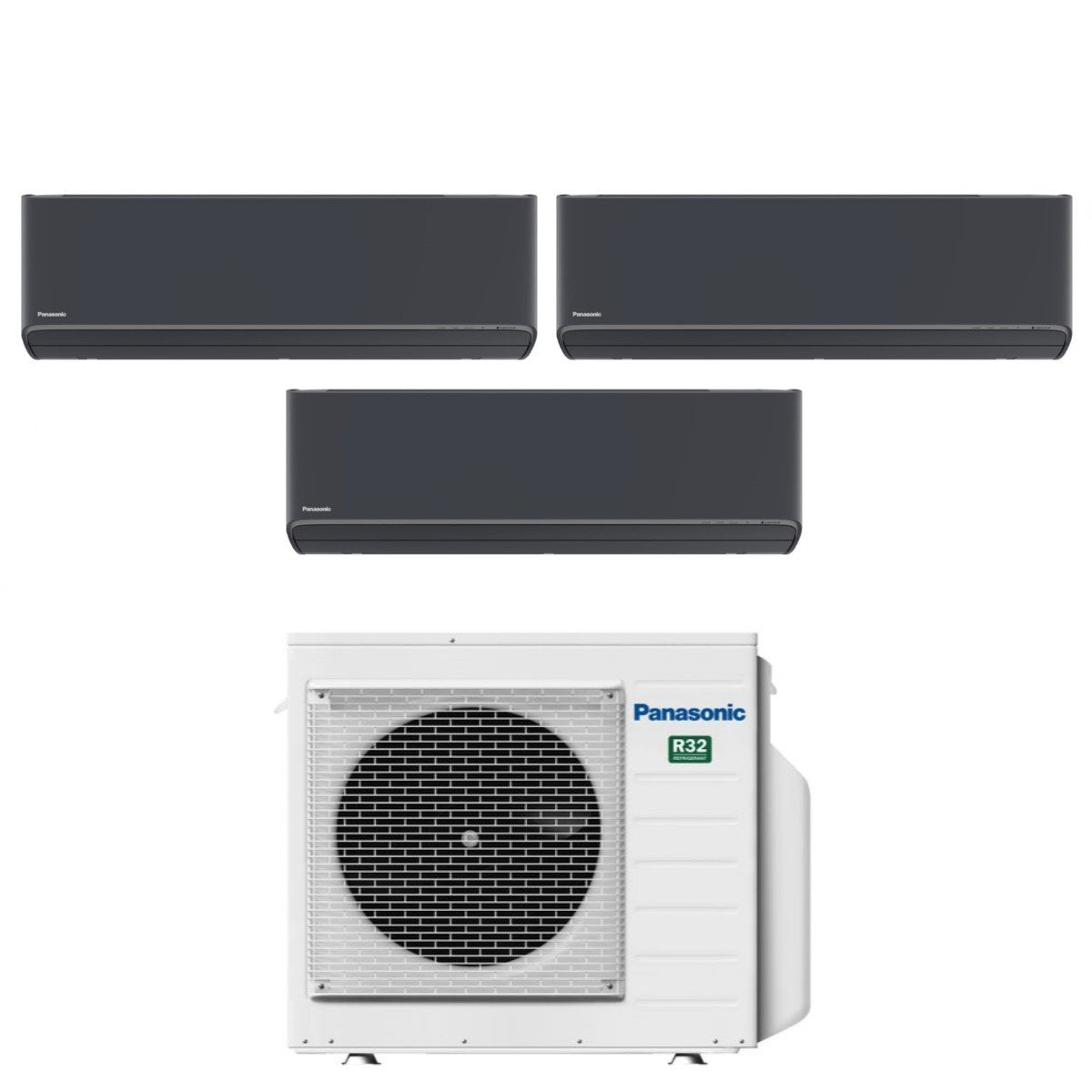

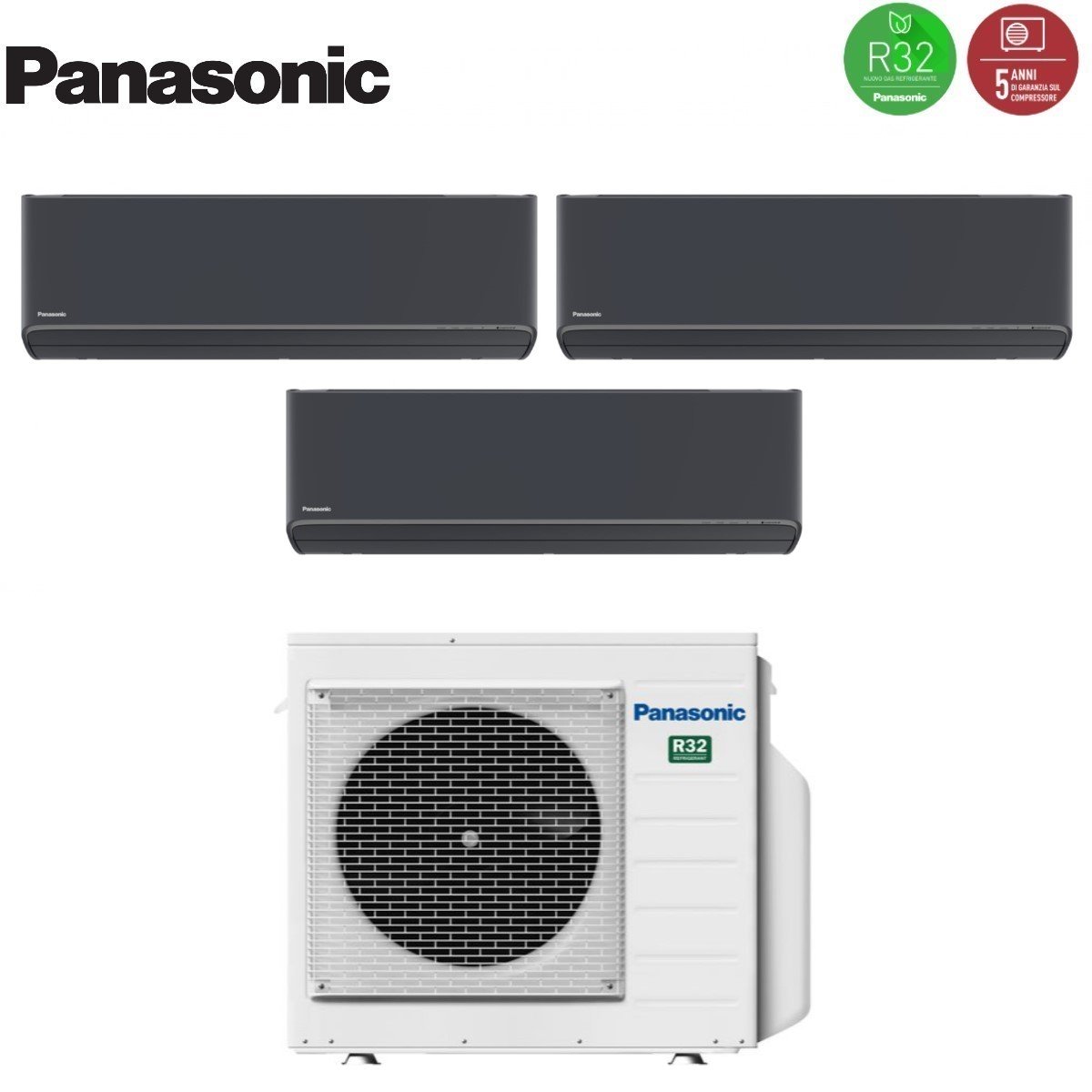

Panasonic Trial Split Inverter Air Conditioner Etherea Dark Series 9+12+12 with CU-3Z52TBE R-32 Integrated Wi-Fi Color Graphite Gray 9000+12000+12000
€2.665,00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout
Panasonic Trial Split Inverter Air Conditioner Etherea Dark Series 9+12+12 with CU-3Z52TBE R-32 Integrated Wi-Fi Color Graphite Gray 9000+12000+12000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features

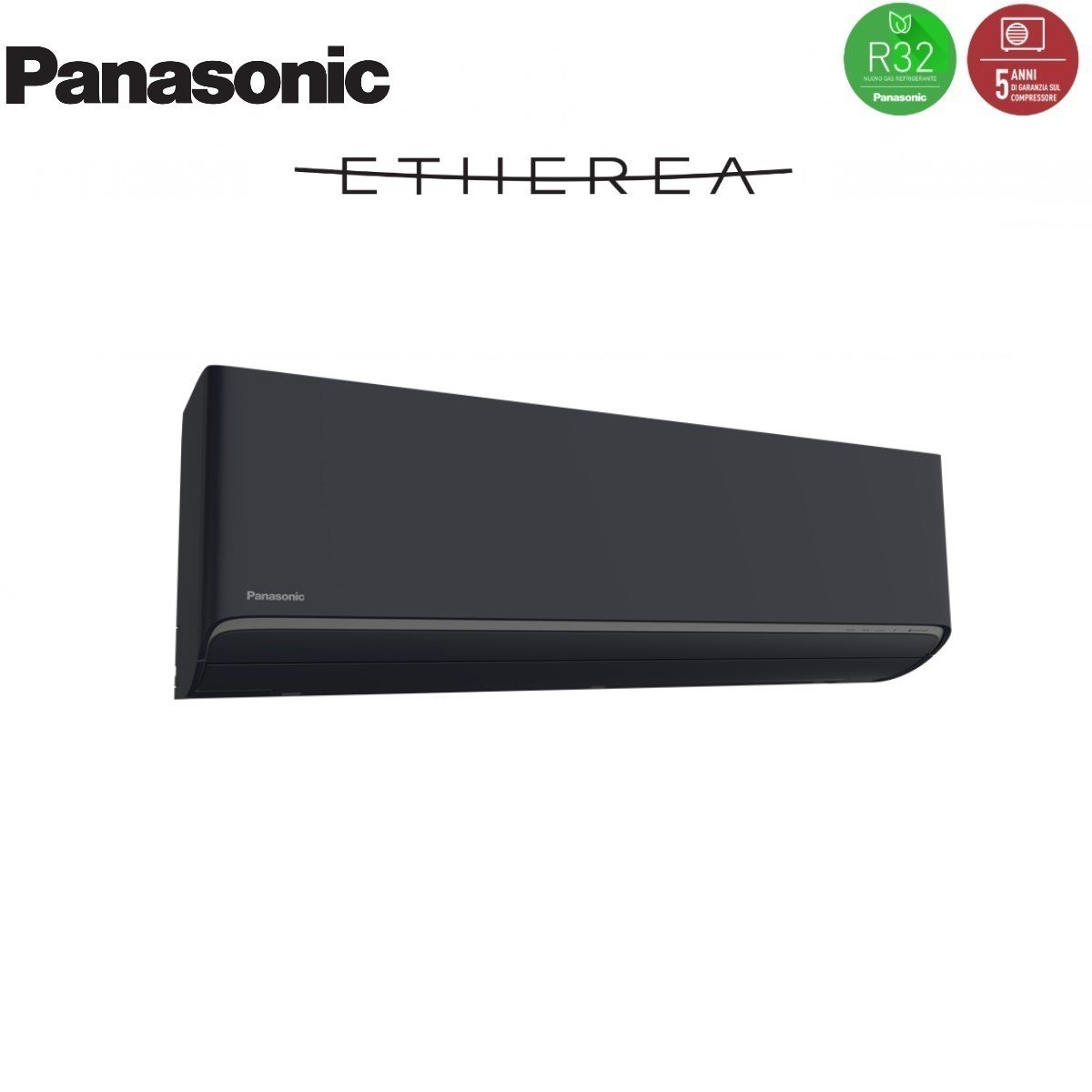

Internal units
1) Model
- Indoor Unit Catalog Code: 1x CS-XZ25XKEW-H
- Series: Etherea Dark
- Color: Graphite Grey
- Power: 9000 btu/h
- Cooling Capacity: 2.50 kW
- Heating capacity: 3.40 kW
- Indoor Unit Treated Air: 12.7 m 3 /min
- Sound Power Level: 55 dB(A)
- Sound pressure level: 19~41 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 295x870x229 mm
- Internal Unit Weight: 10 Kg
- Integrated Wi-Fi
- Optional wired control (Code CZ-RD514C)
2) Model
- Indoor Unit Catalog Code: 2x CS-XZ35XKEW-H
- Series: Etherea Dark
- Color: Graphite Grey
- Power: 12000 btu/h
- Cooling Capacity: 3.50 kW
- Heating capacity: 4.00 kW
- Indoor Unit Treated Air: 12.7 m 3 /min
- Sound Power Level: 58 dB(A)
- Sound pressure level: 19~43 dB(A)
- Liquid pipe diameter: 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 295x870x229 mm
- Internal Unit Weight: 11 Kg
- Integrated Wi-Fi
- Optional wired control (Code CZ-RD514C)
External Unit
Model:
- Outdoor Unit catalog code: CU-3Z52TBE
- Maximum number of internal units that can be combined: 3
Energy efficiency:
- SEER: 8.50
- SCOP: 4.20
- Cooling Energy Efficiency Class: A+++
- Heating Energy Efficiency Class: A+
- Annual energy consumption Cooling: 214 kWh/a
- Annual energy consumption Heating: 1667 kWh/a
Performance:
- Cooling Capacity: 5.20 kW
- Heating Capacity: 6.80 kW
- Cooling absorption: 1.09 kW
- Heating absorption: 1.47 kW
- Sound pressure level: 47~48 dB(A)
Characteristics:
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -10° ~ 46° C
- - Heating: -15° ~ 24° C
Installation Data:
- Pipe diameter Liquid: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum length of pipes: 50 m
- Maximum height difference Internal Unit / External Unit: 15 m
Dimensions:
- External Unit Dimensions (HxWxD): 795x875x320 mm
- External Unit Weight: 71.0 Kg
5 year warranty on the compressor
5 year warranty on outdoor unit compressors across the entire range for five years
Panasonic offers the widest range of Multi Split systems
2 types of Multi Split from 3.5 to 9.0 kW for 5 indoor units connected to a single outdoor unit. If your air conditioning requirements exceed the scope of a single room, Panasonic offers a very wide range of models with the ability to connect up to 5 indoor units to a single outdoor unit
Complete flexibility up to 9.0 kW and up to 5 rooms with a wide range of indoor units including high performance Etherea indoor units, energy efficiency class up to A+++ / A++
Why a Multi Split is a better solution than multiple separate units
- A single compact outdoor unit
- Greater comfort in the home as each room is equipped with its own internal heating unit
- Much more powerful than a single unit
- More efficient as drives always run at full capacity
- Possibility of connecting all types of internal units, such as wall-mounted and console models, according to individual needs
Solution with Multi Split
With one outdoor unit you can connect up to five indoor units. Each room or area is equipped with an indoor unit. Extreme increase in comfort levels. Only one outdoor unit is installed on the roof.
Panasonic Etherea Residential Air Solutions
A smart solution to improve air quality and make your home comfortable and welcoming. The new Etherea models feature nanoe™ X technology based on the benefits of hydroxyl radicals. With advanced control options, high performance, a sleek design and smart features, Etherea is designed to make your home comfortable, cleaner and a great place to live.
Never before has Panasonic designed a range of products capable of satisfying multiple needs of the private user. The range offers a rich choice of products capable of air conditioning rooms of all sizes, always with maximum efficiency and unparalleled ease of installation.
Panasonic Environment Vision 2050 Efficiency. Respect for the environment. Healthy air.
To achieve "a better life" and "a sustainable society", Panasonic will work towards creating and using energy more efficiently than the amount of energy used, aiming for a society with clean energy and a more comfortable lifestyle
A small gesture for the future
Not everyone is ready for change. Panasonic, on the other hand, believes that technological development can improve people's lives. For this reason, a new line of air conditioners has been designed in R32, an absolutely innovative refrigerant: it is easy to install, has a low environmental impact and allows you to save energy. The result? Greater well-being for people and the planet. Welcome R32!
Etherea performance maximum energy class. Enjoy lower bills while helping protect the environment
Nanoe TM
Abundant in nature, hydroxyl radicals, also known as OH- radicals, have the ability to inhibit viruses and bacteria to improve and deodorize the environment. nanoe™ cleaner and more pleasant. Let Panasonic take care of your indoor air quality with nanoe™ This patented technology is designed to improve air quality in both residential and commercial settings
What makes nanoe™ X technology unique?
Hydroxyl radicals inhibit certain types of pollutants, viruses and bacteria and deodorize the environment. Even tightly woven fabrics can be treated with nanoe™
> At one billionth of a meter in size, nanoe™ X particles are much smaller than steam and can penetrate deep into tissue.
> Being composed of water, nanoe™ X particles have a longer lifespan and can diffuse more easily into the surrounding environment
> The nanoe™ Greater quantities of hydroxyl radicals contained in water, thanks to nanoe™
> No maintenance or replacement is necessary. nanoe™
7 benefits of nanoe ™
Nanoe™ X, a technology tested in independent laboratories worldwide
The effectiveness of nanoe™ The performance of nanoe™ nanoe™ X is not a medical device. It is necessary to follow local building design regulations and the principles of national health legislation
Nanoe™ X improves air quality 24/7
Actively cleans the air and inhibits certain types of pollutants throughout the day. nanoe™ Give your air conditioner the opportunity to improve the protection of your home with nanoe™ X technology and convenient control via the Panasonic Comfort Cloud App
Improve indoor air quality even when you are away from home
Leave nanoe™ mode on to inhibit certain types of pollutants and deodorize the environment before returning home
Improve your environment when you are at home
Enjoy a cleaner and more comfortable space with your loved ones
Panasonic Comfort Cloud App Advanced remote control
Whether you are at home, in the office or at the head of a company, Panasonic Comfort Cloud allows you to easily control and access all functions remotely anytime, anywhere
The Panasonic Comfort Cloud app allows you to conveniently manage and monitor multiple units from a single device. Furthermore, thanks to energy monitoring, it is possible to further reduce operating costs.
• Possibility of managing up to 200 units with just 1 device
• Compatible for both residential and commercial applications
Smart Control Control the temperature anytime, anywhere
• Control multiple units through a single device for up to 10 sites, 20 units per site
• Simultaneous management of multiple units
Comfort Smart Easy management of comfort and air quality
• Access all functions remotely
• Activate nanoe™ X 1) 24 hours a day
• Preheat or cool spaces
Smart efficiency More comfort and less energy waste
• Analysis of energy consumption
• Analysis of the energy consumption history of the units for better budget planning
Smart assistance Fault notification
• Control privilege for users
• Effortless troubleshooting
Compatibility with voice control systems
Unlimited control, full access to the features of your air conditioners. Improving your comfort is now a breeze thanks to our Panasonic Comfort Cloud-enabled air conditioner and Voice Control
Operate the air with your voice Enjoy the convenience of accessing these four basic operations with just your voice
Turn the air conditioning on and off. Improve your rest with greater control. Turn on/off the air conditioning with ease when preparing a comfortable space for little ones
Switch Modes Get extra help during a hectic day. Conveniently change the air conditioning operating mode to cooling and heating or auto when your hands are full
Adjust the temperature Simple and immediate control at any time Adjust the temperature with a simple voice command
Check current status Hands-free comfort for the whole family. Easy access for the elderly to check the settings and current working status of the air conditioning
Manage more with your voice Simplify your day's routines by grouping them into single actions
Set up your routine with a custom command. With the routine function, you can customize voice commands and control multiple devices, including our network-enabled air conditioners

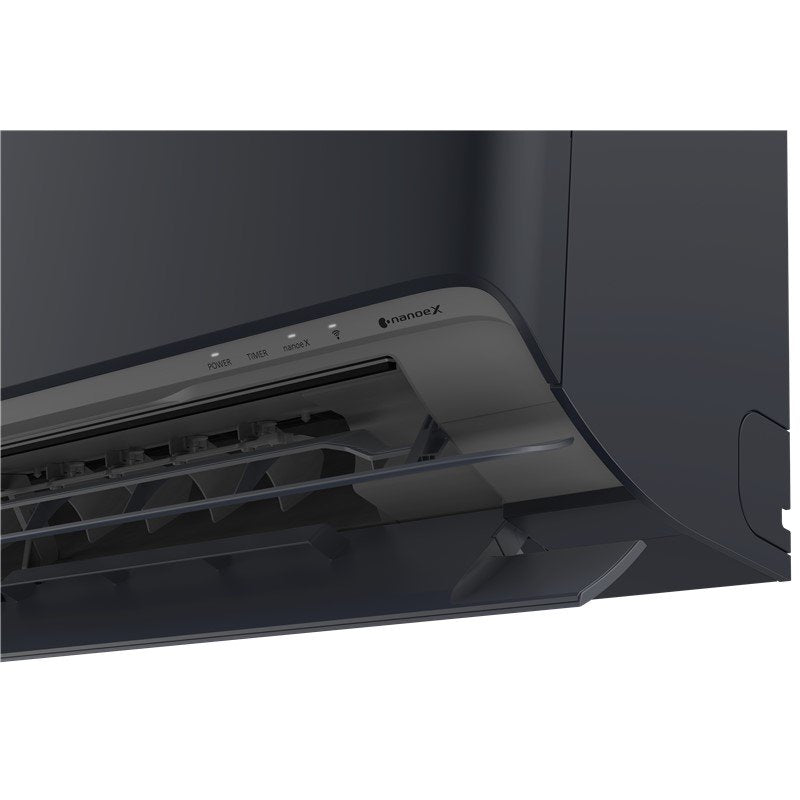

Technology designed for maximum comfort Aerowings 2.0 function
Panasonic's Aerowings feature incorporates two independent fins that concentrate airflow to heat or cool the room in the shortest time possible while helping to evenly distribute cool air throughout the room. Thanks to the new wider secondary fin (72 mm), more than double the size of other conventional models, control over the direction of the airflow has been further improved.
Aerowings 2.0 is equipped with a new cooling function that allows you to direct the air flow towards the ceiling to guarantee homogeneous air distribution and greater comfort without being subjected to direct exposure to an air flow Freddo
In heating mode the Aerowings 2.0 function directs the air flow from top to bottom to obtain an effect similar to underfloor heating. The flow rises and ensures a homogeneous distribution of the air in the room
Elegant design with easy-to-use wireless control
Panasonic has carefully designed a new chassis for the Etherea internal drive that fits perfectly into any style. Its elegant design and solid structure, together with a large air exhaust area, allow it to achieve high performance
The easy-to-use remote control features an ergonomic design with a tapered rear housing for a more comfortable grip. The new design of the wireless control, with five buttons for quick access to key functions, ensures simple and intuitive control of settings. Additionally, the control features a minimalist design with less frequently used keys hidden under a sliding cover
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 75.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A+
- costospedizionecad: IT49;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
- gas: R-32
- marca: Panasonic
- modello: ETHEREA DARK 9+12+12 52_1
- potenza btu: 9000+12000+12000
- superficie riscaldabile mq: 25/35/35
