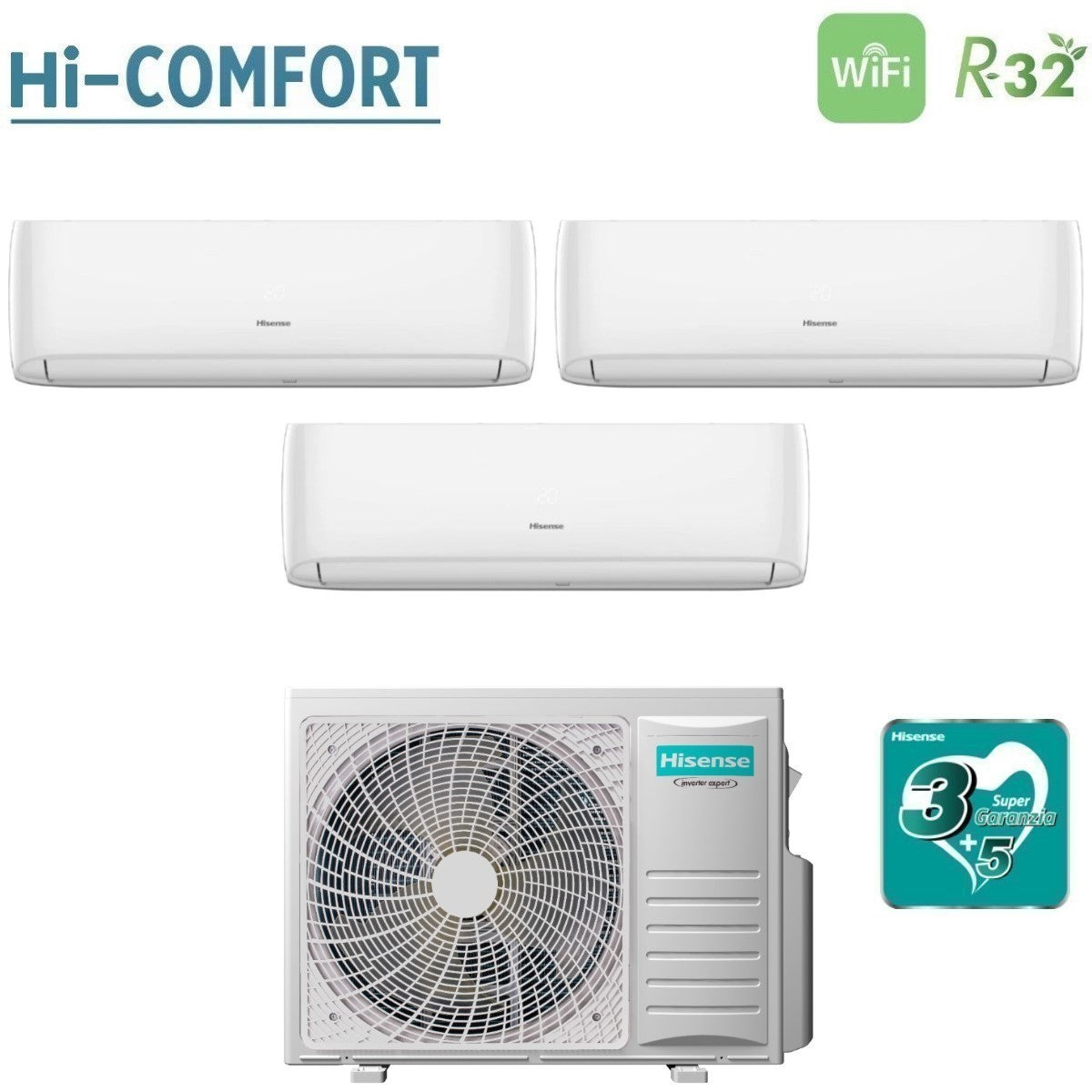

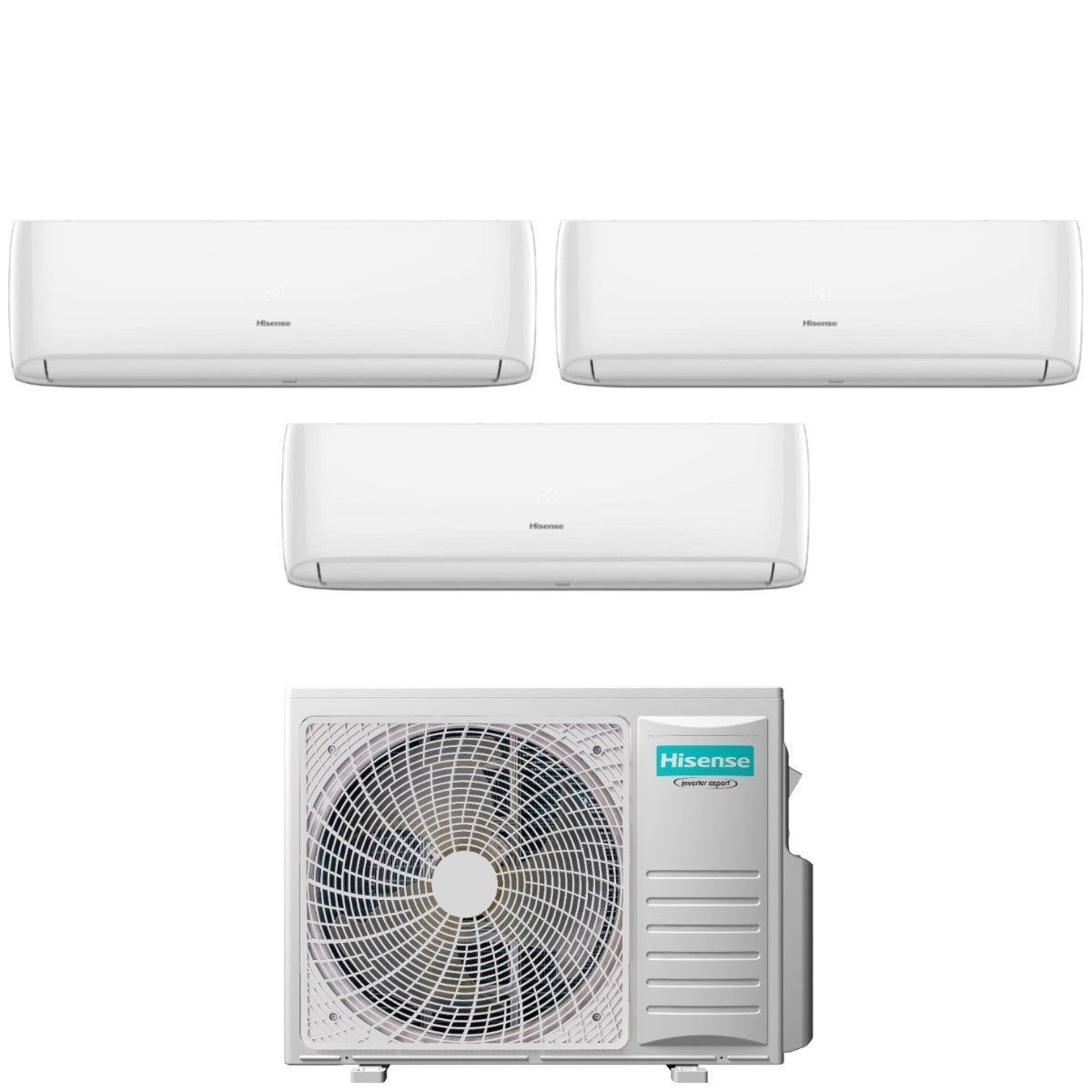

External unit
- Outdoor unit catalog code: 3AMW52U4RJA
- Number of connectable internal units: 3
Energy efficiency
- SEER: 7.3
- SCOP: 4.05
- Cooling energy efficiency class: A++
- Heating energy efficiency class: A+
- Annual energy consumption in cooling: 264 kWh/a
- Annual energy consumption in heating: 1728 kWh/a
Performance
- Cooling capacity: 5.5 kW
- Heating capacity: 6.3 kW
- Cooling absorption: 1.30 kW
- Heating absorption: 1.6 kW
- Sound power level: 65 dB(A)
- Sound pressure level: 49~55 dB(A)
Electrical data
- Power (V/Hz/Φ): 220~240/50/1
- Refrigerant gas: R-32
- Guaranteed temperature range:
- - Cooling: -15° ~ 48° C
- - Heating: -15° ~ 24° C
Installation data
- Liquid tube diameter: 6.35 mm (1/4") x3
- Gas pipe diameter: 9.52 mm (3/8") x3
- Maximum pipe length: 45 m
- Maximum piping length per unit: 20 m
- Maximum height difference between internal unit and external unit: 15 m
Dimensions and weight
- External unit dimensions (WxHxD): 860x670x310 mm
- External unit weight: 46.0 kg
3 year warranty (5 on the compressor)
The Hisense Italia warranty can be activated within 1 month from the date of purchase at http://www.hisenseitalia.it/clima/supporto
Multi-split outdoor unit technologies
High efficiency DC Twin Rotary inverter compressor
The design of the new double rotor BLDC Inverter compressor guarantees better balancing and reduced vibrations. This translates into the maximum level of silence and excellent performance in terms of efficiency and energy saving.
High efficiency and low noise
Hisense Inverter Expert technology guarantees high efficiency and reduced noise level thanks to the combined action of the DC Inverter compressor, the DC Inverter fan motor and the electronic expansion valve.
Compact and versatile
The dimensions of the new Free Match outdoor units have been reduced by 10% to allow them to be installed even in small spaces.
Maximum comfort even in winter
Based on the historical data, the system adapts the conditions for activating defrost to guarantee maximum comfort in heating mode.
Super warming
DC drive technology with 180° sine wave
The system constantly monitors the compressor frequency and creates the most efficient waveform to determine effective consumption savings.
Curve control
Compressor with rubidium magnet
Thanks to the greater compression of the gas molecules, the compressor with rubidium magnet guarantees greater efficiency and lower absorption
Electronic expansion valve
The outdoor unit uses an electronic expansion valve that regulates and optimizes the amount of refrigerant of all operating indoor units .
Wide voltage range operation
The outdoor unit can operate with a voltage of 176V to 264V. In the new models, the use of an automatic voltage regulation technique guarantees that the protection value adjusts according to it, maintaining the operating frequency at an optimal value.
Exchanger design: designed to improve its efficiency
The design of the external exchanger has been designed to increase heat transfer in such a way as to make the refrigeration circuit more efficient and avoid the creation of ice blocks. A further advantage is that it can support long-distance connections between the external unit and internal units without reducing the cooling capacity.

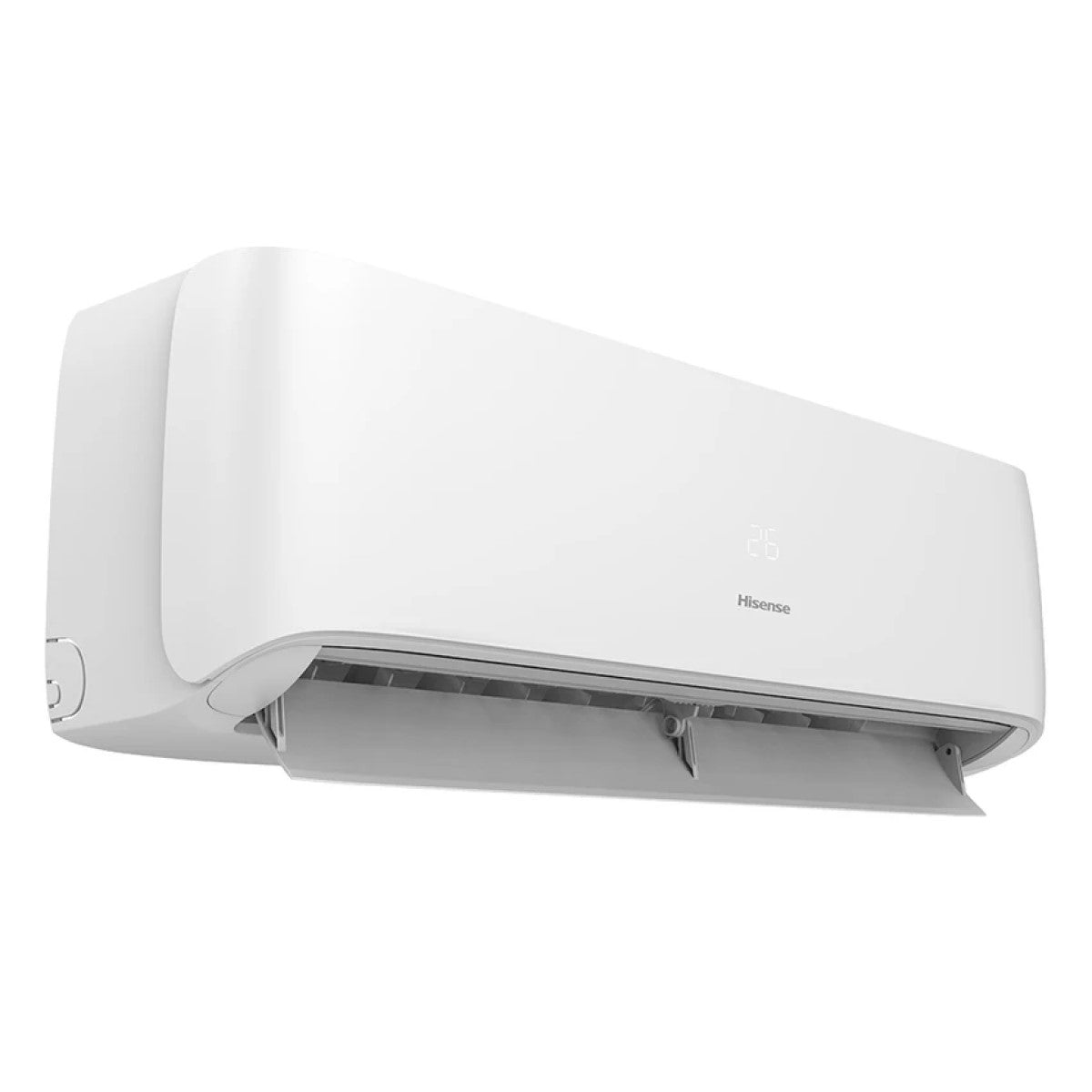

Hisense Hi-Comfort
Adjustable airflow
The remote control can set different angles of the flaps, up to 6 in the up/down direction, 3 in the left/right direction and many air adjustment options for different operating needs.
Self Clean
Hisense's patented cleaning technology ensures maximum performance of the internal and external unit. The self-cleaning process via freezing, defrosting and drying cycle at high temperatures removes dust, bacteria from the units easily and effectively to keep the air conditioner clean and safe. The Self-Clean function is activated by remote control and is available on all wall-mounted indoor units and single-split outdoor units.
Universal unit for single and multi systems
The universal internal units can be connected to Monosplit and Multisplit external units to ensure maximum installation versatility

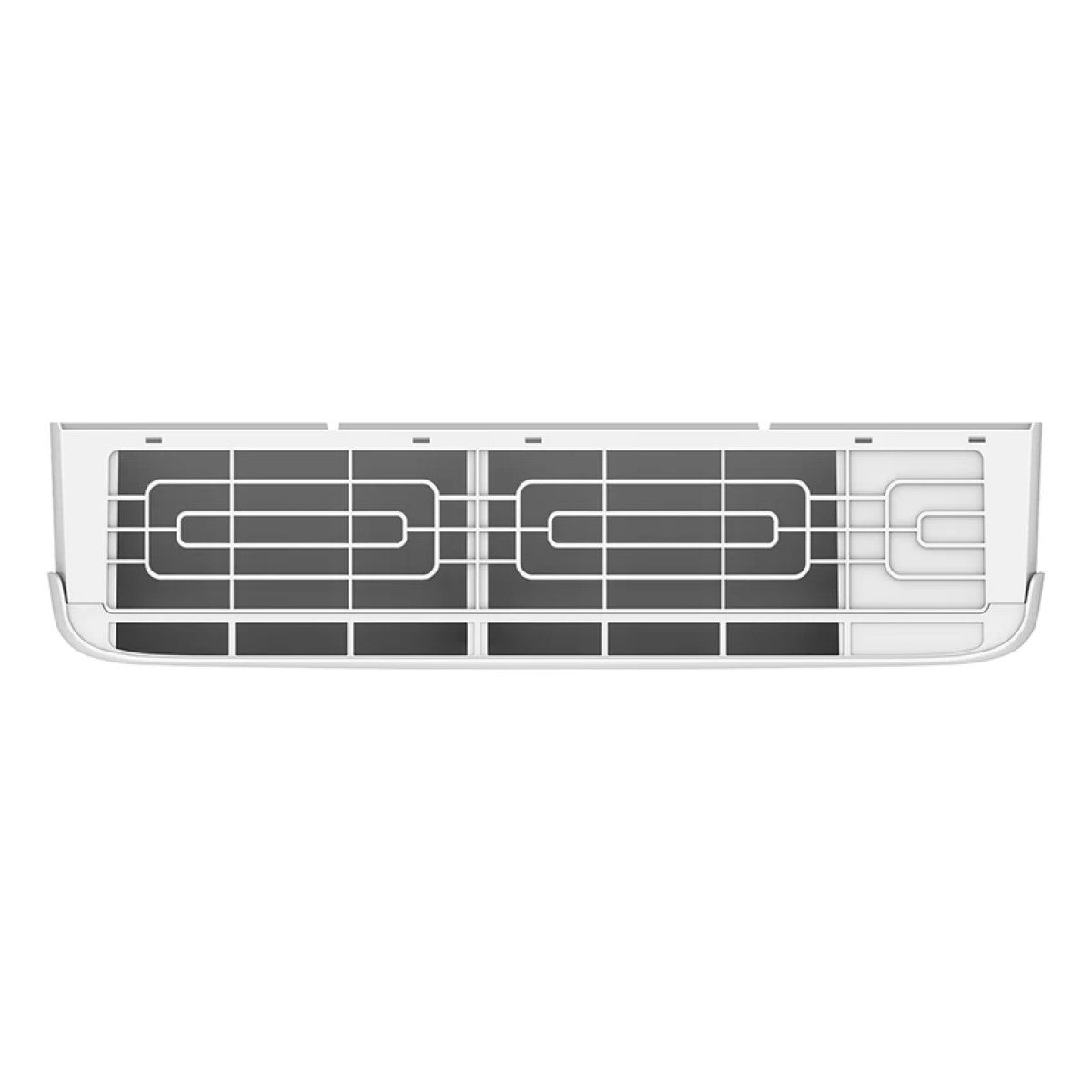

Total protection: 4 Filters in 1
• Catechin filter: removes odors and dust
• HEPA filter: removes pollen and dust
• Silver Ion Filter: sterilizes bacteria by acting on their composition
• Aroma Filter: releases a pleasant scent into the room
Wi-Fi control
Hisense air conditioners can be conveniently managed inside and outside the home with a mobile device and a Wi-Fi connection. HiSmart Life is the simple to use app with an intuitive interface that allows you to control the air conditioner wherever you are. The app is available for iOS and Android.
After downloading the app and pairing the air conditioner, the app allows you to manage operating modes, temperature, ventilation speed and air flow. From the «Smart function» section you can also set daily or weekly timers.
Smart Voice Control
The new HiSmart Life app is compatible with Alexa and Google Assistant: thanks to voice interaction, it is possible to turn it on, off, adjust the temperature and set the desired operating mode (cooling or heating).
You can find HiSmart Life in the Alexa Skills and in the Google Assistant catalogue.
