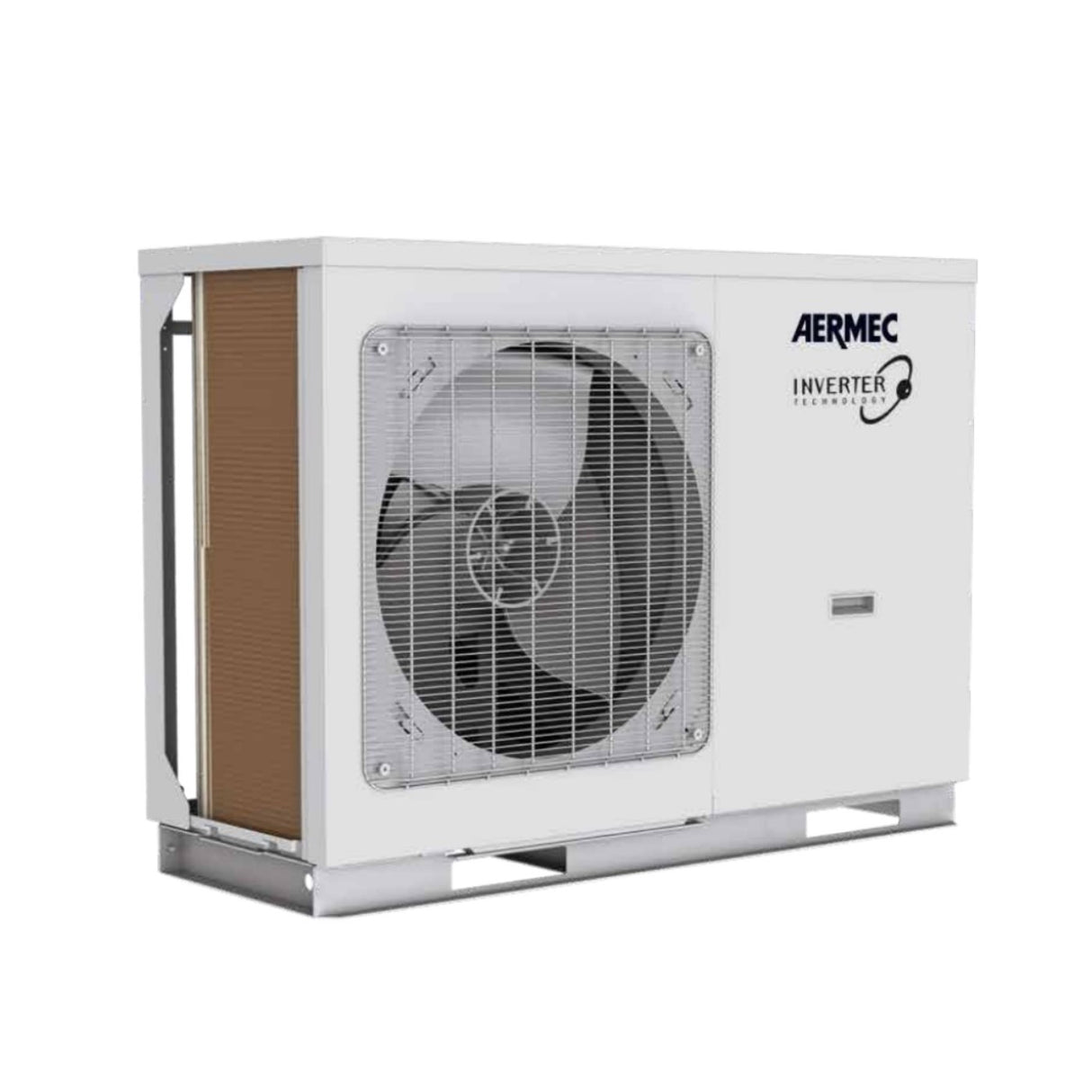

Aermec Reversible Heat Pump Chiller HMI140 12 kW R-32 Single Phase Integrated Wi-Fi with Remote Control Panel Included
Aermec Reversible Heat Pump Chiller HMI140 12 kW R-32 Single Phase Integrated Wi-Fi with Remote Control Panel Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
FIRST LOGIN FREE
Technical features
- Product code: HMI140
Energy efficiency
- EER: 2.90
- COP: 3.35
- Energy Efficiency Class for low temperatures: A++
- Energy Efficiency Class for medium temperatures: A++
Performance
- Cooling Capacity: 12.0 kW
- Heating Capacity: 14.0 kW
- Cooling absorption: 4.14 kW
- Heating absorption: 4.18 kW
- Cooling water flow rate: 2080 l/h
- Heating water flow rate: 2500 l/h
- Sound power level: 70 dB(A)
- Sound pressure level: 55~57 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
Installation Data
- Hydraulic pipe diameter: 25 mm (1") Male
Dimensions and weight
- External Unit Dimensions (LxHxD): 1200x878x460 mm
- External Unit Weight: 151 Kg
Aermec Air Condensed Heat Pump
Reversible outdoor heat pump for air conditioning systems where, in addition to cooling the rooms, high temperature hot water is required for heating or for the production of domestic hot water. For the production of DHW, the combination with the DHWT300S domestic hot water storage tank is mandatory . HMI was designed to meet the needs of the new construction and renovation market, to replace or complement conventional boilers . It can be combined with low temperature emission systems such as underfloor heating or fan coils but also with more traditional radiators, and is already supplied with the main hydraulic components, thus also facilitating the final installation
Operational Limits
Work at full load down to -25°C outside air temperature in the winter season and up to 48°C in the summer season. Maximum temperature of water produced in heating 60 °C
- Refrigeration circuit with economizer
- DC brushless axial fans designed for aerodynamic optimization, allowing a reduction in noise level, but at the same time, an increase in efficiency and air flow.
- Equipped with an electric base resistance to avoid the possible formation of ice and facilitate the disposal of condensation during heating operation.
- Electronic expansion valve
- Inverter pump
- Plate heat exchanger
- Expansion vessel
- Safety valve
- Flow switch
- Water filter supplied (mandatory installation)
Adjustment via multilingual touch screen control panel
- Management of a 3-way diverter valve (not supplied) for the production of domestic hot water
- Management of a 2-way valve (not supplied) for shutting off a part of the system
- Weekly and time slot programming
- Auto-restart function
- Emergency operation (can activate a replacement heat source)
- Quick hot water function for rapid heating of domestic hot water
- Weather dependent mode function for climate regulation
- Quiet function for silent operation, programmable with timer
- Condensation control
- The activation of the anti-legionella cycle (easily settable from the control panel) allows the entire tank to be heated weekly to a temperature (max 70°C) capable of eradicating the bacterium responsible for the infection
The system is equipped as standard with the Wi-Fi module; through this module and a specific App for iOS and Android devices, available free of charge on the Apple Store and Google Play, it is possible to control the system remotely directly from your smartphone or tablet. Remote control can be done via the Cloud using a wireless router connected to the internet.
Accessories
DHWT300S: (220-240V~50Hz) domestic hot water storage tank in enamelled steel. Single-phase electrical power supply, 300 liter capacity with main and secondary coil, 3 kW electrical support resistance. Sacrificial magnesium anode. Indoor installation, as indicated in the installation manual
HMICB15: Connection cable for the wired control panel. Cable length 15 m
IC-2P: Connector for communication via ModBus or VMF-485LINK. Mandatory accessory if combined with the VMF-485LINK, or for third-party supervision systems
VMF-485LINK: Expansion to interface the unit with the VMF communication protocol, making management possible from VMF-E5 or VMF-E6 supervisors
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 150.0 kg
- alimentazione: Single phase
- costospedizionecad: IT79;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- gas: R-32
- marca: Aermec
- modello: HMI140_1
- potenza in kw: 12
- tipologia : Reversibile
