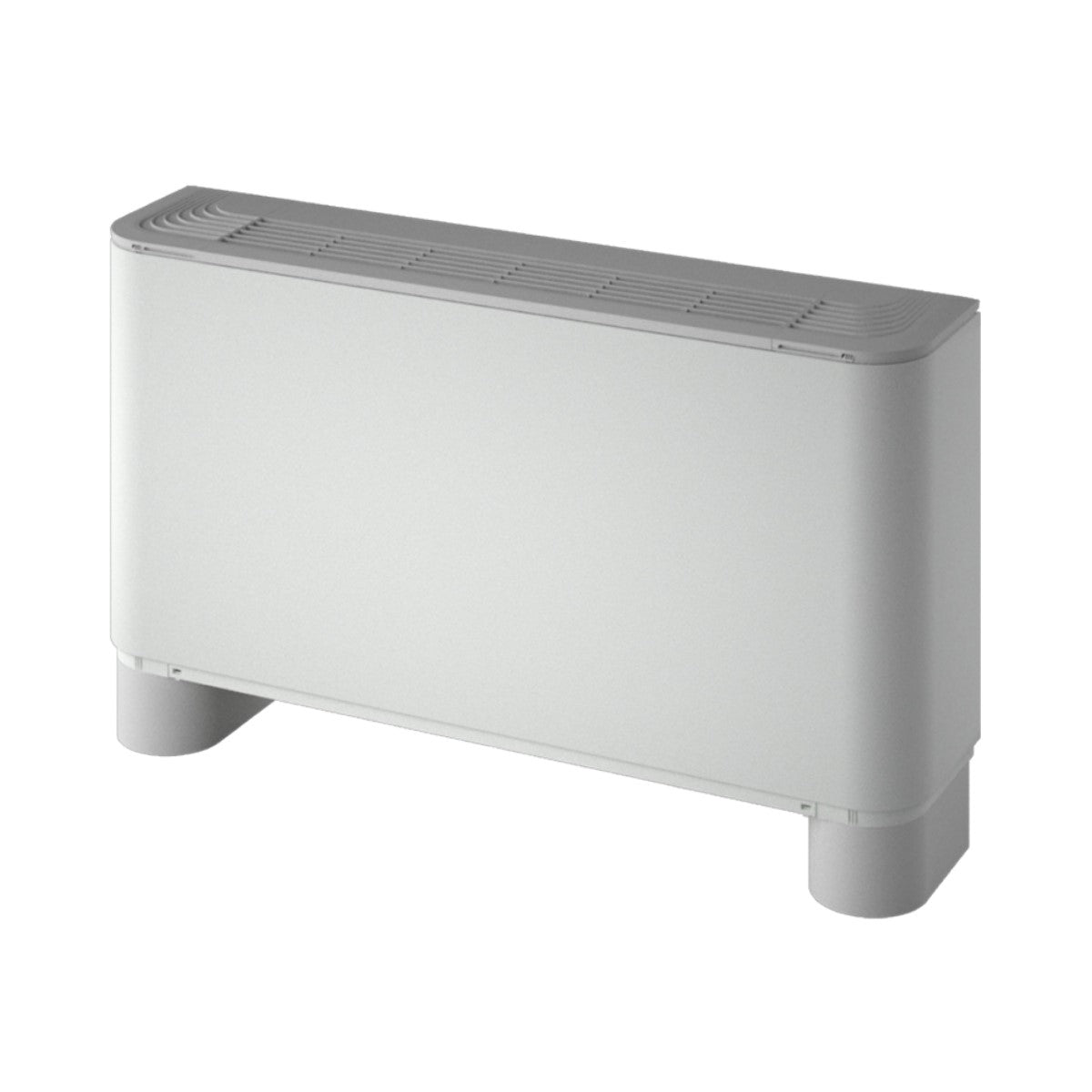

AERMEC Fan Coil fan coil mod. FCZ-ACT 600 with electronic control included

COMPLETE WITH SWITCH

AERMEC FAN COIL FAN COIL model FCZ-ACT 600 with electronic control

Technical features

• version with electronic thermostat
• vertical installation only - for two-pipe systems
• Kw hot-cold (High): 2.40-1.00
• Dimensions with feet (HxWxD): 576 x 1320 x 220 (mm)
• Weight without feet: 13 kg
• White color
• RAL 9003 casing
• Head and sockets RAL 7047

General characteristics

Aermec FCZ fan coils

Making use of the exceptional experience gained with fan coils, Aermec presents the new FCZ series where elegant design is combined with cutting-edge performance in terms of sound level and energy consumption. They can be installed in any type of 2/4 pipe system and in combination with any heat generator even at low temperatures and thanks to the availability of various versions and configurations, it is easy to choose the optimal solution for any need.

The FCZ series fan coils are suitable for air conditioning. These machines with a renewed design are available in various configurations depending on the installation position, with the possibility of being ducted. They are characterized by multi-speed motors coupled to ABS fans with an impeller equipped with aerofoil fins and an inspectable screw. This feature gives the machine a clear reduction in the noise level emitted, as well as a reduction in the electrical absorption of the motor, compared to traditional fans with a metal structure. The unit equipped with a 3 or 4 row coil can additionally have a 1 or 2 row secondary coil for 4 pipe system configurations. T-touch thermostat, available as an accessory, equipped with NFC technology to control the fan coil with a smartphone. FCZ are compatible with the VMF management system. (Features vary depending on models)

Cooling capacity: 1 ÷ 6.81 kW
Thermal power: 2.4 ÷ 15.52 kW
Cooling and heating
Floor installation
Wall installation
Ceiling installation
Touch control (Option)
Centralized control (Option)
Compatible with the VMF (Variable Multi Flow) system (Option)
For two-pipe systems
For four-pipe systems

Characteristics:

• Shell RAL9003, Header RAL 7047
• Three-speed centrifugal fan.
• Electric motors with permanently inserted capacitors
• Protective metal cabinet with anti-corrosion polyester paint
• Adjustable air distribution grille for U version. By closing the grille, the fan coil turns off automatically
• Low pressure drop in heat exchange coils
• Easy installation and maintenance
• G2 class air filter for all versions, easy to remove and clean. In the APC versions, air purification is ensured by the Plasmacluster purifier
• Removable and inspectable augers for easy and effective cleaning
• Reversibility of the hydraulic connections during installation only for units with main, standard or increased battery (Not reversible for units with secondary battery).
• In units with the T-Touch electronic thermostat and the ThermApp application, it is possible to set the operating modes and weekly time programming by simply placing the smart device on the fan coil. It is also possible, using the graphical interface of the App, to access numerous other information such as the alarm list, the nearest Sat, etc. Available for Android operating systems

Versions Without on-board control Vertical and horizontal installation:

FCZ_U
FCZ_UA

Vertical installation

FCZ_DS
FCZ_AS

Versions With on-board control Vertical installation only:

FCZ_D
FCZ_A
FCZ_ACT
FCZ_APC

Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• marca: Aermec
• modello: Ventil_FCZ-ACT-600
• potenza in kw: 6
