FUJITSU TRIAL SPLIT WALL INVERTER Air Conditioner SLIDE LU 7+9+12 series with AOYG18LAC3 7000+9000+12000 SLYDE

Overview

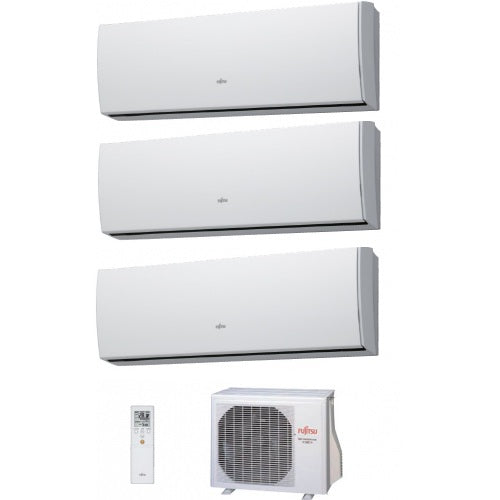

FUJITSU TRIAL SPLIT WALL-MOUNTED INVERTER AIR CONDITIONER SLYDE LU SERIES 7+9+12 BTU: Multi split Fujitsu inverter composed of ASYG07LUC + ASYG09LUC + ASYG12LUC with external unit AOYG18LAC3 (3x1).

Technical specifications

INTERNAL UNITS:

1) Model:

Internal Unit catalog code: ASYG07LUC

Type: Wall - Inverter

Power: 7000 btu/h

Characteristics:

kW category: 2

Air flow (maximum) mü/h: 570

Sound pressure (QLMH) (dB(A)): 21-28-30-35

Refrigeration lines (liquid-gas) mm: 6.35-9.52

Dimensions (ALP) (mm): 282x870x185; 9.5kg

2) Model:

Internal Unit catalog code: ASYG09LUC

Type: Wall - Inverter

Power: 9000 btu/h

Characteristics:

kW category: 2.5

Air flow rate (maximum) mü/h: 600

Sound pressure (QLMH) (dB(A)): 21-28-32-36

Refrigeration lines (liquid-gas) mm: 6.35-9.52

Dimensions (ALP) (mm): 282x870x185; 9.5kg

3) Model:

Internal Unit catalog code: ASYG12LUC

Type: Wall - Inverter

Power: 12000 btu/h

Characteristics:

kW category: 3.5

Air flow rate (maximum) mü/h: 660

Sound pressure (QLMH) (dB(A)): 21-31-34-37

Refrigeration lines (liquid-gas) mm: 6.35-9.52

Dimensions (ALP) (mm): 282x870x185; 9.5kg

OUTDOOR UNIT:

Model:

Catalog code: AOYG18LAC3 (3x1)

Max indoor units: up to 3 indoor units

Energy efficiency:

SEER/EER (W/W) : 6.70/4.00

SCOP/COP (W/W) : 4.30/4.28

Energy Efficiency Class (Cooled): A++

Energy Efficiency Class (Heating): A+

Cooling consumption kWh/a: 274

Heating consumption kWh/a: 1627

Performance:

Rated cooling power (kW): 5.4

Cooling power absorbed (kW): 1.35

Nominal heating power (kW): 6.8

Absorbed heating power (kW): 1.59

Noise (Sound pressure) Hi dB: 46

Noise level (sound power) Hi dB: 65

Characteristics:

Power (V/Hz/?): 220~240/50/1

Refrigerant gas: R410A

Maximum pipe length m: 50

Maximum pipe level difference m: 15

Dimensions:

Outdoor Unit (ALP) (mm): 700 x 900 x 330; 55 kg

Main features

Multisplit Wall Inverter Technology

Optimal performance, cleaning and disinfection of the environment, low energy consumption... Thanks to its advanced technology, Fujitsu Split Wall Inverter equipment offers multiple and varied benefits to help the user enjoy the greatest comfort at home.

Energy saving The Inverter technology eliminates peaks during compressor start-up by modulating the number of revolutions. In this way, a final energy saving of 50% is achieved compared to conventional models.

DC Inverter System It allows the room temperature to be reached 15% quicker than conventional models and avoids temperature fluctuations, improving the feeling of comfort.

Centralized control UTY-DMMYM (solper multi 8)

The centralized control allows the control of 8 indoor units. Functions such as: temperature, fan speed, timer etc. can be selected for each individual indoor unit.

Courtesy functions:

Large backlit LED screen.

Stat icons with easy to understand images.

9 languages ​​available.

Wellbeing in all rooms respecting the design of the home

By distributing several internal units in the various areas of the home, the desired temperature is achieved evenly. Fujitsu Multi Split Inverter systems can combine from 2 to 8 internal units with a single external unit, which, in addition to offering great placement versatility, prevents the external aesthetics of the home from being modified.

Clean Air

The wall-mounted appliances of the Multisplit Inverter range have a standard ion deodorizing filter to eliminate dirt and bad odors. It also has a bacterial filter which absorbs dust, spores and other organisms dangerous to health.

Wide range of external units

The Fujitsu Multi Split Inverter range is one of the most complete on the market, with a total of 6 external units it adapts to all users' air conditioning needs: 2x1 external units, 3x1 external units, 4x1 and 8x1 external units.

New F Series II

High efficiency exchanger

This range equipped with the latest Inverter technology allows you to achieve high energy efficiency values, among the best on the market, and obtain greater comfort and economic savings.

Maximum Flexibility

Indoor units can work individually at the same time. Combinations of 2 high-power indoor units can also be created with 3 and 4x1 outdoor units.

Easy Installation

Thanks to the possibility of reaching considerable lengths for the pipes, the external units can be installed almost anywhere. Up to a maximum of 70m in overall length and 15m of height difference supported by the AOY30L model pipes.

Slide LU wall unit

Slide is a new furnishing element thanks to its elegant design and its ultra-compact dimensions. Furthermore, it will allow you to obtain an unparalleled level of comfort together with the lowest energy consumption.

Warranty

All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
