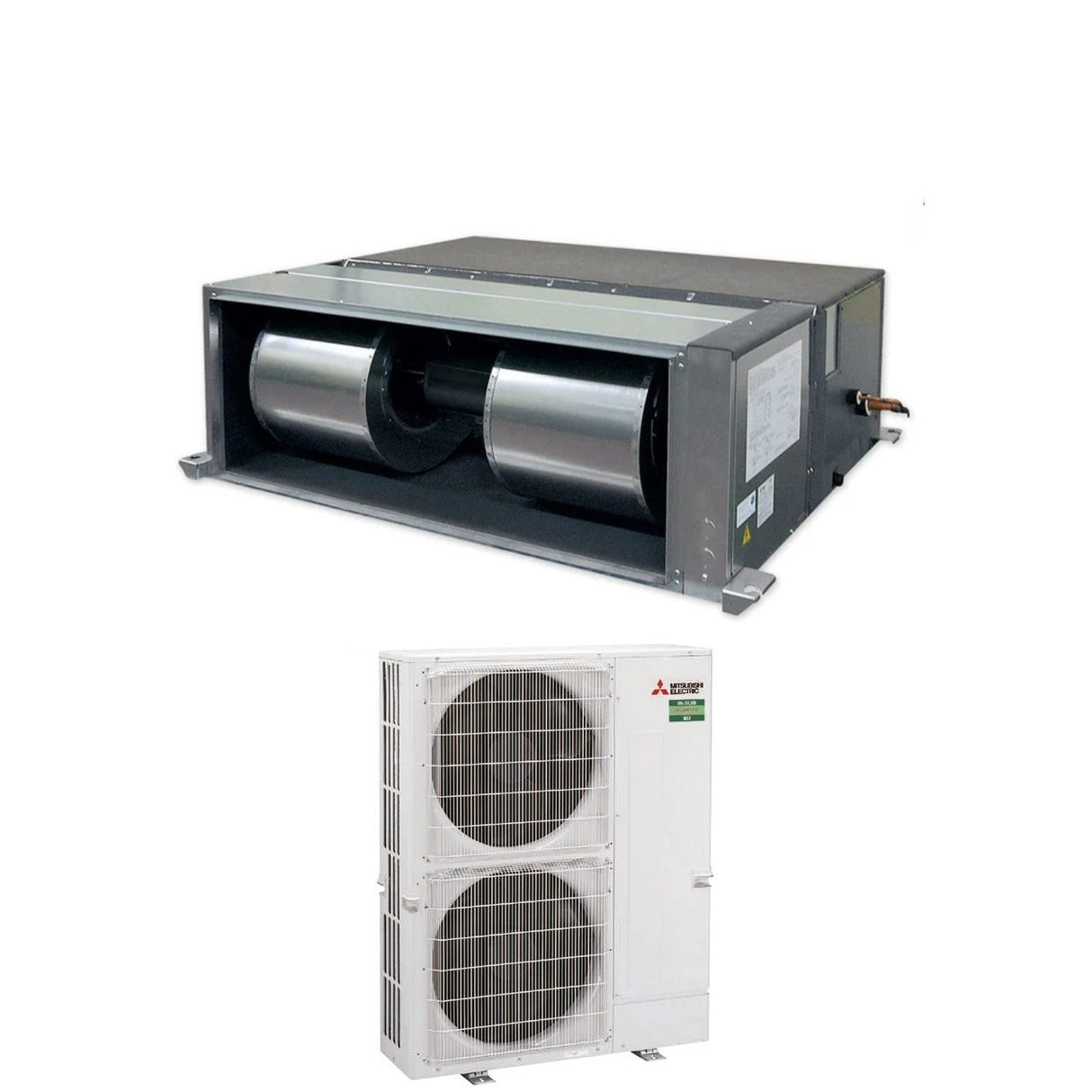

Mitsubishi Electric Air Conditioner Ducted Power Inverter High Prevalence 65000 Btu PEA-M200LA + PUZ-ZM200YKA Three-phase R-32 Wi-Fi Optional
Mitsubishi Electric Air Conditioner Ducted Power Inverter High Prevalence 65000 Btu PEA-M200LA + PUZ-ZM200YKA Three-phase R-32 Wi-Fi Optional is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
ATTENTION ! This product is made to order and will be shipped in 10 working days
Technical features
- Indoor unit catalog code: PEA-M200LA
- Outdoor unit catalog code: PUZ-ZM200YKA
- Power: 65000 btu
- Optional Wi-Fi card: MAC-567IF-E
- Optional remote control: PAR-FL32MA-E
- Optional Infrared Receiver: PAR-FA32MA-W
- Optional White Prism Remote Control: PAR-CT01MAA-SB
- Optional Black Prism Remote Control: PAR-CT01MAA-PB
- SEER : -
- SCOP : -
- Energy Efficiency Class in Cooling: -
- Heating Energy Efficiency Class: -
- Annual Energy Consumption in Cooling: -
- Annual Energy Consumption in Heating: -
- Cooling Capacity: 19 kW
- Heating Capacity: 22.4 kW
- Cooling absorption: 5,757 kW
- Heating absorption: 6.4 kW
- Indoor Unit Treated Air: 42~60 m 3 /min
- Internal Unit Sound Power Level: 64 dB(A)
- External Unit Sound Power Level: 77 dB(A)
- Indoor Unit Sound Pressure Level: 35~43 dB(A)
- External Unit Sound Pressure Level: 59 dB(A)
Electrical Data
- Power (V,Hz, Ø): 380~415/50/3
- Refrigerant gas: R32
- Operating range
- - Cooling: -15° ~ 46° C
- - Heating: -20° ~ 21° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 25.4 mm (1")
- Maximum length of pipes: 100 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 470x1370x1120 mm
- Internal Unit Weight: 87 Kg
- External Unit Dimensions (HxWxD): 1338x1050x330 mm
- External Unit Weight: 137 Kg

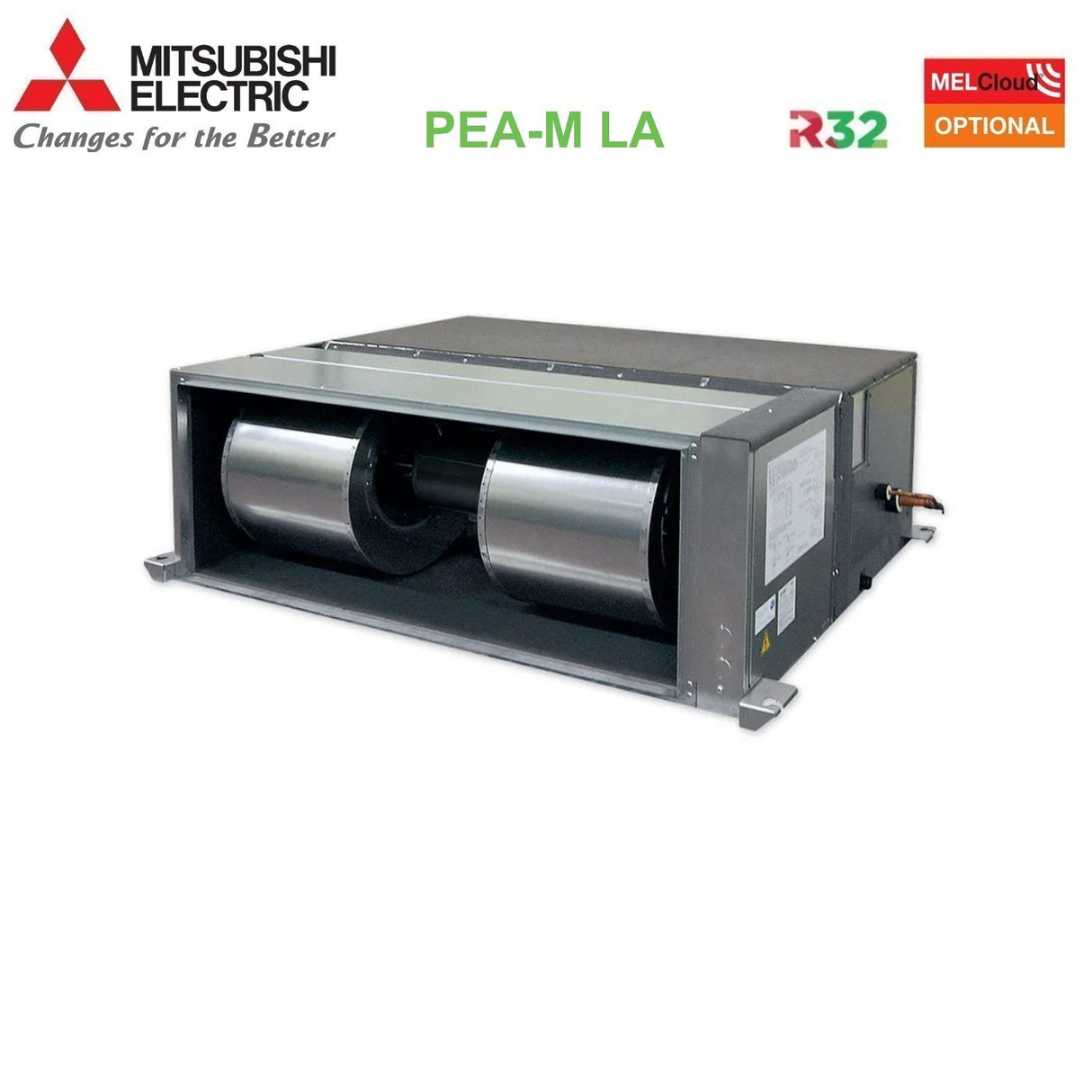

Mitsubishi Electric Ducted High Head PEA-M LA
Compact External Unit
While delivering a nominal power of up to 25 kW in cooling, the PEA-M LA ducted units have an external unit in a double fan configuration, avoiding the bulk of traditional high-power condensing units in top-flow configuration
DC Inverter fan motor
In compliance with the ErP 2018 directive, the new PEA-M LA indoor units feature a DC Inverter motor which allows continuous regulation of the rotation speed
High static pressure of the internal fan
The static pressure up to 150 Pa allows a wide choice in the sizing of the ducts to be able to position the air diffusers in the most suitable way
MELCloud, Wi-Fi control
MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.
One word is enough for you!
MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units
Power Inverter R32 external units
The new R32 Commercial Power Inverter range outdoor units offer numerous advantages.
High seasonal efficiency: The use of R32 refrigerant guarantees an increase in seasonal cooling efficiency
Increased piping length: Increased installation flexibility for sizes 60-140 thanks to greater piping length
Nominal capacity in heating down to -3°C: Nominal capacity is maintained down to -3°C, facilitating use in harsh climates
• Compatibility with fan motor for prevalence
• Energy Monitoring MelCloud
Power Inverter
Energy efficiency finds its maximum expression in the Power Inverter series. The wide operating range and maximum flexibility in installation, thanks to particularly long refrigeration lines and the possibility of reusing existing pipes complete the offer. The Power Inverter Units are equipped with innovative Power Receiver technology and rotary compressors to achieve maximum efficiency
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 249.0 kg
- costospedizionecad: IT124;AD382;AT200;BE216;BG290;HR272;DK405;EE398;FR298;DE213;LV299;LT279;LU175;NL229;PT226;CZ194;SK218;SI219;ES208;SE475;HU179;CH294;
- gas: R-32
- marca: MITSUBISHI ELECTRIC
- metri quadri : 180 - 200 m2
- modello: PEA-M200LA + PUZ-ZM200YKA
- potenza btu: 65000
