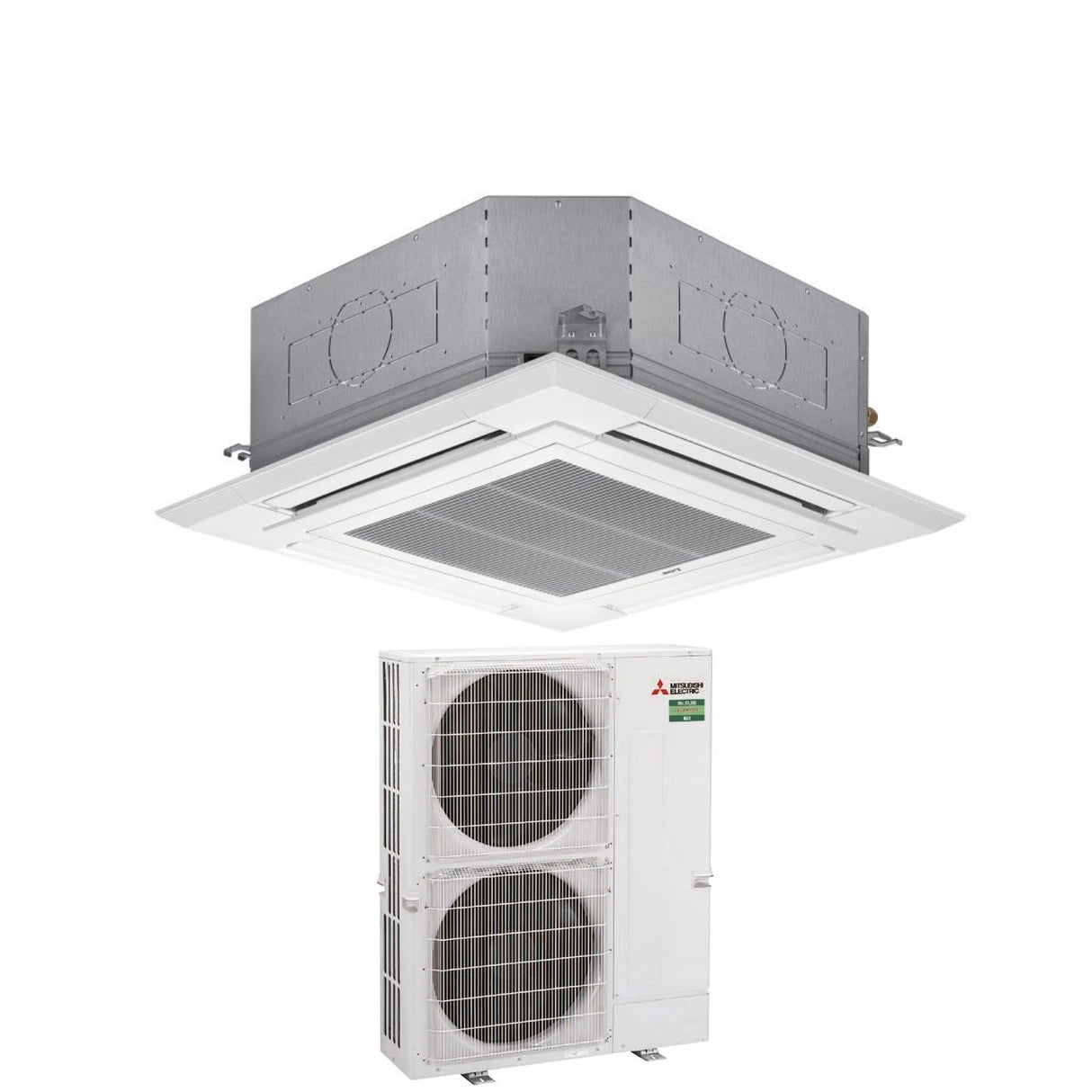

Mitsubishi Electric Air Conditioner 90x90 4-Way Power Inverter Cassette 34000 Btu PLA-M100EA + PUZ-ZM100VKA Single Phase R-32 Wi-Fi Optional with Grille Included

• Liquid pipe diameter: 9.52 mm (3/8")
• Gas pipe diameter: 15.88 mm (5/8")
• Maximum length of pipes: 100 m
• Maximum height difference Internal Unit / External Unit: 30 m

Dimensions and weight

• Internal Unit Dimensions (HxWxD): 298x840x840 mm
• Internal Unit Weight: 24 Kg
• Grid dimensions (HxWxD): 40x950x950 mm
• Grill Weight: 5 Kg
• External Unit Dimensions (HxWxD): 1338x1050x330 mm
• External Unit Weight: 116 Kg

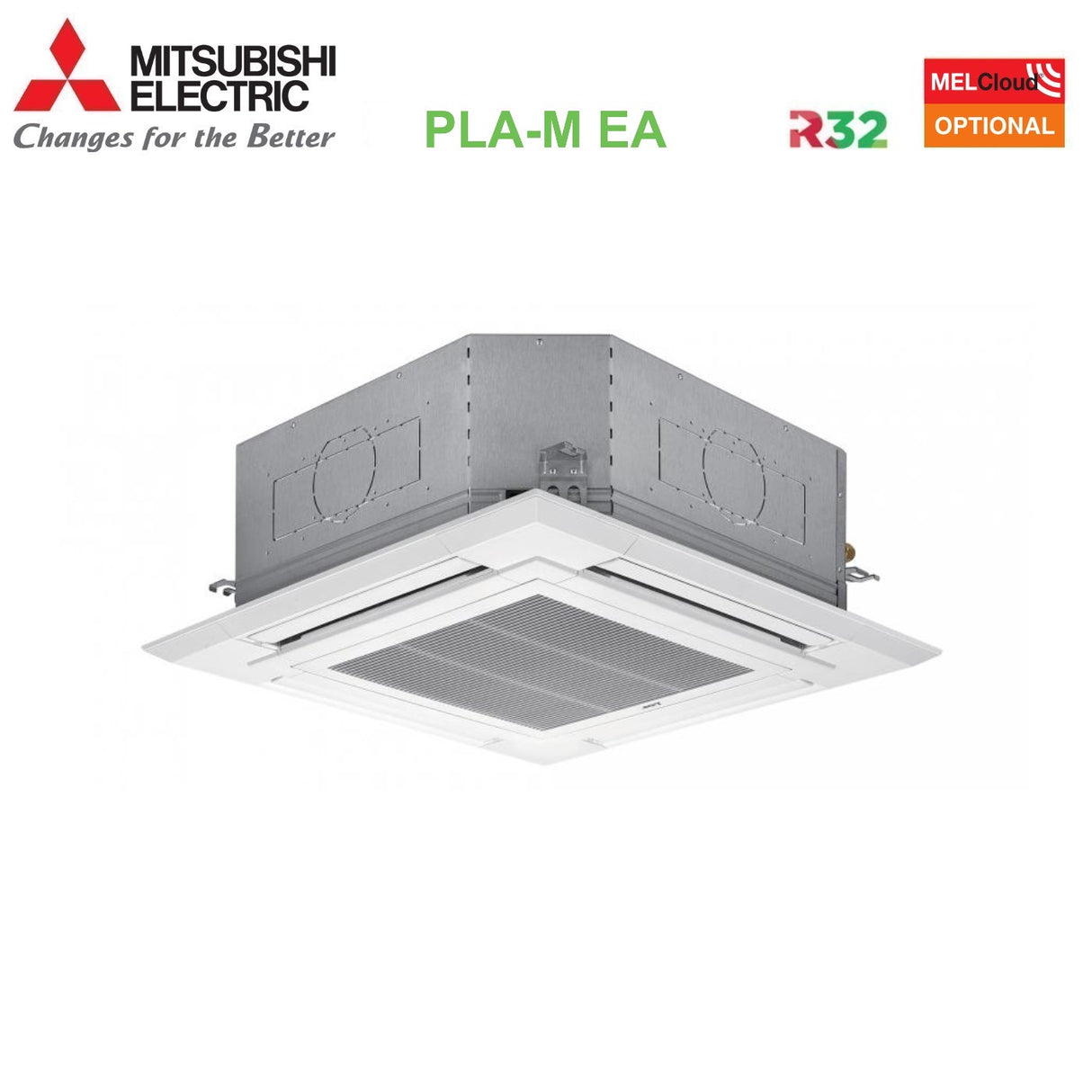

Mitsubishi Electric P-series 4-way cassette

Units range of new units designed to create a more comfortable environment, which guarantees maximum satisfaction for users.

Horizontal flow

The new internal unit is equipped with the "horizontal flow" function which allows for an air throw that touches the ceiling (Coanda effect), thus increasing the feeling of comfort perceived by the occupants

Condensate drain pump included

The units of the PLA series are not only easy to install but also The provision of a drain pump with a head of 550 mm facilitates the drainage of condensation water even in critical conditions

3D i-see sensor

The new 4-way recessed ceiling cassette is equipped with the exclusive "3D I-see Sensor", a 360° rotating sensor with a data acquisition interval of 3 minutes.

It is not only able to detect the temperature , but also the presence , position and number of people in the room

Thanks to it it is therefore possible to manage regulation logics based on the presence of occupants in the air-conditioned environment, with considerable energy savings

Energy saving

Thanks to the Energy Saving mode, 3D I-see allows you to modulate the air conditioning power based on the number of people present in the room: when the crowding index corresponds to 30% of the total, the system is able to self-regulate, allowing a saving of conditioning energy equivalent to approximately 1°C. When the crowding index approaches 0% the system turns off automatically, avoiding energy waste. The 3D I-see sensor also has the Seasonal airflow function which allows the set-point temperature to be maintained by changing the operating mode from air conditioning to ventilation and guaranteeing further savings

Comfort

By activating the direct/indirect function the user will be able to decide whether or not to direct the air flow towards the areas where the presence of people is detected. Thanks to the Seasonal airflow mode, the system is able to maintain an excellent level of comfort, avoiding cold drafts in cooling and counteracting the stratification problem typical of the heating mode

Energy Save Degree of Crowding

The temperature is controlled based on the number of people detected in the room by the 3d-i see sensor. If the degree of crowding is around 30%, 1°C less power is delivered

Energy Save Empty Room

When the room is empty for more than 60 minutes, the power output is reduced by 2°C

When no presence is detected for more than 120 minutes, the outdoor machine will automatically turn off

MELCloud, Wi-Fi control

MELCloud is the new Wi-Fi control for your Mitsubishi Electric system. By taking advantage of the support of the cloud, the "Cloud", to transmit and receive information and the optional dedicated Wi-Fi interface MAC-567IF-E, you can easily control your system wherever you are via your PC, tablet or smartphone ; all you need is an internet connection. The MELCloud service was created to have maximum compatibility with PCs, Tablets and Smartphones thanks to dedicated Apps or via Web Browser.

One word is enough for you!

MELCloud is compatible with Google Home. By saying «Hey Google!», or «Ok Google!» you have full control of the climate control system. MELCloud is compatible with Amazon Alexa. One word will be enough to freely manage your air conditioning units

Power Inverter R32 external units

The new R32 Commercial Power Inverter range outdoor units offer numerous advantages.

High seasonal efficiency: The use of R32 refrigerant guarantees an increase in seasonal cooling efficiency

Increased piping length: Increased installation flexibility for sizes 60-140 thanks to greater piping length

Nominal capacity in heating down to -3°C: Nominal capacity is maintained down to -3°C, facilitating use in harsh climates

• Compatibility with fan motor for prevalence

• Energy Monitoring MelCloud

Power Inverter

Energy efficiency finds its maximum expression in the Power Inverter series. The wide operating range and maximum flexibility in installation, thanks to particularly long refrigeration lines and the possibility of reusing existing pipes complete the offer. The Power Inverter Units are equipped with innovative Power Receiver technology and rotary compressors to achieve maximum efficiency

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
