Baxi Condensing Gas Boiler Model LUNA DUO-TEC IN+ 28 GA Methane Complete with Fume Exhaust Kit Split Fume Kit

Technical features

• ErP energy efficiency class (heating and DHW): A
• Load profile: XL
• Nominal heat input 28.9 kW
• Nominal heat output 28 kW
• Energy efficiency (92/42/EEC) ****
• Nominal efficiency 80/60°C % 97.6
• Yield at 30% % 108.8
• Heating circuit water temperature adjustment. °C 25-80
• Domestic water temperature adjustment °C 35-60
• Domestic water production ∆T 25°C l/min 16.1
• Minimum domestic water flow rate: 2 l/min
• Minimum operating temperature: -15°C
• Expansion/pre-charge vessel capacity l/bar: 8/0.8
• NOx class (EN 483): 5
• Electrical power W 99
• IPX5D protection rating
• Dimensions (hxwxd) - with case: 1170 x 600 x 245 mm
• Dimensions (hxwxd) - boiler 770 x 470 x 238 mm; 32.5kg
• Fuel: METHANE

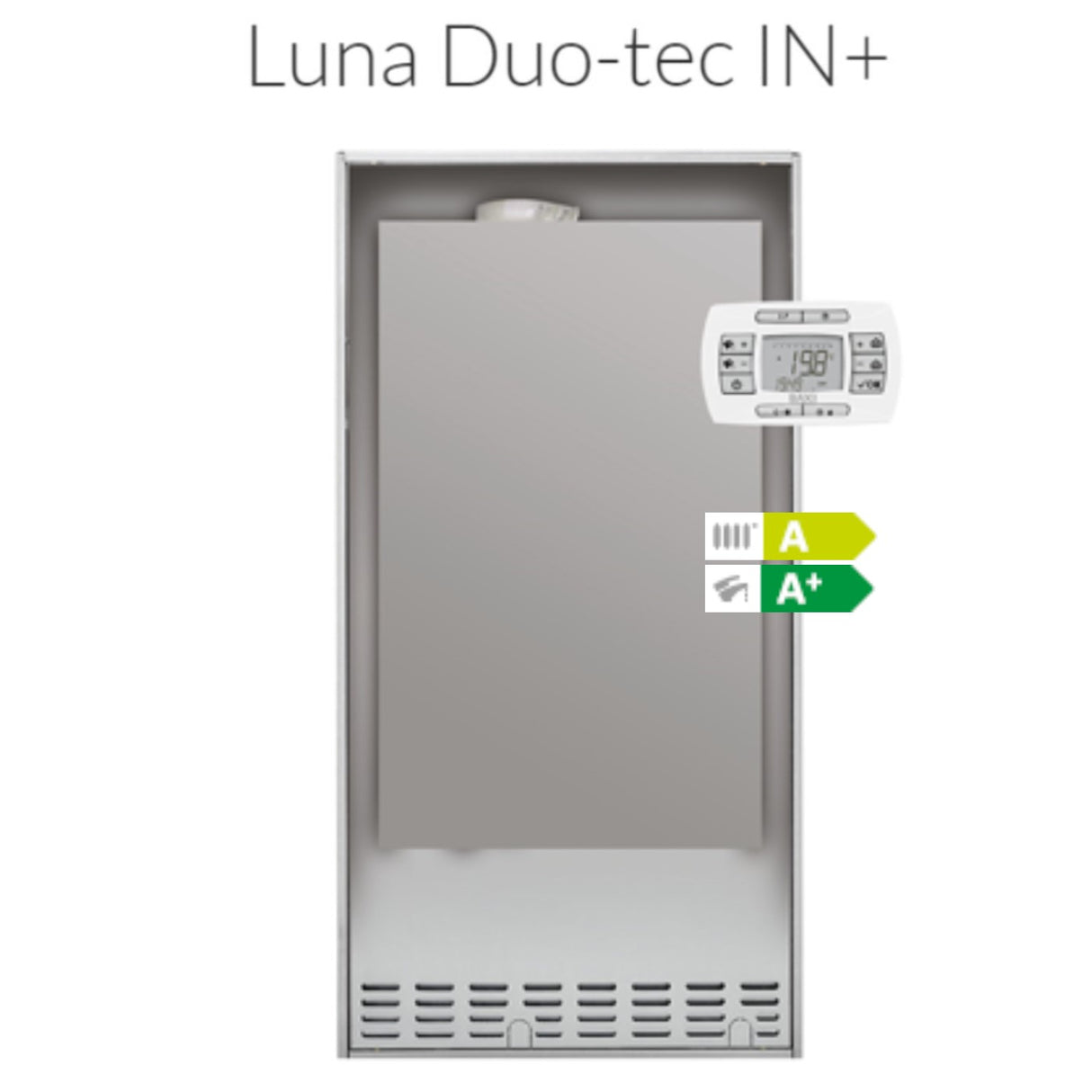

Luna Duo-Tec IN+

The efficiency of compact built-in comfort

Baxi has always offered the ideal system solution for any type of home: for this reason the Duo-tec+ range is expanded with built-in models and for outdoor installation.

Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler favor its installation in small/medium-sized apartments, and in general in all residential units where efficient space management is an important objective (for example in technical rooms or in the presence of containment boxes )

Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler favor its installation in small/medium-sized apartments, and in general in all residential units where efficient space management is an important objective (for example in technical rooms or in the presence of containment boxes ). Inside the packaging there are the bracket and installation fittings for inserting the boiler into the containment box

Characteristics:

• Wide modulation range up to 1:7, greater efficiency and silence
• GAC (gas adaptive control): automatic combustion control
• Automatic system loading system
• Minimum operating temperature: -15°C
• Remote digital control panel with LCD display
• Prepared for combination with the Baxi integrated solar system
• High efficiency circulation pump with total modulation
• Ultra-compact dimensions: 770x470x238 mm (boiler)
• STANDARD installation kit (gas tap / gas inlet / telescopic fittings)
• Anti-freeze function and IPX5D protection rating

Digital control panel

The Duo-tec+ range of boilers is equipped with a digital control panel with backlit LCD display, simple to use thanks to dedicated and independent buttons to regulate the temperature of the domestic water and heating. The display allows you to view all the information and set the operating parameters clearly and immediately.

---

The innovative GAC ( Gas Adaptive Control ) automatic combustion control system guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adapt the thermal power produced to the actual power dissipated by the building avoiding excessive overheating/cooling of the building.

---

Wide 1:7 modulation range

• greater efficiency given by fewer switching on and off: with a high modulation ratio, the reduction of continuous on/off cycles leads to a significant reduction in consumption (8-10%) and an equal reduction in polluting emissions

• adjustment of the thermal power produced to the power dissipated, thus avoiding excessive overheating/cooling of the rooms

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: Baxi
• metri quadri : 180
• modello: Luna Duo-Tec In+ 28 Ga
• potenza in kw: 28
• potenza nominale: 28
• superficie riscaldabile mq: 180
