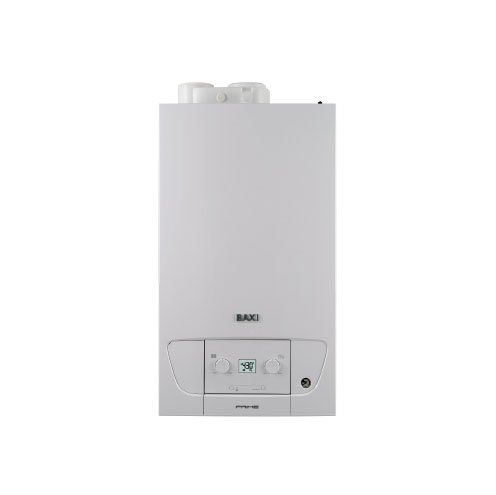

Baxi PRIME 26 Methane / LPG Condensing Boiler Complete with fume exhaust kit

ATTENTION VALID UNTIL STOCKS LAST

Technical features

• Model: Prime 26
• Product code: A7715732
• Type: Condensation
• Installation: Recommended for interiors
• Fuel: Methane or LPG

• Heating energy class: A
• Energy class in DHW production: A
• Load profile: XL

Warm-up performance

• Nominal heating heat input: 20.6 kW
• Reduced heat input: 4.9 kW
• Nominal heat output Pnominal: 20 kW
• Useful thermal power at thermal power. name and high temp. regime* P4: 20 kW
• Useful thermal power at 30% power. term. name and low temp. regime** P: 6.7 kW
• Heating circuit water temperature adjustment: 25/80 °C
• Minimum heating circuit water pressure: 0.5 bar
• Maximum heating circuit water pressure: 3 bar

DHW production performance

• Nominal DHW heat input: 26.7 kW
• Nominal domestic hot water heat output: 26 kW
• Expansion/pre-charge vessel capacity: 7/0.8 l/bar
• Domestic water temperature adjustment: 35-60 °C
• Specific flow rate according to EN 13203-1: 12.4 l/min
• Domestic water production ∆T 25°C: 14.9 l/min
• Minimum domestic water flow rate: 2 I/min
• Minimum dynamic pressure in the domestic hot water circuit: 0.15 bar
• Maximum domestic water circuit pressure: 8 bar

Yield

• Seasonal space heating energy efficiency ŋs: 93 %
• Useful efficiency at nominal heat output at high temperature regime: 88 %
• Useful efficiency at 30% nominal thermal power and low temperature regime: 97.8%
• Useful efficiency at average temperature 70 °C: 97.8%
• Useful efficiency at 30% at 30 °C return temperature: 108.6 %
• Intermediate useful efficiency at medium temperature: 70 °C %
• Minimum operating temperature: -5°C
• Degree of protection: IPX5D
• Emissions of nitrogen oxides NOx: 38 mg/kWh
• NOx class: 5
• Electrical power: 84 W
• Sound power level: 48 dB(A)

Dimensions and weight

• Dimensions (HxWxD): 700x395x279 mm
• Weight: 26 kg

---

Baxi PRIME condensing boiler

The Baxi Prime condensing boiler was designed with the principle of facilitating the replacement of old conventional boilers without excessive work, giving very high performance while offering maximum comfort, respecting the requirements of the Ecodesign and Labeling Directives. Ideal for interiors as it has ultra-compact dimensions and takes up minimal space, it matches any decor. Having the same center distances as the hydraulic connections of the conventional BAXI boilers to be replaced and the installation is extremely facilitated, and also the front access to the electrical connection allows to speed up connection times.

Furthermore, it also offers a simple connection to collective flues having an integrated smoke non-return valve (clapet valve), respecting the new regulation 7129-3:2015 which gives the possibility of connecting to a collective flue in positive pressure only appliances declared suitable by the manufacturer for this application and equipped with a non-return device (clapet), designed to prevent combustion products from flowing through connected and momentarily turned off appliances.

Advantages

• Easy use thanks to the control panel equipped with knobs
• Backlit LCD display
• Connection to a rigid and flexible Ø 50 mm exhaust pipe: solutions for renovating flues;
• Easy installation with ultra-compact dimensions
• Ideal for replacing conventional boilers thanks to the central flue exhaust
• Greater efficiency and silence with 1:5 modulation range
• Dedicated app for smartphones and tablets for remote boiler control
• Prepared for combination with the Baxi integrated solar system
• Fume exhaust kit and fittings
• Methane-operated boilers that can be transformed into LPG and propane air by means of specific adjustments (conversion kit not necessary)
• Connection to pressurized collective flues

---
