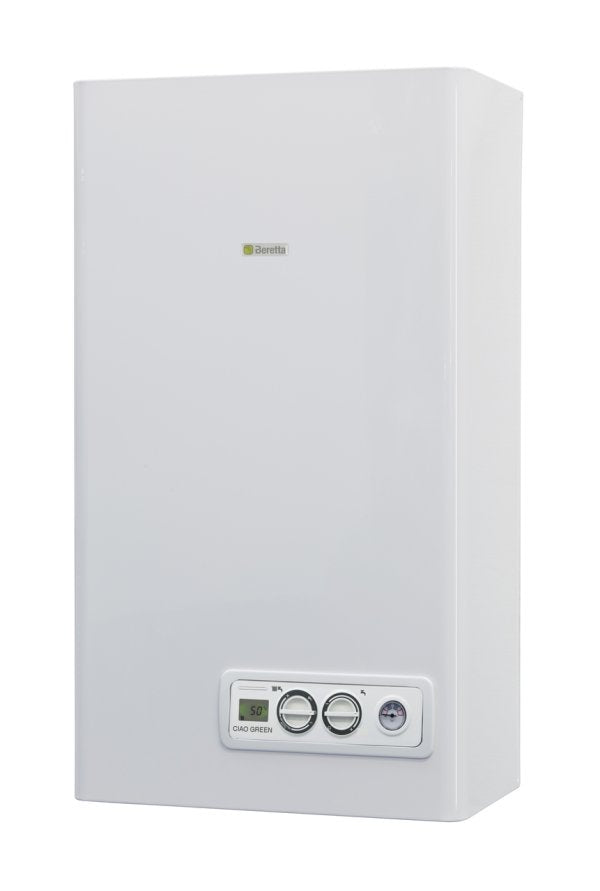

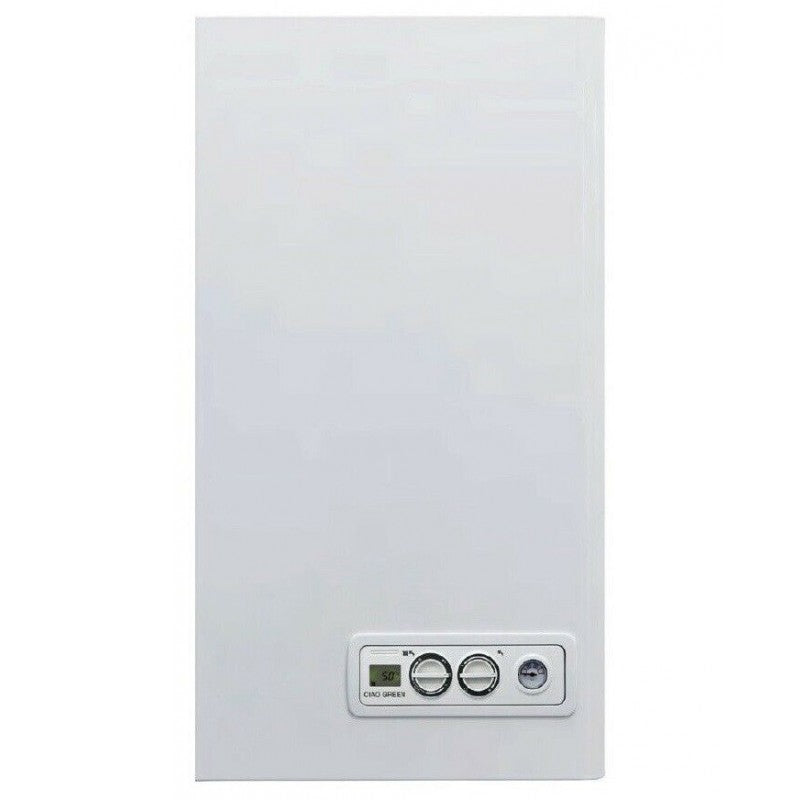

Beretta CIAO GREEN 25 CSI LPG Condensing Boiler 20095437 Complete with fume exhaust kit

Technical features

• Model: Ciao Green 25 CSI
• GPL code: 20095437

• Class A heating energy efficiency
• DHW energy efficiency profile XL Class A
• Seasonal heating efficiency % 93

Heating/DHW operation characteristics:

• Nominal heating/DHW heat input: 20/25 kW
• Nominal heating power: 19.50 kW
• Classification European Directive EEC 92/42: ****
• Efficiency at nominal power: 97.5%
• Efficiency at reduced load (30%): 102.2%
• Max electric heating power Watt 69
• IP X5D electrical protection rating
• Expansion tank capacity 8 litres
• Quantity of hot water with Δt=25°C: 14 l/min
• Minimum domestic water flow rate: 2 l/min
• Dimensions (hxwxd) mm 715x405x248; 28kg
• LPG powered

 Legend:

• C (heating + domestic water)
  S (Airtight chamber)
  I (electronic ignition, ionization control).
• Exclusive services: Beretta offers 5 years of peace of mind thanks to the Kasko warranty extension formulas.

---

HELLO GREEN ErP

Ciao Green: high energy efficiency, reduced gas consumption and low emissions.

The entry into force of the European ErP Directive (26.09.2015) provides that generators for the production of heating and domestic hot water are also classified through the appropriate energy label indicating the class. Mandatory labeling provides greater transparency on the characteristics of products which can be easily compared, helping the user to search for those with greater efficiency. Consequently, even with boilers it will be easier to contribute to achieving the "20-20-20" objective set for the year 2020 which consists of: reducing greenhouse gas emissions (CO2) by 20%, increasing by 20% the use of renewable energy and reduce energy consumption in EU countries by 20%.

Condensing exchanger

Beretta's innovative compact aluminum condensing exchanger is assembled with a brazing production process in a controlled atmosphere. In addition to allowing for more uniform heat distribution, aluminum offers high resistance to corrosion for the benefit of greater durability over time.
Aluminum is also chosen for its lightness, excellent conductivity, mechanical resistance, reliability and recyclability.
The condensing exchanger allows a good part of the heat from the fumes to be recovered, reducing losses in the chimney, and a good part of the latent heat, reaching a four-star energy efficiency value (according to European Directive EEC 92/42).
The premix burner optimizes the combustion mixture by reducing NOx emissions to values ​​that place the boiler in Class 5, the highest according to the European Directive EN 677.

Universal installation

Ciao Green is designed to also be installed outdoors in partially protected places or recessed thanks to the dedicated accessories and the board's antifreeze protection up to 0 °C. In colder temperature conditions it is possible to extend the protection down to -10 °C by using the appropriate antifreeze resistor kit together with the siphon antifreeze resistor kit. If the boiler is installed outdoors, without a built-in installation, the lower cover is required for greater protection.

The management

The electronic panel is the brain of boiler management. Simple and intuitive, it allows you to adjust the boiler parameters and activate the numerous functions. A liquid crystal display and LEDs provide information on the status of the device and diagnostic codes. By turning the knobs you can easily and intuitively set the temperature of the heating water and domestic hot water. The panel integrates the Friendly Climate System function.

Characteristics:

• ErP boilers with low energy consumption modulating synchronous circulator (EEI≤0.20)
• Designed according to the ecodesign indications provided for by the European ErP Directive
• Energy Class > heating (class A) > sanitary ware XL profile (class A)
• Seasonal heating efficiency 93%
• Aluminum condensing exchanger, two versions of 25 kW and 29 kW combined and one 25 kW heating only
• Designed following the ecodesign indications of the European ErP Directive
• Class 5 according to European Standard UNI EN 483
• Can also be installed outdoors and recessed using specific kits (optional)
• Display for viewing temperature and diagnostic codes
• IPX5D electrical protection degree
• Prepared for connection to remote control (optional)
• Thermoregulation as standard (external probe optional)
• Hydraulic fittings, gas and sanitary taps (optional)
• Antifreeze kit available up to -10°C (optional)

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: Beretta
• metri quadri : 150
• modello: CALD_266
• potenza in kw: 25
• potenza nominale: 25
• superficie riscaldabile mq: 150
