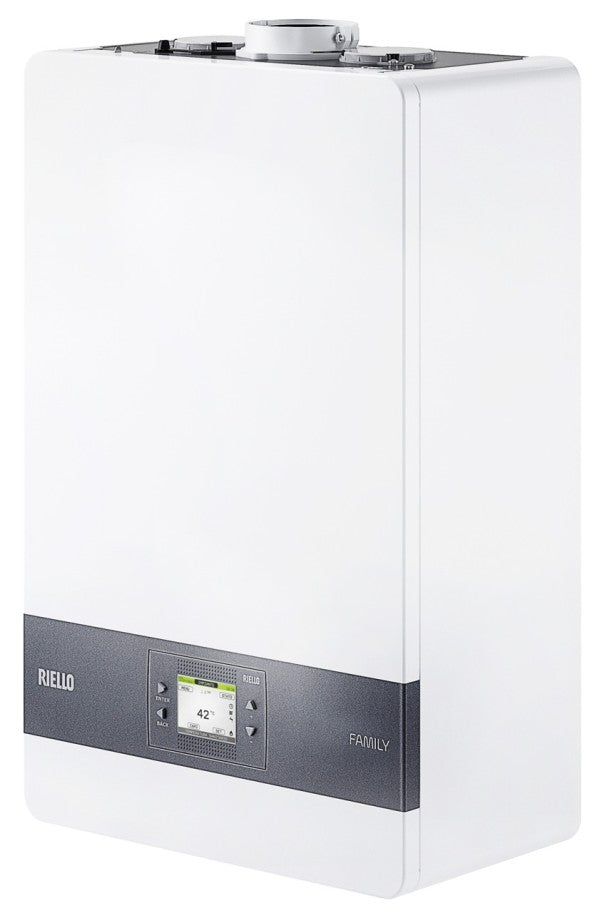

Riello FAMILY 30 KIS Methane Condensing Boiler 20187644 Hybrid Ready Low NOx Complete with Flue Kit

Technical features

• Model: Family 30 KIS
• Product code: 20187644
• Fuel: Methane

Energy efficiency

• Heating energy efficiency class: A
• Sanitary energy efficiency class: A

Heating

• Nominal heat input: 25.00 kW
• Nominal thermal power (80°/60°): 24.33 kW
• Nominal thermal power (50°/30°): 26.50 kW

Healthcare

• Nominal heat input: 25.00 kW
• Nominal thermal power: 31.50 kW
• Combustion efficiency: 97.6%

Performance

• Maximum pressure: 3 bar
• Membrane expansion vessel: 10 litres

Dimensions and weight

• Dimensions (LxHxD): 470x740x350 mm
• Weight: 40.0 kg

Riello Family condensing boiler The perfect synthesis of performance and sustainability

The new Family is the Riello solution for the most demanding user. The primary exchanger, entirely made of stainless steel and with front accessibility to the combustion chamber, guarantees maximum efficiency and reliability over time and the new optimized DHW exchanger ensures exceptional comfort and the best class of merit

Hybrid Ready

FAMILY is born hybrid ready, that is, capable of directly managing, without the need for additional accessories, the components of a multi-energy system, in an efficient and effective way.

System check

The control panel of the new FAMILY range, through its simple and intuitive color display, now also integrates the direct management function of a multi-energy system, without the need for external accessory controls.

Stainless steel exchanger

Primary exchanger in stainless steel, with single coil geometry. Maximum efficiency and reliability.

Low emissions

FAMILY is certified NOx Class 6, the best required by European standards

High efficiency

Maximum comfort and minimum consumption, in heating and sanitary.

Stability of domestic hot water

New optimized plate DHW exchanger, for top-of-the-category performance in terms of efficiency, temperature stability and waiting times.

Quick and easy installation

With FAMILY, installation and access to components are simplified to minimize time and effort.

ACC Combustion

FAMILY is characterized by the advanced electronic combustion control system, which constantly monitors combustion to obtain always optimized consumption and emissions.

Control panel with new hybrid function

With the new FAMILY range, managing a hybrid system is simple and intuitive. The FAMILY display, characterized by a modern and elegant aesthetic, is enriched with the multi-energy system management function. The intelligence of the hybrid system, REC 10CH, integrated into the electronics of the new FAMILY , offers the possibility of managing the available heat sources through the user interface, without the need for an accessory control panel.

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: Riello
• metri quadri : 150
• modello: 20187644
• potenza in kw: 25
• potenza nominale: 30
• superficie riscaldabile mq: 150
