OLIMPIA SPLENDID Fan Coil Fan Coil Inverter Model Bi2 SL AIR 400 with TR Control included Code 01852
OLIMPIA SPLENDID Fan Coil Fan Coil Inverter Model Bi2 SL AIR 400 with TR Control included Code 01852 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
- Product code 01852
- Total cooling yield (a) (E) kW 1.74
- Water flow rate (a) l/h 302
- Battery water content 0.8 l
- Maximum operating pressure bar 10
- 3/4 inch Eurocone hydraulic connections
- Max absorbed power (E) W 19
- Min-max sound power 39/53 dB(A)
- Sound pressure (f) dB(A) 36
- Electrical supply V/ph/Hz 230/1/50
- Dimensions WxHxD 895x599x129mm
- TR (Touch Remote) control included
- B0736 wall-mounted LCD chronothermostat control for MODBUS connection, RS485 - optional
- Possibility of controlling up to 30 units. Selection of desired temperature, operating mode, fan speed, manual/chronothermostat mode. Room probe inserted in the command. Backlit LCD display.

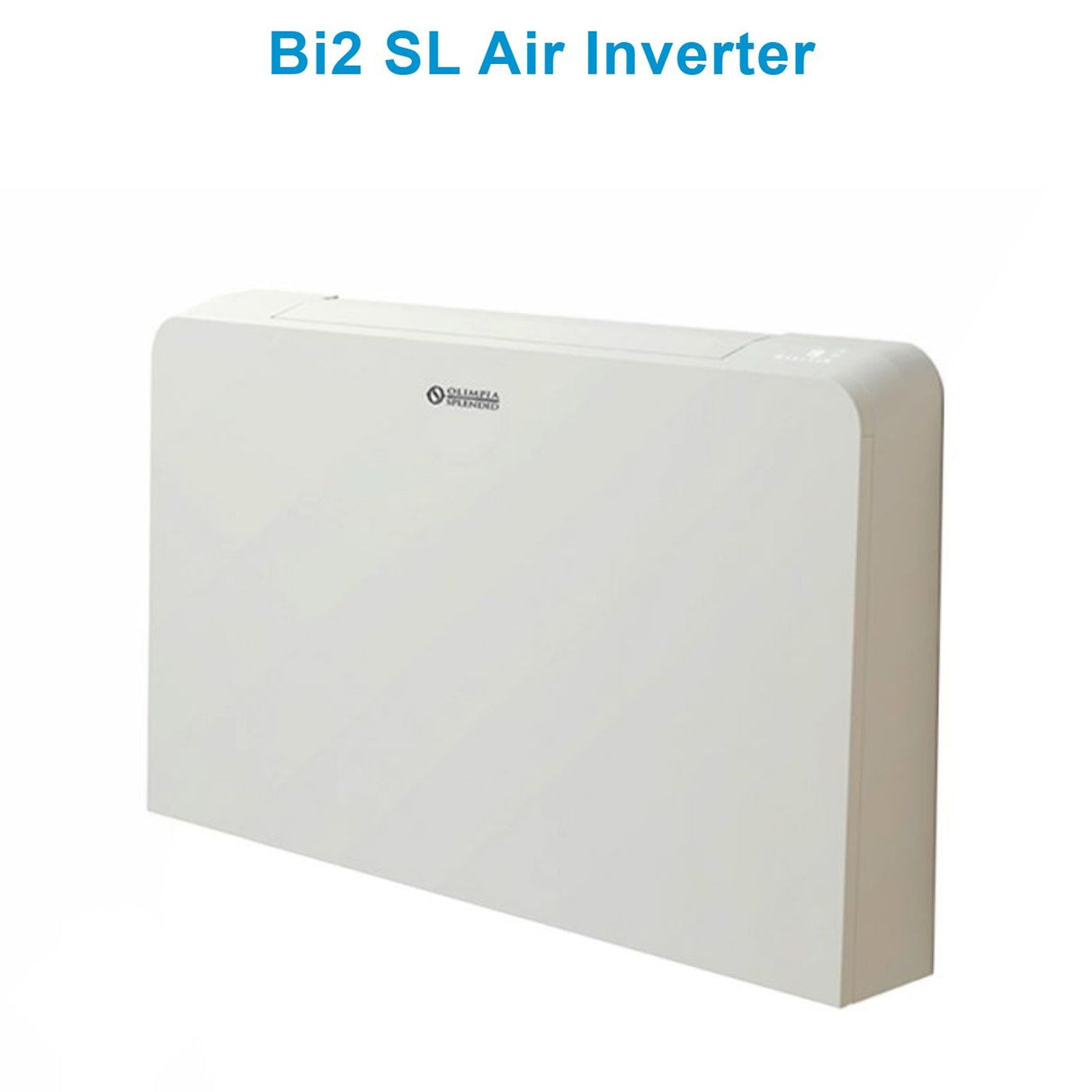

Bi2 SL AIR
Bi2® Air is the system terminal that heats, cools, dehumidifies and filters. Thanks to its integral design, just 12.9 cm thick, installing and maintaining the machine has never been easier! With the innovative integrated multiset control you also have maximum comfort always at hand.

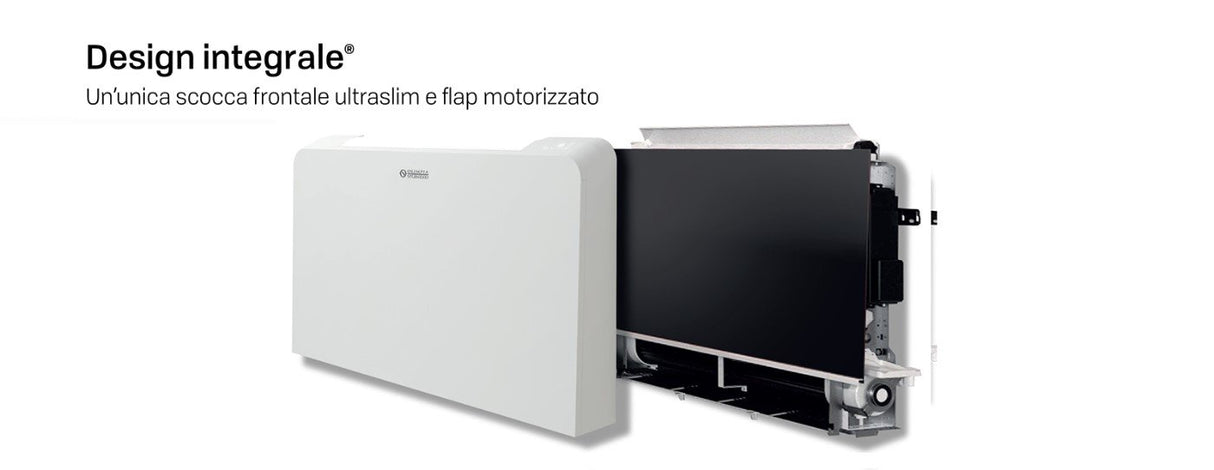

INTEGRAL DESIGN®
Thanks to the essential design and the front body combined with the side sides, the installation and maintenance of Bi2 Air are simplified
- Heats, Cools, Dehumidifies and Filters
- Integral aesthetics with suction from the bottom. Metal front, ABS sides
- Compact: Thickness min 12.9 cm max 15 cm
- Range composed of 5 power models
- DC brushless motor
- Monobloc body for comfortable working
- Motorized steel air delivery flap
- Anti-intrusion grilles on the air intake and outlet
- Removable filters placed on the air intake
- Remote control supplied

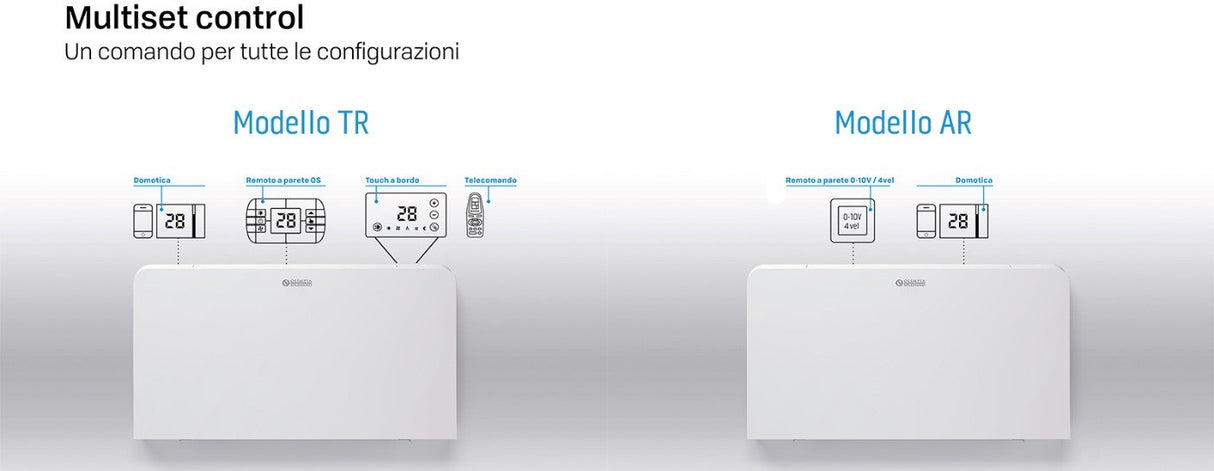

TR COMMAND (Touch Remote): Touch control on the machine and remote control supplied. Through a selection of buttons on the machine, remote control* is possible with wall-mounted remote control (chronothermostat code B0736, optional) or with home automation, through the Modbus RS485 signal protocol
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Specifications
Specifications
- peso: 49.0 kg
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- marca: Olimpia Splendid
- modello: 01852
- potenza in kw: 4
