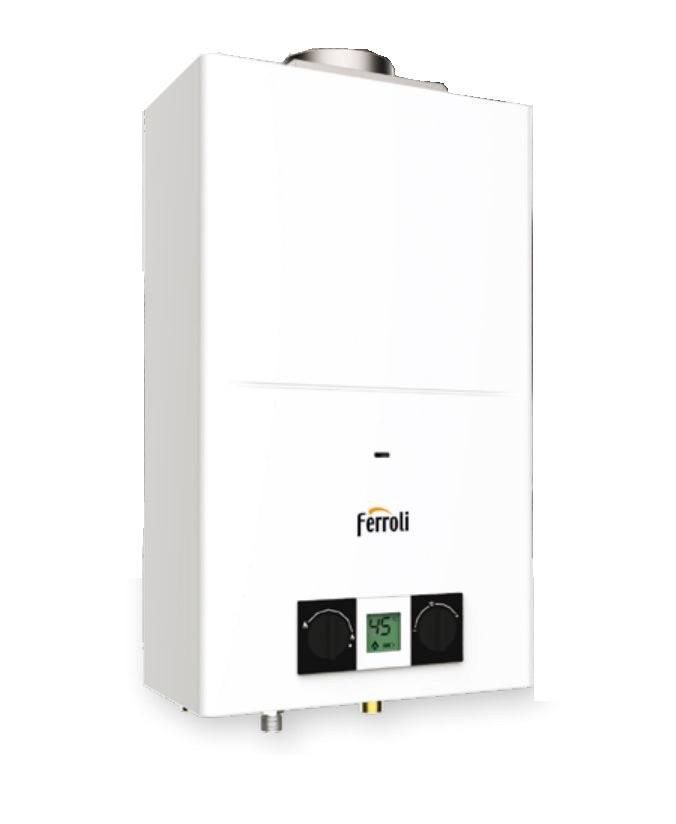

Ferroli PEGASO ECO 14 open chamber gas water heater low NOx methane

Ferroli PEGASO ECO 14 open chamber gas water heater low NOx methane

• PEGASO ECO 14
• ERP Class A
• Load profile M
• Nominal heat input Max kW 26.8
• Max / Min thermal power kW23.8/9.3
• NOx class (according to EN 15502) 6
• Maximum operating pressure bar 10
• Maximum sanitary production Δt 25°C Δt 13.6
• Domestic hot water temperature adjustment Min / Max °C 40 / 65
• Empty weight 9.5 kg
• Electrical supply Battery
• Dimensions HxWxD mm 550x330x180

Ferroli gas water heaters

EFFECTIVE The ECO range was designed according to the strict efficiency parameters of the European ErP Directive. In practice, they are able to produce a lot of hot water at a low cost, respecting the environment and with minimal polluting emissions. They can also be integrated into a solar thermal system with extreme simplicity for maximum efficiency and comfort.

EASY ECO water heaters are extremely simple to install and are interchangeable with the previous series. Although very compact in size, they have been designed and built so that the internal components can be easily accessed for easy maintenance.

BEAUTIFUL AND SMART The designers of the ECO project have created a "friendly" aesthetic that can be easily integrated with the most diverse furnishing styles. The knob or button controls have been designed to be easy to use and immediately understandable. All Ferroli gas water heaters are equipped with a user interface display.

SUN EASY Easy... Economical... Ingenious Pegaso Eco and Kona have been designed to be easily integrated with solar thermal systems, with natural or forced circulation. The temperature of the water coming from the solar circuit is constantly monitored and the water heater burner is turned on only if it is not hot enough

ECO The ECO function of water heaters allows you to set the hot water temperature (42°C) at an ideal level for maximum comfort and at the same time reduce the maximum power of the appliance (80% Pmax). Both parameters of the ECO function can be modified according to the user's needs and habits

PEGASO ECO

Wall-mounted gas water heater , with natural draft and sealed chamber, Low NOx type

• Copper exchanger
• For internal installations
• Display interface
• Power modulation
• Operation with methane, LPG and propane air
• Low NOx burner - Class 6
• Compatible with solar systems

• peso: 15.0 kg
• costospedizionecad: IT15;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• litri: 14
• marca: Ferroli
• modello: PEGASO_14_MTN
