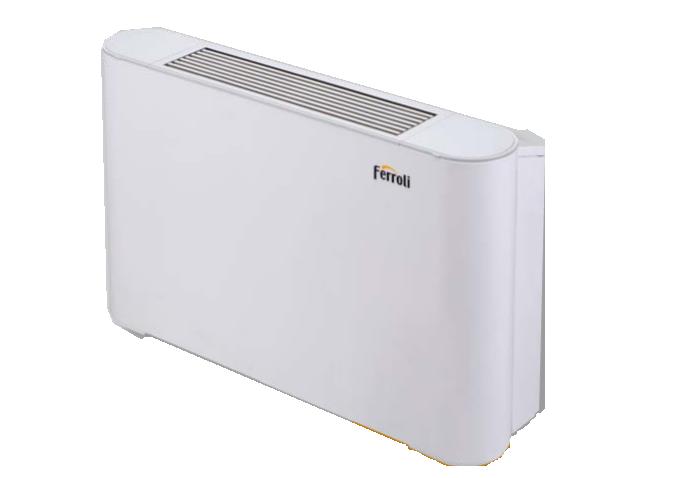

Fan Coil Fan Coil Ferroli Jolly Top 3V 250 vm250K - NEW

OPTIONAL SWITCH

Fan Coil Fan Coil Ferroli Jolly Top 3V 250 vm250K - NEW

• Power supply V-ph-Hz 230-1-50
• Total cooling capacity max/med/min kW 2.65/2.02/1.4
• Max/med/min heat output kW 3.05/2.24/1.52

JOLLY 3V

New series of fan coil units with centrifugal type fan with 3-speed AC motor. Characterized by a maximum depth of 200 mm and in the version with casing with a particularly attractive aesthetic line, they are suitable for residential heating and air conditioning applications. Available in 5 sizes with cooling capacities from 1.65 to 6.00 kW and air flow rates from 255 to 1300 m3 /h. In the standard version they are offered with a single 3-row coil which can be combined as an accessory, in the case of 4-pipe systems, with an additional 1-row coil. Available in two versions, VM with casing and VN without casing for built-in applications. The units can be installed in both vertical and horizontal positions.

VM version

Fan coil with bottom suction casing Consisting of a sheet metal covering casing, a delivery grill with doors to access any control, in thermoplastic material and a regenerable air filter, placed on a metal frame housed on guides obtained in the lower part of the frame.

Construction features

• LOAD-BEARING STRUCTURE It is made of galvanized sheet metal of adequate thickness. In the rear part there are slots for fixing the device. For models without a covering casing, a closing panel for the fan unit is mounted on the front

• HEAT EXCHANGE COIL 3-row coil in copper tube and aluminum fins blocked by mechanical expansion of the tubes. The manifolds in the upper part of the battery are equipped with air vents, while in the lower part they have a water drain tap*. * The default plumbing connection for the battery is LEFT. However, it is possible to turn the battery and change it to the RIGHT (see Installation Manual).

• CONDENSATE COLLECTION TRAY optional Made of thermoplastic material to avoid corrosion, it allows the machine to be installed either vertically or horizontally. In particular, in horizontal installation its shape allows it to collect the drops of condensation that form on the collectors during cold operation. The drain hole is obtained directly from the condensate collection tray and allows its elimination during cold operation. It is present on both sides of the machine to facilitate the rotation of the battery

• FAN MOTOR (for version I) The electric motor is of the brushless DC type with continuous speed regulation at high efficiency and is directly coupled to the fans and cushioned by elastic supports.

• FAN MOTOR (for 3V version) The electric motor, protected from possible overloads, has three speeds with a running capacitor always inserted, directly coupled to the fans and cushioned by elastic supports. CENTRIFUGAL FAN The fan unit is made up of double inlet centrifugal fans with long blades to obtain a high flow rate with a low number of revolutions.

• AIR FILTER Easily removable and regenerable by simply washing with water.

• COVERING SHELL (VM only) Made partly in sheet steel painted with epoxy powders to guarantee high resistance to corrosion and partly in anti-UV thermoplastic material to guarantee resistance to ultraviolet rays. In the upper part there are grills for air diffusion and the door to access the control panel, both in anti-UV thermoplastic material.

• HYDRAULIC CONNECTIONS The connections, positioned on the left side, are of the ¾” gas female type. There is the possibility of rotating the battery which is supplied standard with left side connections, moving the hydraulic connections to the right side.

Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 50.0 kg
• costospedizionecad: IT35;AD165;AT106;BE111;BG136;HR123;DK175;EE170;FR144;DE102;LV131;LT123;LU80;NL119;PT114;CZ90;SK101;SI101;ES104;SE212;HU85;CH168;
• marca: Ferroli
• modello: vm250k
• potenza in kw: 2
