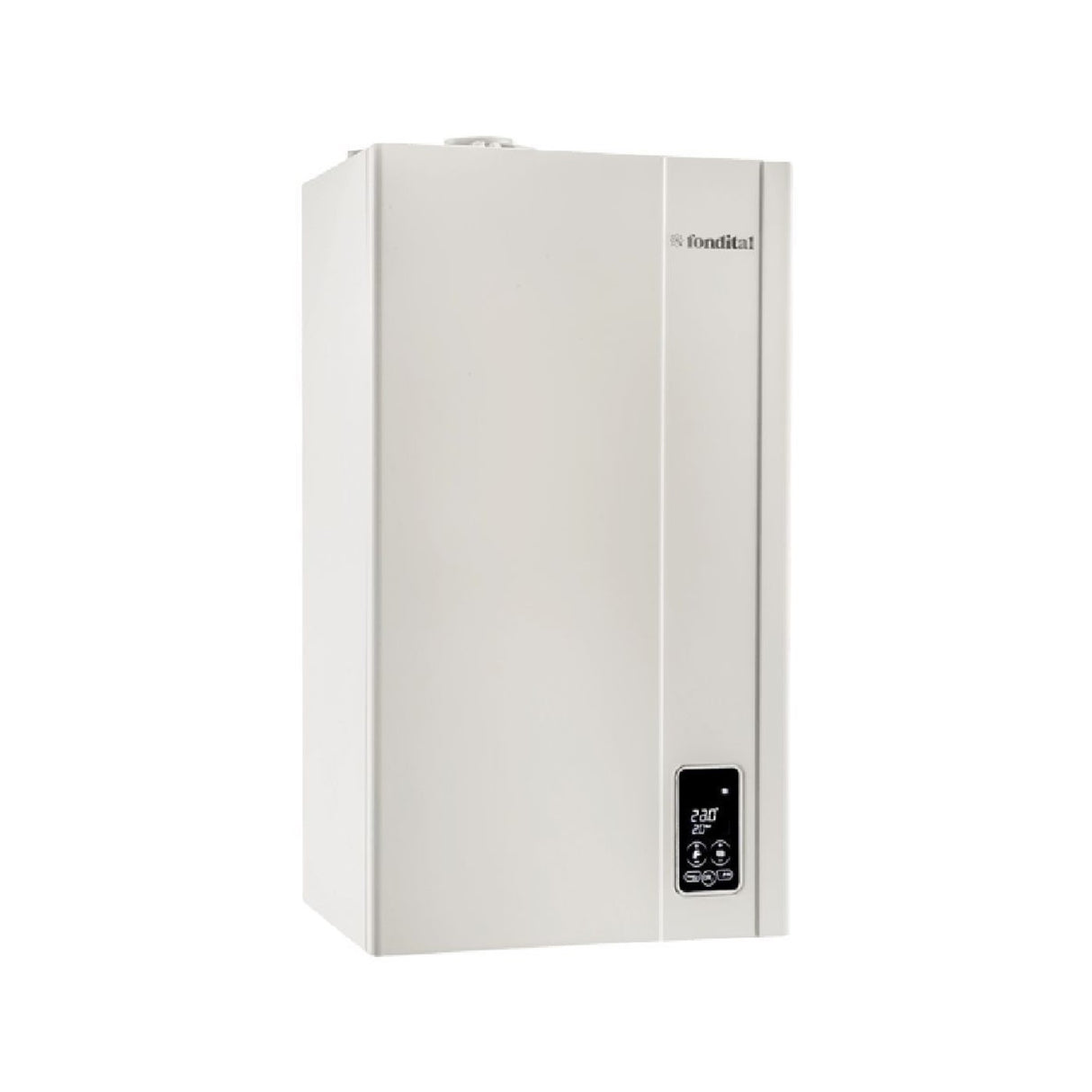

Fondital Formentera KC 28 condensing boiler complete with METHANE Low NOx fume exhaust kit
Energy label specifications according to the European ErP directive
- Class A heating energy efficiency
- DHW energy efficiency profile XL Class A
Heating/DHW operation characteristics:
- Forced draft sealed chamber
- Nominal heat input: 26.4 kW
- Nominal heat output: 27.9 kW
- Efficiency at maximum power: 96.4%
- Efficiency at 30% load: 105.5%
- Classification according to 92/42/EEC: ****
- NOx class (EN 297/EN 483); 5
- DHW production ∆t 30°C: 15.5 l/min
- Min-max sanitary pressure: 0.5 - 6 bar
- Maximum domestic hot water/heating temperature: 62/83°C
- Expansion vessel capacity: 10 litres
- Domestic hot water consumption at nominal power Methane m3 /h 2.79
- Total electrical power absorbed: 91 W
- Degree of protection of the electrical panel: IPX5D
- Dimensions (hxwxd) 750x420x315 mm; 39kg
- METHANE fueled
- Warranty: 2 years
FORMENTERA
Formentera KC is a wall-mounted premix condensing boiler with instantaneous production of domestic hot water in a sealed chamber. The boiler, unlike storage ones, allows instant production of domestic hot water and uses condensation technology which allows for a reduction in consumption, high efficiency and low emissions of pollutants.
PLUS
- Modulation ratio 1:9
- Touch screen user interface
- Standard management of 2 types of solar thermal system
- Regulation of room temperature from boiler with external probe
- 26 plate sanitary exchanger
TECHNICAL FEATURES
- Exchanger in thermopolymers and stainless steel
- Total premix burner
- Modulating gas valve with constant air/gas ratio
- Variable speed combustion fan
- 3-speed circulator with built-in deaerator
- 10 liter heating expansion tank
- Motorized diverter valve
- Installation flexibility thanks to the IPX5D electrical protection rating
- Multifunction relay for connection to systems with zone valves or solar system or remote alarm signalling
- Availability of the boiler change kit as an accessory
- Performance classification according to 92/42/EEC: ★★★★
- NOx emission class (EN 297): 5
Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
