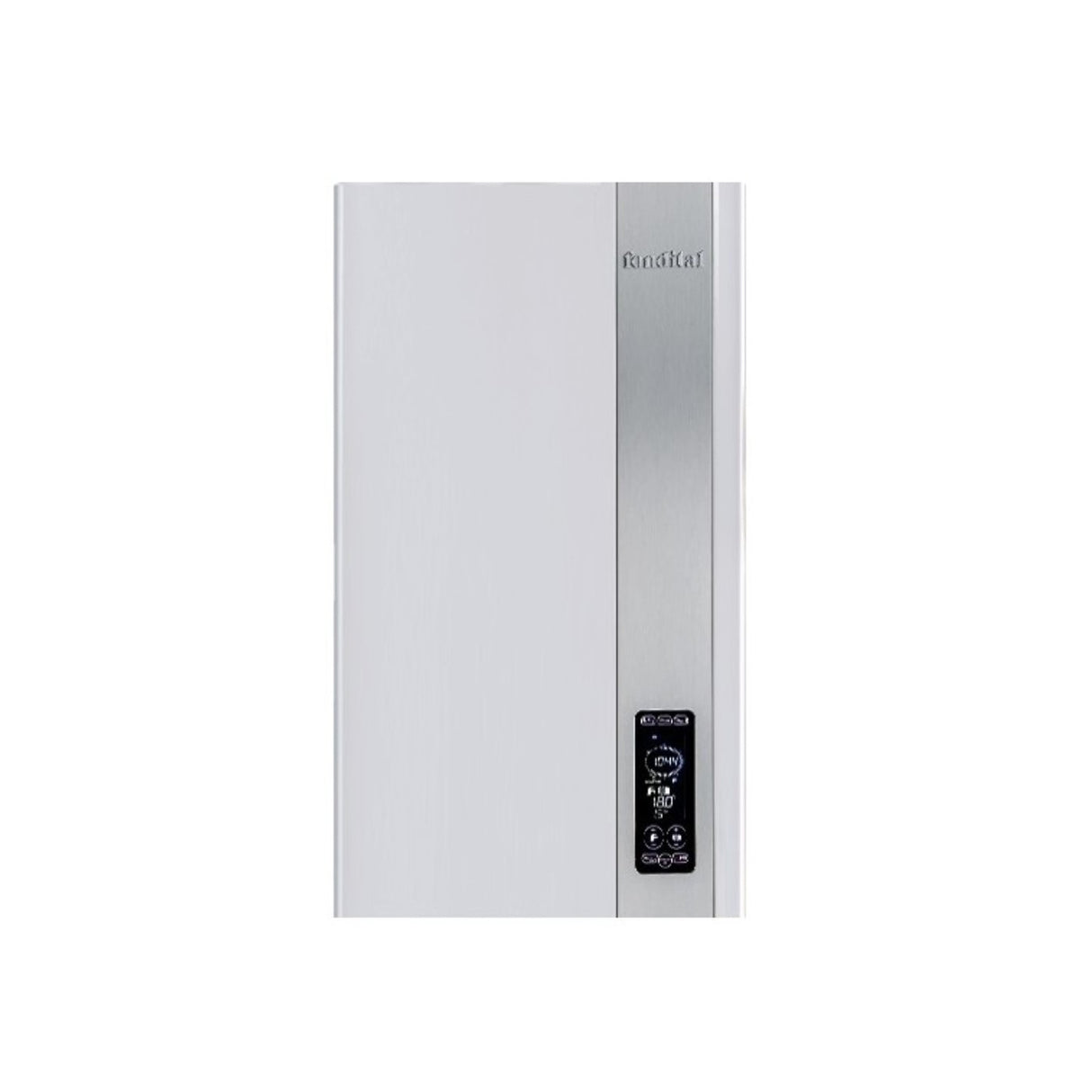

Fondital ITACA KC 32 condensing boiler complete with fume exhaust kit, dirt separator and standard probe - methane
Energy label specifications according to the European ErP directive
- Class A heating energy efficiency
- DHW energy efficiency profile XXL Class A
Heating/DHW operation characteristics:
- Forced draft sealed chamber
- Nominal heat input: 30.4 kW
- Nominal heat output: 32.3 kW
- Efficiency at maximum power: 96.8%
- Efficiency at 30% load: 108.3%
- Classification according to 92/42/EEC: ****
- NOx class (EN 297/EN 483); 5
- DHW production ∆t 30°C: 16.2 l/min
- Min-max sanitary pressure: 0.5 - 6 bar
- Maximum domestic hot water/heating temperature: 62/83°C
- Expansion vessel capacity: 10 litres
- Heating consumption at nominal power Methane m3 /h 3.22
- Domestic hot water consumption at nominal power Methane m3 /h 3.65
- Total electrical power absorbed: 99 W
- Degree of protection of the electrical panel: IPX5D
- Dimensions L x H x D mm 420x750x315; 40kg
- METHANE fueled
- Warranty: 2 years
ITACA
taca KC is a wall-mounted premix condensing boiler with instantaneous production of domestic hot water in a sealed chamber. The boiler is equipped with the "domestic hot water comfort" function which keeps the plate exchanger warm for a quicker response in the event of a request for domestic hot water.
- Magnetic dirt separator filter as standard.
- Manageable with the Spot chronothermostat.
PLUS
- Room temperature probe as standard
- Modulation ratio 1:9
- Class 6 of NOx emissions
- Condensation also in DHW operation thanks to the thermally insulated 26-plate DHW exchanger
- Management of one heating zone with room temperature probe, extendable to two with zone kit
- Standard management of 2 types of solar thermal system
- Multifunction relay for connection to systems with zone valves or solar system or remote alarm signalling
TECHNICAL FEATURES
- Heating water electronic flow control
- Exchanger in thermopolymers and stainless steel
- Total premix burner
- 10 liter heating expansion vessel
- Thermoregulation with external probe (optional)
- Modulating circulator with built-in deaerator
- Sanitary comfort function: ★★★
- Automatic by-pass
- Double loading system: automatic and manual
