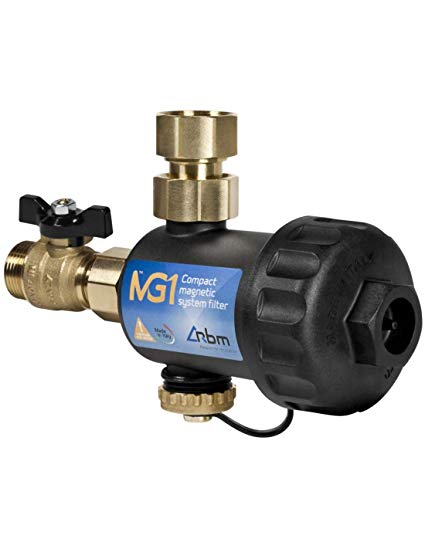

Magnetic Dirt Separator Under Boiler RBM mod. MG1 3/4
Characteristics
- Code: 3070.05.00
- Size: G 3/4”
- System side connection: M UNI-EN-ISO 228 (ball valve)
- Boiler side connection: F UNI-EN-ISO 228 (swivel fitting)
- Cartridge holder body in plastic polymer.
- AISI 304 stainless steel filter cartridge.
- EPDM PEROX hydraulic seals.
- MF UNI-EN-ISO 228 threaded connections.
- Max operating pressure 3 Bar
- Working temperature 0 ÷ +90 °C
- Neodymium magnet B = 11000 gauss
- B(T max) / B(T amb)* < 1%
- * T max = 130 °C - T amb = 21 °C
RBM
MG1 by RBM is the optimal solution for solving plant problems due to particle pollution, especially rust and sand, which form as a result of corrosion and encrustations during the normal operation of a plant. Thanks to its compact dimensions, it is ideal when the boiler to be protected is installed in a kitchen cabinet or where installation spaces are very limited and other dirt separators cannot be mounted. With its effective and constant action, the magnetic filter collects all the impurities present in the circuit, preventing their circulation within it, thus avoiding wear and damage to the circulator and heat exchanger.
Through a forced path, the fluid is forced to cross multiple zones which alter its motion and filter its contents: THE ONLY TRULY COMPACT, CAN BE INSTALLED EVEN IN SMALL SPACES UNDER-BOILER MAGNETIC SLIDER SEPARATOR FILTER ™ The non-magnetic particles are retained by the meshes of the filter cartridge
1. The sudden change in section slows down the fluid 1 and the particles suspended in it
2. The magnet inside the cylinder attracts all ferrous impurities
3. Non-magnetic particles are retained by the meshes of the filter cartridge
Maximum installation versatility: It is recommended to install MG1 on the return circuit, at the boiler inlet, to protect it from impurities present in the system, especially in the start-up phase. Thanks to its extreme installation versatility, MG1 can be mounted without distinction with the cartridge/magnet holder body facing frontally or downwards.
