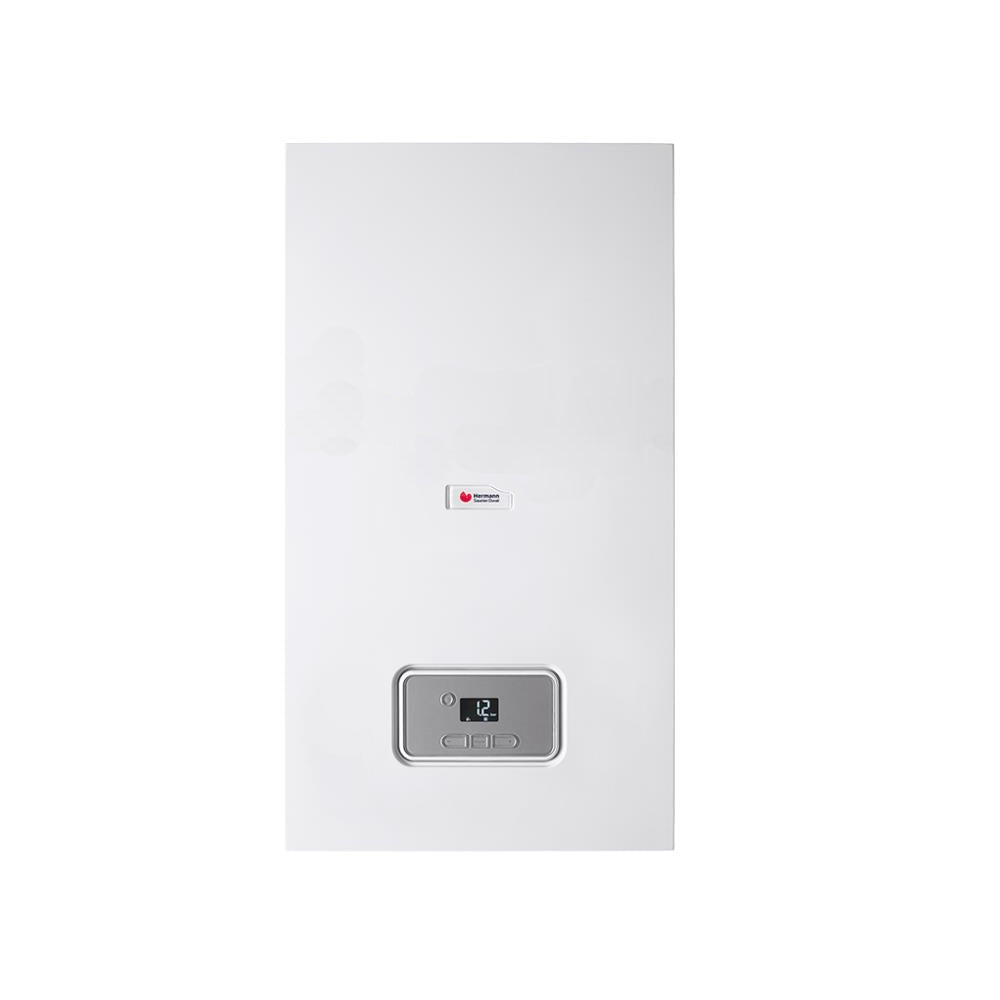

Open Chamber Boiler Hermann Saunier Duval MICRA 5 18/24 ET Methane/LPG Low NOx
Open Chamber Boiler Hermann Saunier Duval MICRA 5 18/24 ET Methane/LPG Low NOx is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
Technical features
- Product code 0010023634
- Heating efficiency class C
- Sanitary efficiency class B
- XL sanitary load profile
Type Heating and domestic hot water
- Open Combustion Chamber
- Heating
- Flow rate to the hearth Qmin/max - 80/60°C (kW) 10.7 / 20.0
- Rated power Pmin/max - 80/60°C (kW) 9.5 / 18.0
- Min/max delivery temp. (°C) 35 / 83
Healthcare
- Type of domestic hot water production Preheating
- Rated Power Min/Max (60°C) (kW) 9.5 / 24.0
- Continuous flow - Delta-T = 25K (l/min) 13.6
- Specific Flow Rate - Delta-T = 30K (EN13203) (l/min) 11.7
- Peak flow rate in 10 minutes (DT = 30K) 119
- Min/Max domestic hot water temperature (°C) 35 / 60
Electrical characteristics
- Max electrical power absorbed (W) 88
- Dimensions
- Dimensions H / W / D (mm) 740 / 410 / 313
MICRA 5E Low NOx
Micra 5 E Low NOx was designed with the aim of offering Hermann Saunier Duval installers the ideal solution for replacing traditional boilers with high NOx emissions installed in branched collective flues (CCr): in fact it features a new low NOx burner NOx emissions designed to reduce polluted emissions of nitrogen oxide (NOx) into the atmosphere and fully comply with the strict limits imposed by the ERP Regulation, in force since September 2018. Traditional wall-mounted boiler with low NOx emissions, combined for heating and water domestic hot water, ErP efficiency class C in heating, B in domestic hot water with XL profile.
Micra 5 E Low NOx , a boiler at the top of its category in terms of consumption and polluting emissions, can present the exclusive Aquaspeed system for the production of domestic hot water. The exclusive Aquaspeed system guarantees the immediate supply of domestic hot water at the desired temperature: the pre-heating of the primary circuit and therefore also of the secondary stainless steel plate exchanger, allows the boiler to respond immediately to any sudden user request.
- Hermann Saunier Duval standard reliability and quality
- Specification for branched collective reeds (CCr)
- Low NOx emissions
- Aquaspeed system for high sanitary comfort
Hot water immediately available with pre-heating
The exclusive Aquaspeed® system guarantees the immediate supply of domestic hot water at the desired temperature. The operation of the Aquaspeed® system is brilliant in its simplicity: the DHW exchanger is constantly kept at the set temperature; the hot water, passing through the preheated plates of the exchanger, reaches the taps already at temperature. The pre-heating, combined with the special oversized and externally insulated plate exchanger, allows for an abundant quantity of domestic hot water even with low boiler temperatures.
Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase
Specifications
Specifications
- peso: 35.0 kg
- classe energetica produzione acs: B
- classe energetica riscaldamento: C
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: Methane/LPG
- marca: Hermann Saunier Duval
- metri quadri : 120
- modello: MICRA5_24
- potenza in kw: 24
- potenza nominale: 24
- superficie riscaldabile mq: 120
