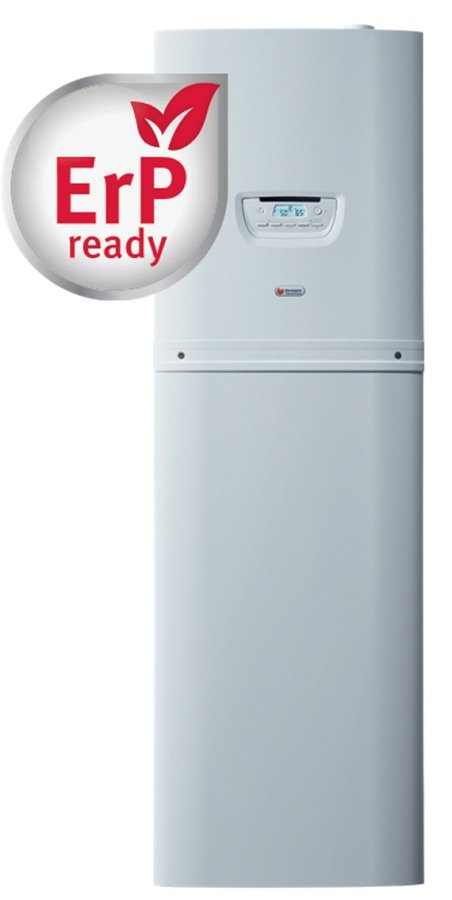

SAUNIER DUVAL HELIOTWIN CONDENSING 25-200 GAS BOILER WITH 200 lt STORAGE COMPLETE WITH FLUE KIT - NEW ERP Split flue kit, methane

SAUNIER DUVAL HELIOTWIN CONDENSING 25-200 WITH 200 lt ACCUMULATION COMPLETE WITH SMOKE KIT - NEW ERP

---

Model:

• ErP efficiency class in heating/DHW: A

• Sanitary load profile: XL
• Type: Heating and domestic hot water
• Combustion chamber: sealed
• Domestic hot water production technology: Shift-Load
• Heating
• Nominal power P min/max heating. 80/60 °C: kW 3.4/27
• Partial load efficiency 30% 40/30 °C %: 108
• Healthcare
• Rated power min/max (60 °C): kW 3/25
• Specific flow rate (∆T=25 K): l/min 14.4
• Continuous flow rate (∆T=30 K): l/min 22.9
• DHW temperature min/max: °C 35/65
• Electrical characteristics
• Total electrical power absorbed: W 105
• Supply voltage/frequency: V/Hz 230/50
• Dimensions:
• Dimensions (hxwxd): 1880 x 600 x 698 mm
• Methane Code (G20) - 10014620
• METHANE version

---

HELIOTWIN CONDENSING

HelioTwin Condensing is extremely efficient from every point of view and thanks to the "Shift-Load" system it guarantees a very high availability of DHW.

A 25 kW model with integrated 200 liter boiler is available.

Characteristics :

• 4 star energy classification ★★★★(92/42/EEC) with efficiency up to 108%;
• 3-star sanitary comfort ★★★ (EN 13203-1), thanks to the "Shift-Load" technology for the instant production of stratified DHW, with a high-efficiency increased sanitary exchanger with 20 stainless steel plates and a 200-litre storage tank.
• Management of 1 forced solar circuit with integrated emptying: all the electronic and mechanical components for managing the solar circuit are integrated in the boiler for easy and efficient installation.
• 360° efficiency: thanks to the wide 1:8 modulation, the burner can modulate from 25 to 3 kW, thus avoiding useless and inefficient On/Off cycles while maintaining efficiency values ​​constant at 108%. Even from an electrical point of view, stand-by consumption is minimal: 4.4 Watts. The insulation of the boiler allows for decidedly low heat losses: 1.91 kwh/24h.
• Continuous domestic hot water (DHW) production up to 14.4 l/min (DT 25 K)
• Low NOx emissions - class 5 (EN 483)
• Integrated emptying solar system: designed for integration with emptying forced circulation solar collectors
• High modulation total premix burner and primary exchanger in anti-corrosion stainless steel
• High efficiency and modulating circulators (main, sanitary and solar).
• Antifreeze function
• Prepared for internal integration of accessories for multi-zone systems

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: HERMANN SAUNIER DUVAL
• metri quadri : 150
• modello: CALD_361
• potenza in kw: 25
• potenza nominale: 25
• superficie riscaldabile mq: 150
• tipologia : Ad accumulo
