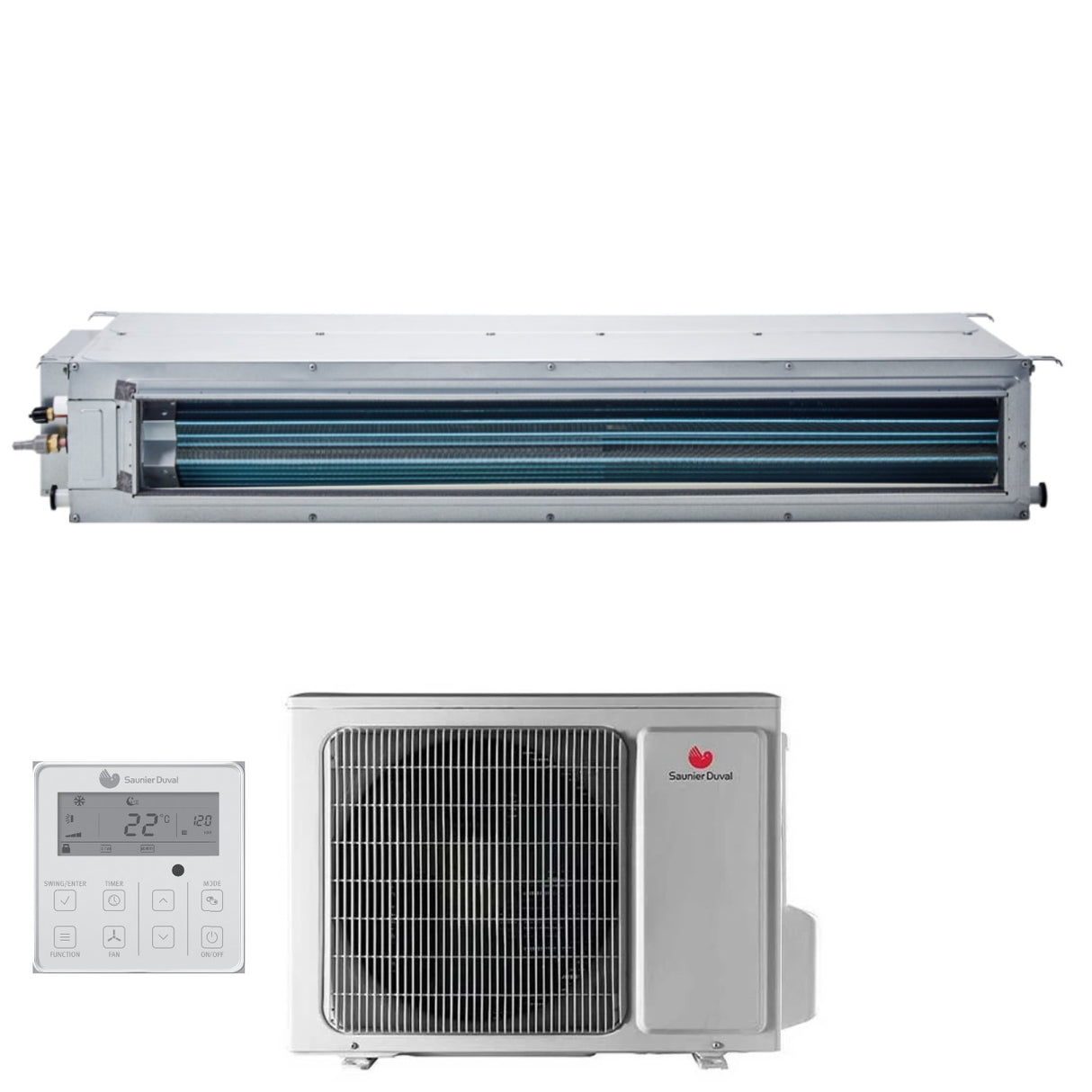

Hermann Saunier Duval Ducted Ducted Inverter Air Conditioner 34000 Btu SDH19-100 IDNI R-32 With Wire Control Included
Hermann Saunier Duval Ducted Ducted Inverter Air Conditioner 34000 Btu SDH19-100 IDNI R-32 With Wire Control Included is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of the order.
Our shipping services
Standard Shipping: estimated delivery in 2 to 5 working days
Premium Shipping: guaranteed delivery in 24 working hours
Premium Shipping + Flat Delivery: guaranteed delivery in 24 working hours
Please refer to the tables for Standard Shipping prices for Italy and for Minor Islands and Disturbed Areas.
For further details on Premium Shipping, please see the Premium Shipping page.
Customer service
Customer service
Our service department is dedicated to providing support to our customers for any problems or questions they may have before or after purchasing our products.
Use the direct communication channel to speak to one of our operators, or send us an e-mail to one of the addresses listed on the contact us page.
Our customer service team consists of highly qualified professionals who are always ready to help customers solve any problems or answer any questions quickly and efficiently. We strive to ensure maximum customer satisfaction and provide the highest quality after-sales service. So, if you need assistance, please do not hesitate to contact us; we will be happy to help you in any way we can.
Description
Description
- Indoor unit catalog code: SDH 19-100 IDNI
- Outdoor unit catalog code: SDH 19-100 IKDNO
- Power: 34000 Btu
- Wire Control Included
Energy efficiency
- SEER : 6.1
- SCOP : 4.0
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Cooling Capacity: 10.0 kW
- Heating Capacity: 12.0 kW
- Cooling absorption: 3.2 kW
- Heating absorption: 3.4 kW
- Indoor Unit Treated Air: 1270~1800 m 3 /h
- Indoor Unit Sound Pressure Level: 40~46 dB(A)
- External Unit Sound Pressure Level: 55 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -20° ~ 48°C
- - Heating: -20° ~ 24°C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 65 m
- Maximum height difference Internal Unit / External Unit: 30 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 300x1000x700 mm
- Internal Unit Weight: 41.0 Kg
- External Unit Dimensions (HxWxD): 820x940x530 mm
- External Unit Weight: 83.0 Kg
Hermann Saunier Duval VivAir SDH 19
Hermann Saunier Duval offers the new range of high-efficiency commercial air conditioners with R32 refrigerant gas
The use of the new ecological gas R32 ensures a lower environmental impact thanks to the low global warming potential (GWP=675) equal to approximately one third compared to R410A gas (GWP=2,088).
These units meet the air conditioning needs of small and medium-sized commercial environments, covering a power requirement of up to 14 kW . The efficiency of the new range allows you to reach efficiency levels up to energy class A++ , ensuring maximum comfort and savings on consumption . The outdoor unit with DC inverter compressor is equipped with an electronic expansion valve to increase the efficiency of the air conditioner and is universal for both cassette and ducted indoor units.
The new R32 commercial range
Hermann Saunier Duval presents the new range of ductable commercial monosplit air conditioners with R32 refrigerant gas designed to manage the temperature of any environment, regardless of its shape and size. Available in four single-phase sizes of 5-7-8.5 and 10 kW and in a three-phase version of 14 kW, they are particularly suitable for installations in commercial environments (hotels, restaurants, shops, gyms).
DC Inverter technology of Saunier Duval air conditioners
The Saunier Duval range of air conditioners is DC Inverter technology, which allows us greater energy savings compared to conventional inverter systems. With the new Inverter technology, consumption adapts to air conditioning needs in a modular way, guaranteeing significant energy savings. The equipment can operate in extreme temperatures. In addition to 3D DC Inverter technology, it contains an electronic expansion valve and a modulating fan.
High performance, versatile solutions
The use of latest generation compressors guarantees high performance with energy efficiency classes up to A++. The possibility of regulating the static pressure allows the product to be used even with rather long ducts, optimizing the noise level of the product. The internal units also have air vents that allow the air to be exchanged in the room ("Fresh Air" function). All ducted air conditioners are equipped with a wired control supplied as standard which allows simple and easy use of the air conditioner
Simplified installation and maintenance
The outdoor unit equipped with a DC inverter compressor is equipped with an electronic expansion valve which increases its efficiency and is universal for both indoor units, cassette or ducted. The outdoor unit is designed to allow silent operation, making it ideal even for installations in urban and residential environments. All external units are equipped with a single fan, thus allowing a reduction in the height of the product and making installation within small spaces possible. To facilitate installation operations, sufficient space has been left to facilitate pipe connections and carry out the necessary electrical wiring
Characteristics
• New R32 refrigerant gas
• Wall-mountable wired digital control supplied as standard
• “Quiet” function to reduce noise
• Possibility to regulate the static pressure up to 150 PA
• Integrated condensate drain pump
• Pipe length between indoor/outdoor unit up to 75 meters and height difference up to 30 meters
• Can be combined with an on-off control card for use with home automation (accessory)
Specifications
Specifications
- peso: 150.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- costospedizionecad: IT79;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- gas: R-32
- marca: HERMANN SAUNIER DUVAL
- metri quadri : 100 - 130 m2
- modello: SDH19-100 IDNI
- potenza btu: 34000
