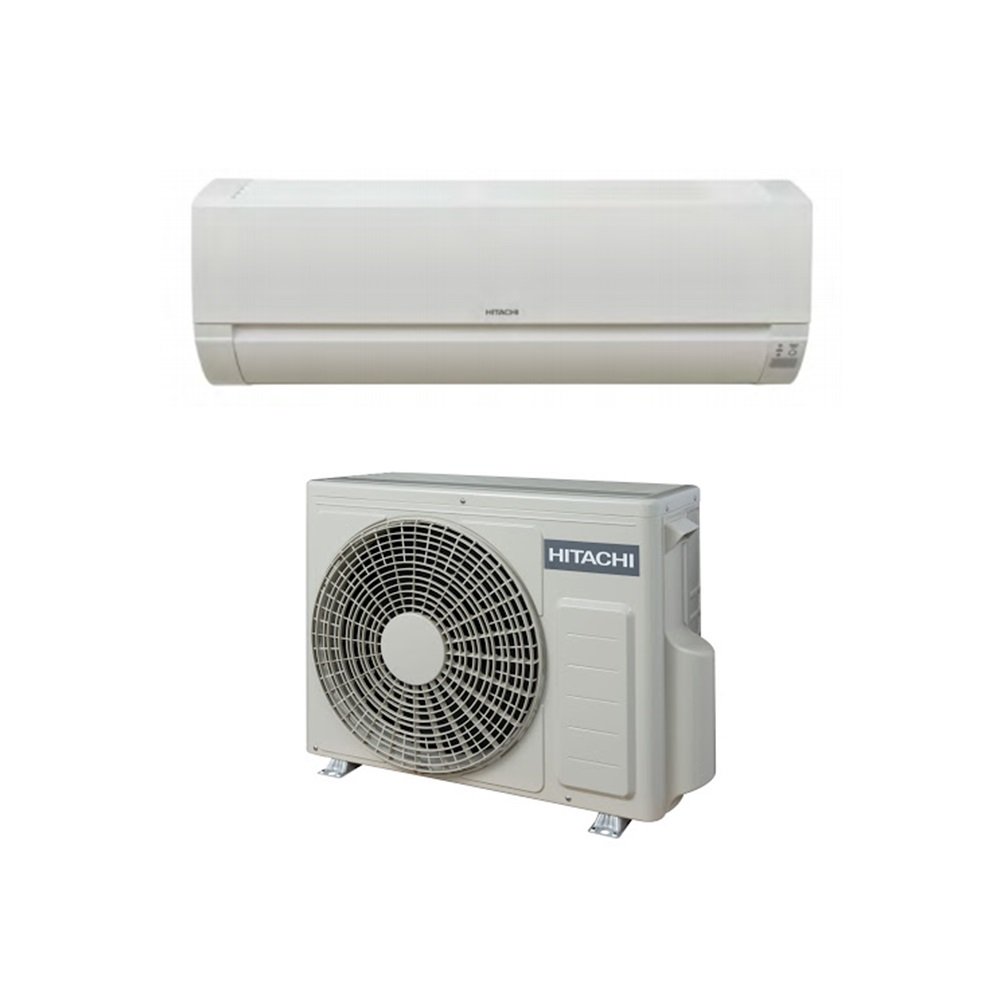

Hitachi Inverter Air Conditioning Dodai Frost Wash Series 12000 Btu RAK-35REF R-32 Wi-Fi Optional - New

Technical features

• Indoor unit catalog code: RAK-35REF
• Outdoor unit catalog code: RAC-35WE
• Power: 12000 Btu

Optional accessories

• Wi-Fi card: SPX‐WFG02
• Simplified Wall Control: SPX-RCDA
• Wall Control with Weekly Timer: SPX-WKT3

Energy efficiency

• SEER : 6.1
• SCOP: 4.2
• Cooling energy efficiency class: A++
• Heating energy efficiency class: A+

• Cooling capacity: 3.5 kW
• Heating capacity: 4.2 kW
• Cooling absorption: 1.09 kW
• Heating absorption: 1.10 kW
• Indoor unit treated air: 333 ~ 660 m ³ /h
• Indoor unit sound power level: 57 dB(A)
• External unit sound power level: 62 dB(A)
• Indoor unit sound pressure level: 25~44 dB(A)
• Outdoor unit sound pressure level: 48~49 dB(A)

Electrical Data

• Power (V,Hz, Ø): 220~240/50/1
• Refrigerant gas: R32
• Operating range
• - Cooling: -10° ~ 46° C
• - Heating: -10° ~ 24° C

Installation Data

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum pipe length: 20 m
• Maximum internal unit / external unit height difference: 10 m

Dimensions and weight

• Indoor unit dimensions (HxWxD): 280x780x215 mm
• Internal unit weight: 7.7 kg
• External unit dimensions (HxWxD): 530x660x278 mm
• External unit weight: 25.0 kg

Warranty

Hitachi Cooling & Heating extends the warranty of all its residential air conditioners. The quality of Dodai FrostWash is also guaranteed for 5 years on electronic boards and compressor, the heart of the air conditioner

---

Dodai FrostWash Cleanliness, hygiene and energy efficiency in a class A++ air conditioner

Intelligent FrostWash technology

The innovative FrostWash cleaning technology captures, freezes and eliminates 91% of bacteria and 87% of mold from your air conditioner for maximum hygiene. FrostWash is a smart feature that activates automatically. Alternatively, you can choose when to clean your air conditioner with just one click of the remote control. A clean air conditioner is synonymous with clean air but also with greater efficiency: with FrostWash by Hitachi you can live your home in total safety and tranquility

Voice control and geolocation in a single app

The airCloud Home app is available on the entire range of Hitachi residential heat pump air conditioners, including Dodai FrostWash.

With airCloud Home you connect your air conditioner to all your mobile devices and manage it with voice control from Alexa and Google Home.

Activate geolocation on your smartphone and with the Smart Geo Fence function set a radius of action around your home. In this way your Hitachi air conditioner will always know where you are, if you are at home or if you are returning from your daily workout and will welcome you with the ideal temperature

Comfort in a heat pump , all year round

The Dodai FrostWash heat pump air conditioner adapts to your lifestyle in every season of the year.

At the end of a hot summer day you can return home and enjoy immediate coolness without unnecessary waiting, thanks to Powerful Mode.

While in winter, when you return from a long absence, you don't have to wait for the heating to turn on to find comfort again. Holiday Mode allows you to set a minimum maintenance temperature, reducing electricity consumption.

The Hitachi heat pump air conditioner suitable for everyone

Japanese quality and technology are accessible to all, with the Dodai FrostWash heat pump air conditioner. Dodai is the advantageous solution for those who do not want to give up the quality of a Hitachi air conditioner. Contact our installer partners and you will discover that, with Dodai FrostWash, Japanese technology and reliability are also convenient.

Comfort and energy saving

Dodai FrostWash is a silent heat pump air conditioner that gives you maximum comfort, always working with maximum energy efficiency in every situation.

Thanks to cooling and heating operation, Dodai FrostWash responds to all your needs with simplicity and efficiency in energy class A++ and A+ and with the ECO mode it optimizes the average electricity consumption. You can also use it when other appliances are running.

Even having silence is a simple gesture with Dodai FrostaWash: by setting the Super Low function the air flow is only 20 dBA.

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: R-32
• marca: Hitachi
• metri quadri : 25-40 m2
• modello: RAK-35REF
• potenza btu: 12000
• superficie riscaldabile mq: 35
