Description
Description

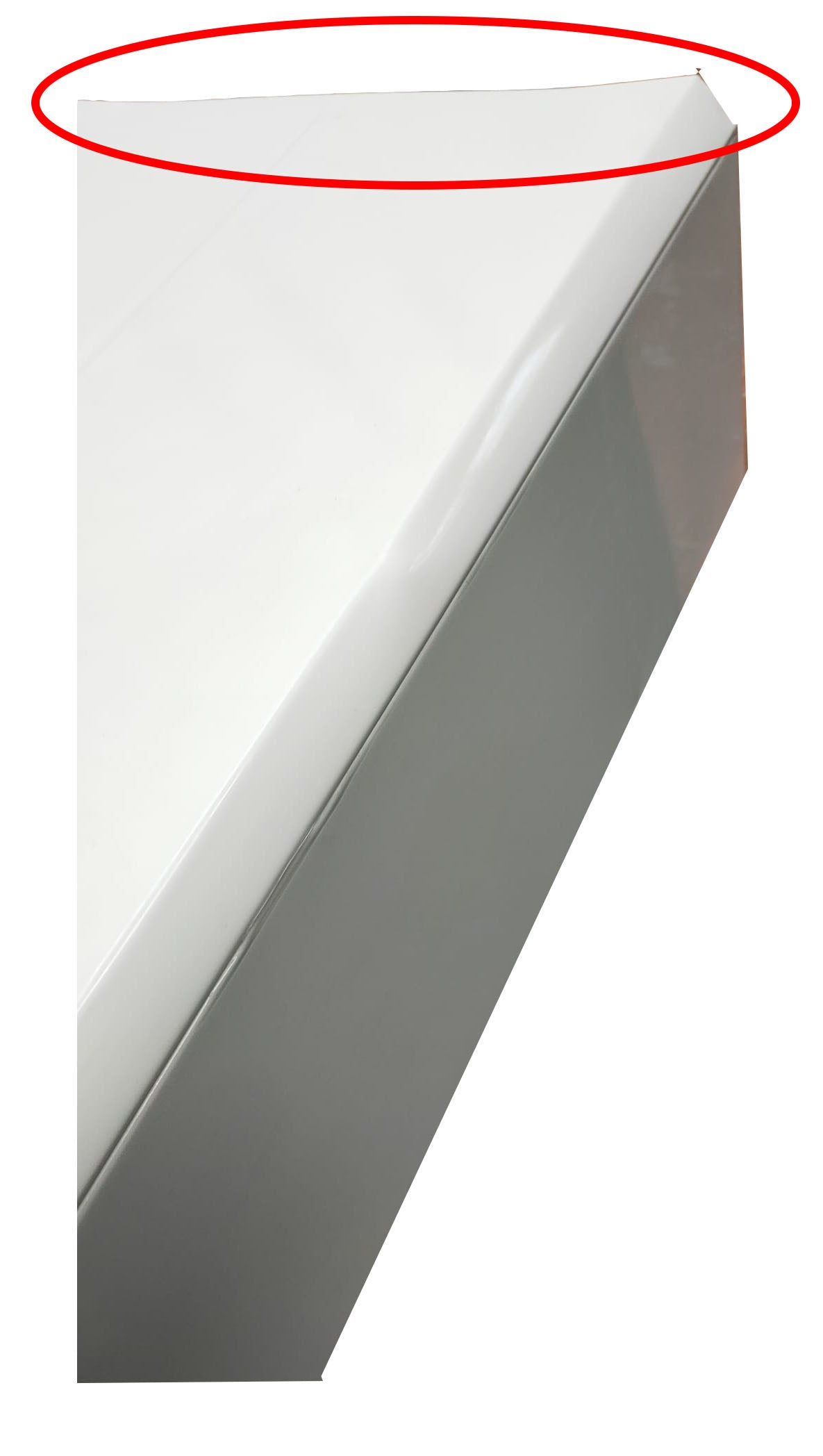

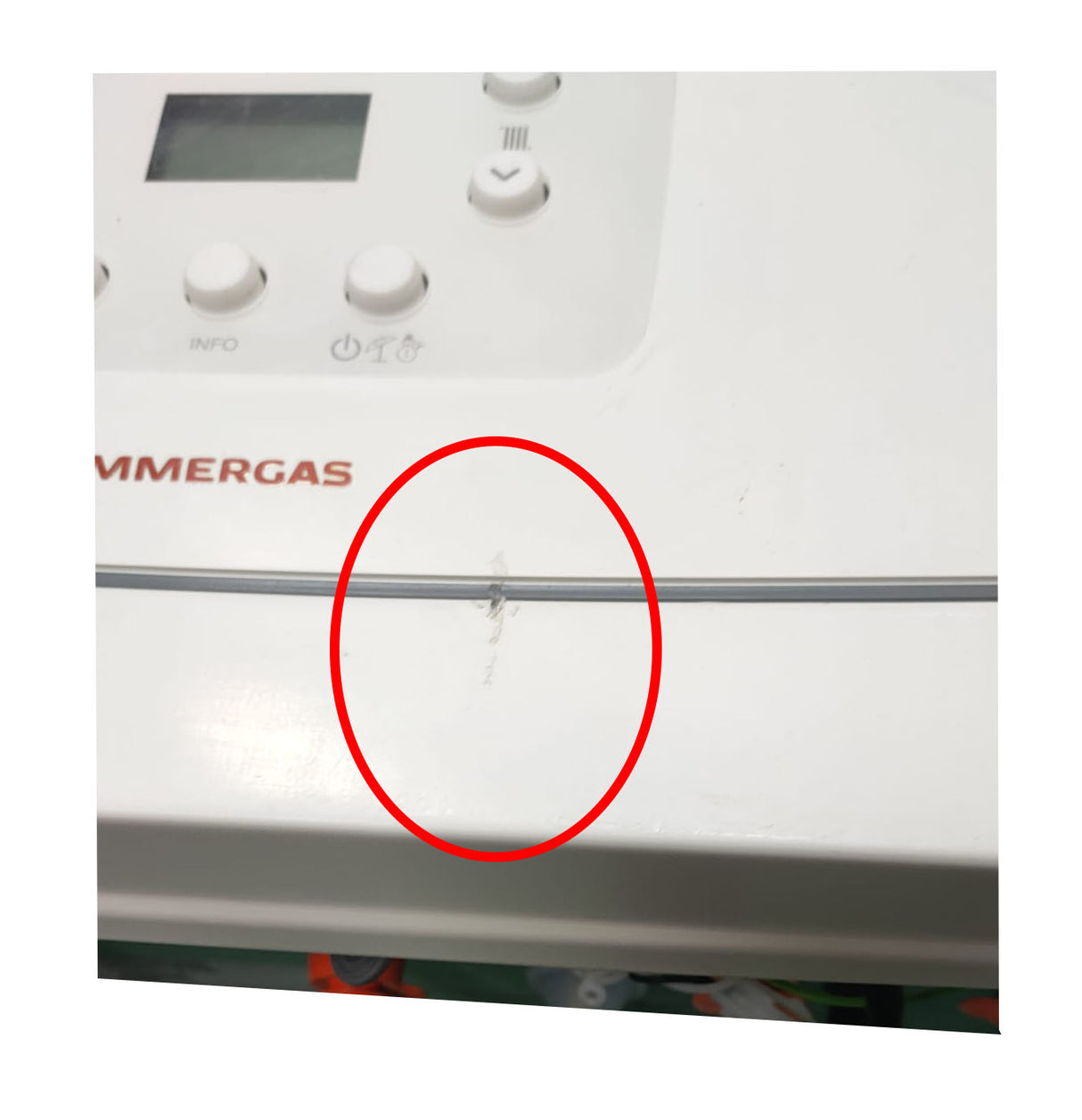

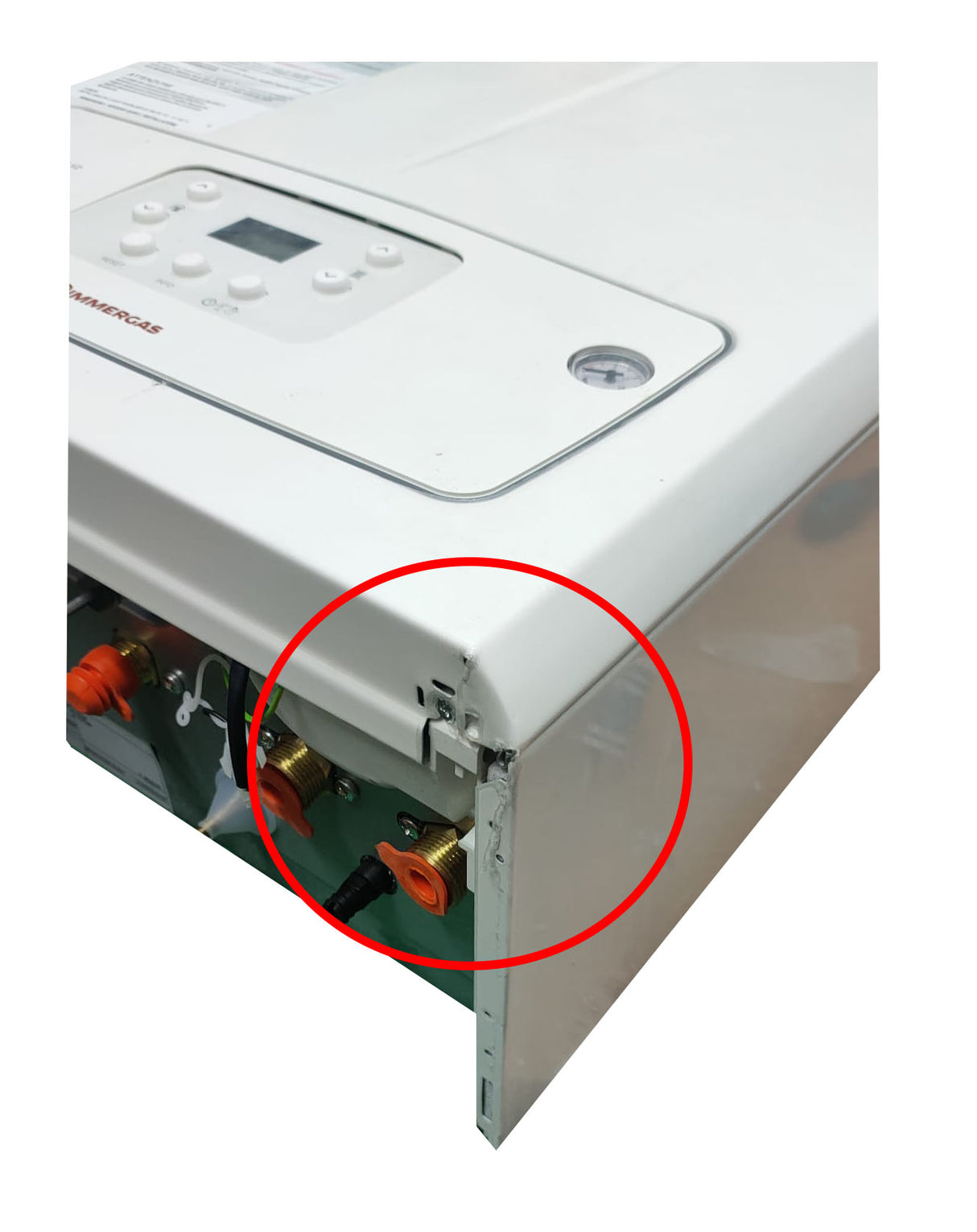

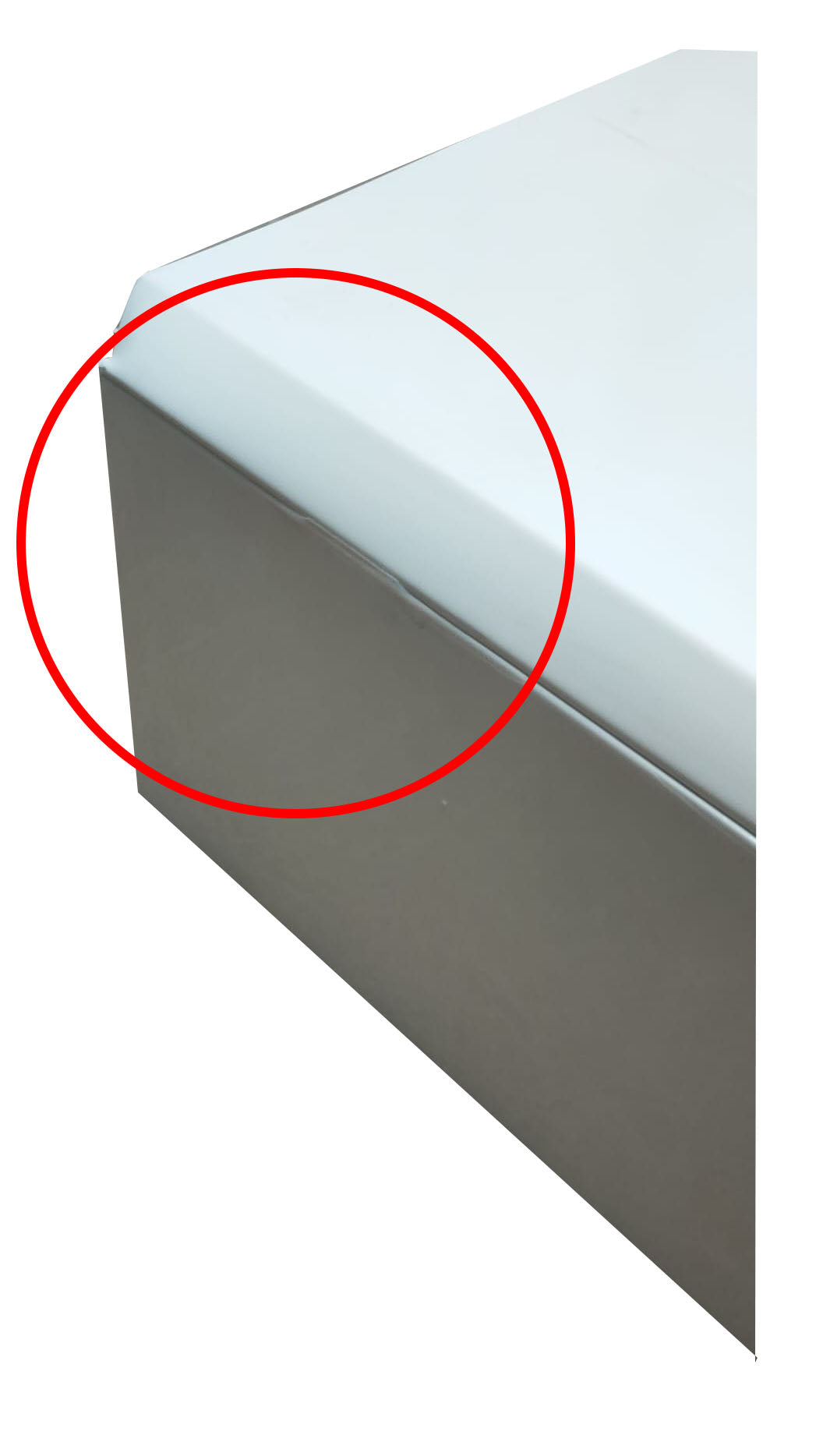

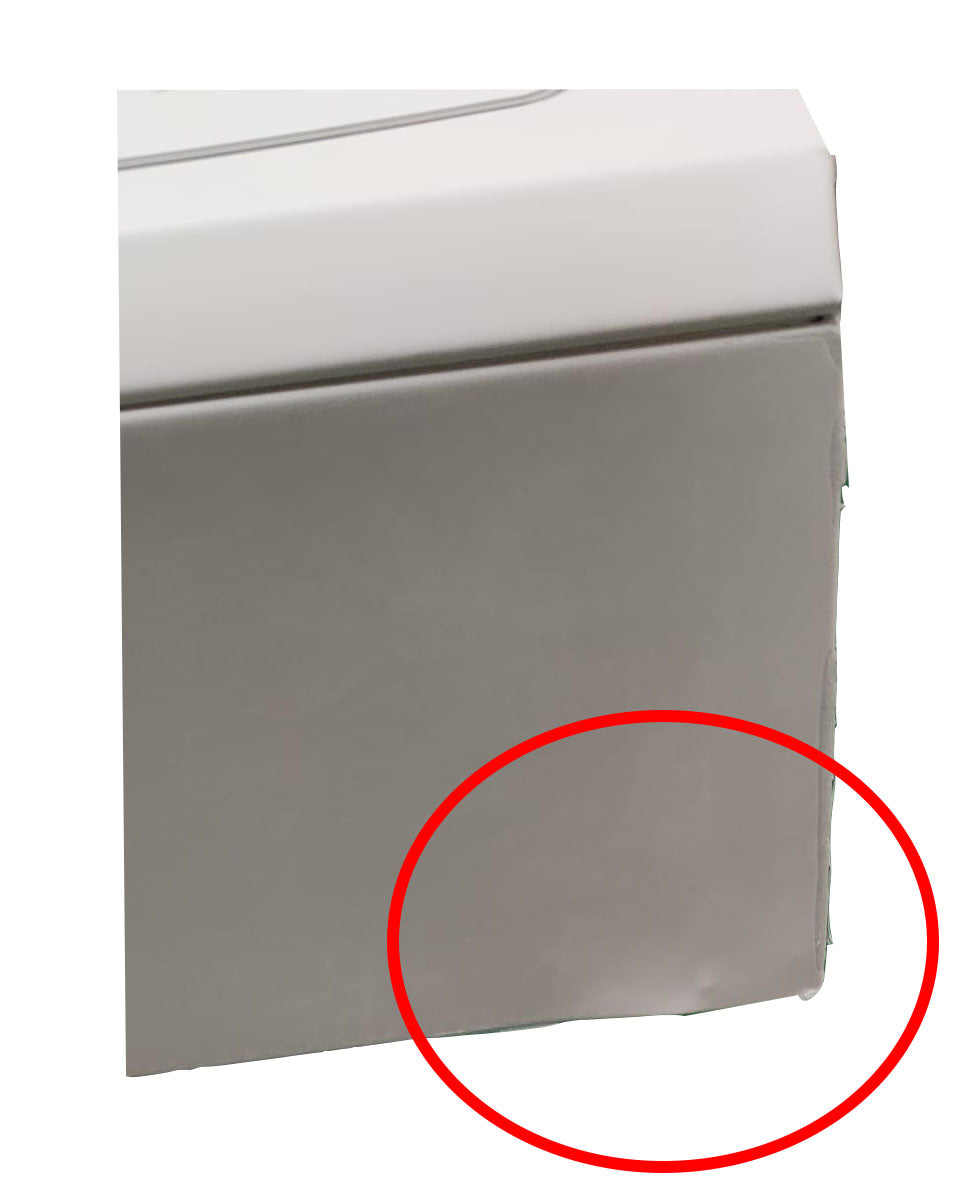

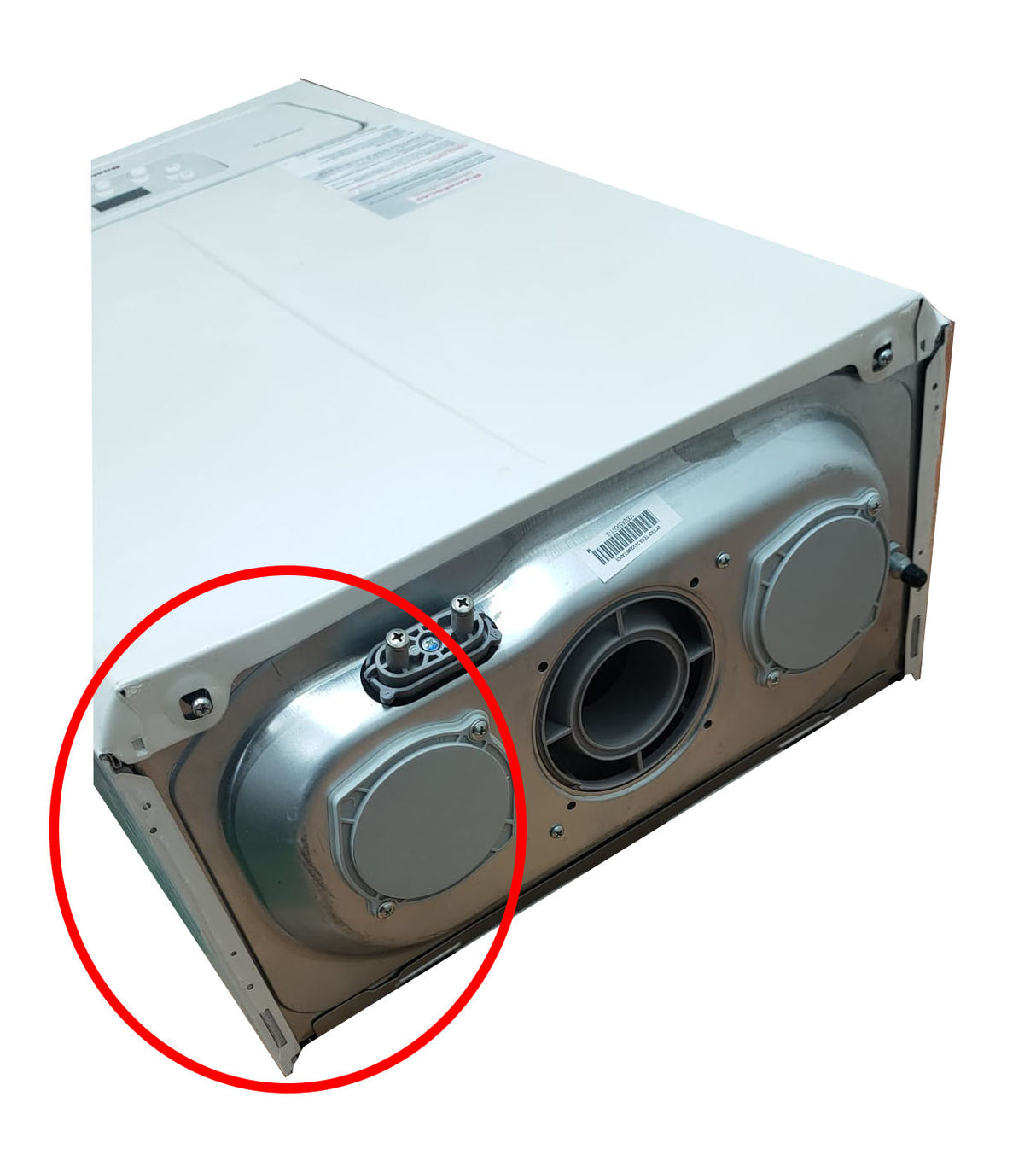

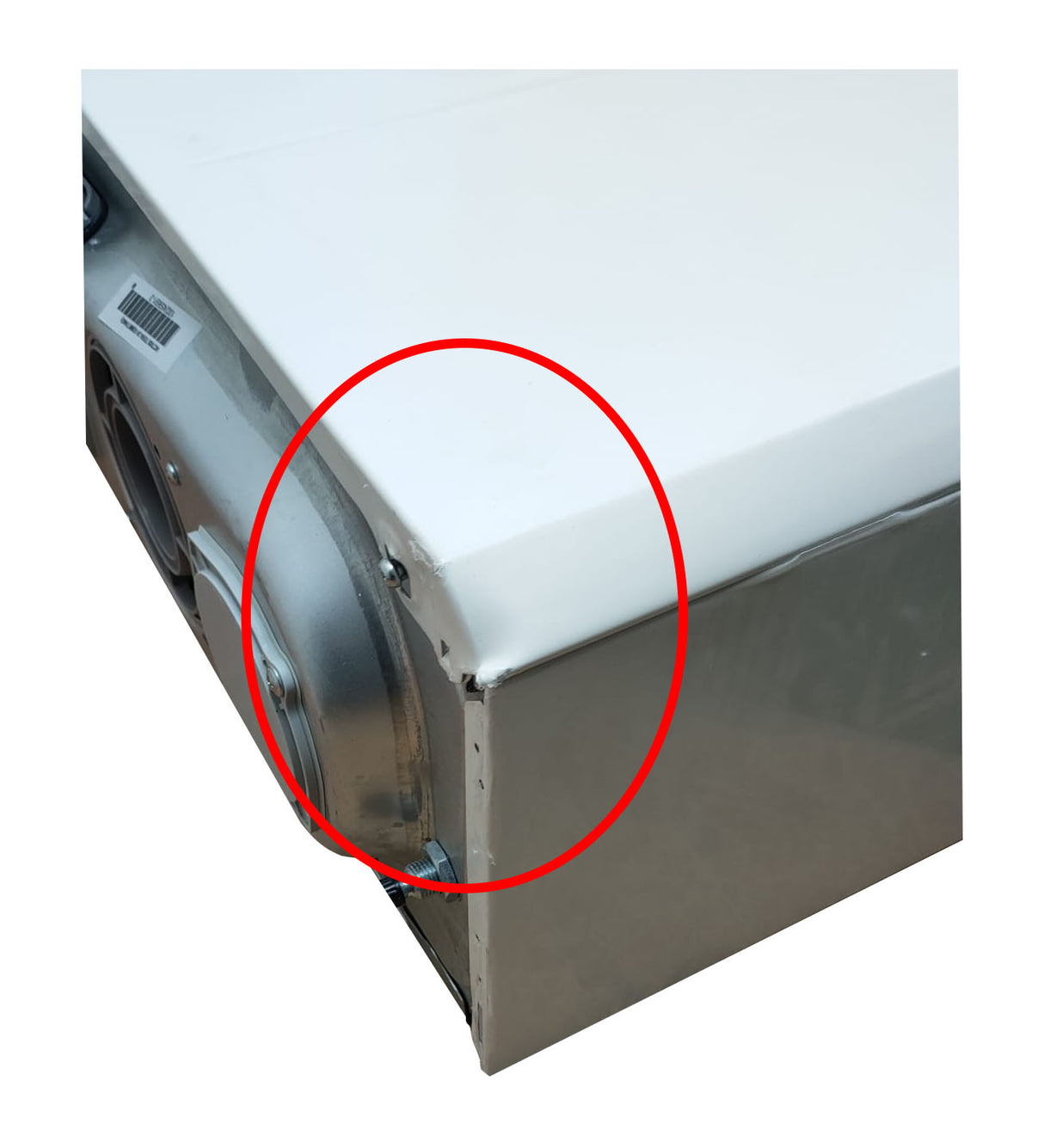

ATTENTION THE PRODUCT IS NEW AND 100% WORKING, BUT IT HAS SOME SLIGHT DENTS AND WORN PACKAGING (SEE PHOTO NEXT TO THE MAIN IMAGE)

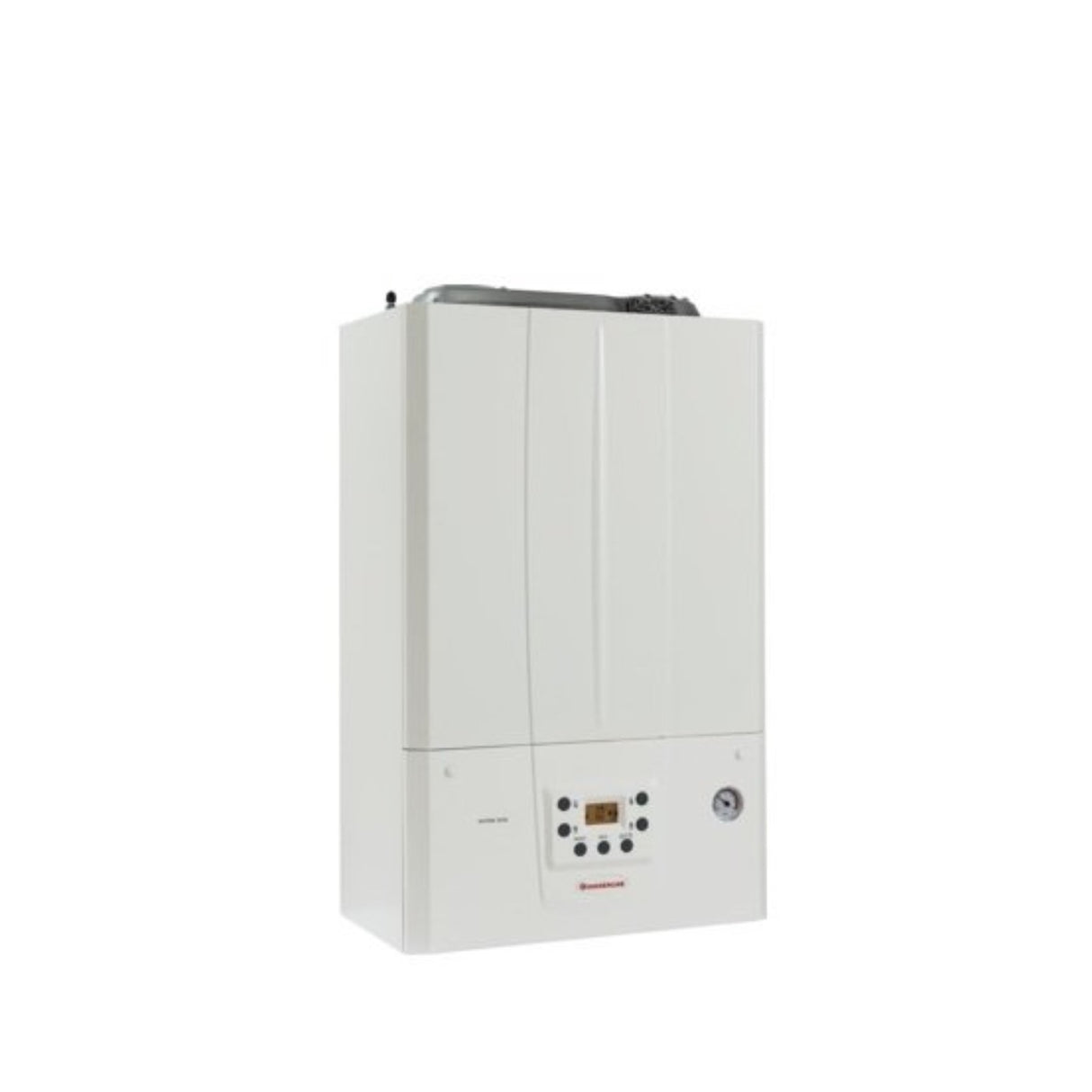

Immergas VICTRIX TERA 24 V2 low nox methane condensing boiler complete with fume exhaust kit 1 036051
General characteristics
- Model: VICTRIX TERA 24 V2
- Code: 1.036051
- EAN: 8015065134824
- Fuel: methane
- Heating Energy Efficiency Class: A
- Healthcare Energy Efficiency Class: A
- Domestic hot water nominal heat output (useful): 28.0 kW
- Nominal heating heat output (useful): 24.0 kW
Technical data sheet (Method Directive 92/42/EEC)
- Burner type: Blown air
- Power at rated load: 24.0 kW
- Power at 30% of nominal load: 7.2 kW
(at 50/30 °C)
- Efficiency at nominal load: 106.5
- Efficiency at 30% of nominal load: 107.5
(at 80/60 °C)
- Efficiency at nominal load: 97.8
- Efficiency at 30% of nominal load: 96.8
Electrical auxiliaries
- at rated load: 41 W
- at intermediate load: 60 W
- at zero load: 2 W
Operating temperatures
- Average temperature: 50°C
- Return temperature: 40°C
- DHW temperature: 55 °C
With DHW priority: yes
TEST conditions
at rated load
- Average generator temperatures: 70 °C
- Yield correction factor: 0.2
at intermediate load
- Average generator temperatures: 70 °C
- Yield correction factor: 0.2
at zero load
- Power lost: 54.4W
- Shell loss fraction: 0.36
Dimensions
Legend:
V - Electrical connection
G - Gas supply
AC - Domestic hot water outlet
ACV - Kit domestic hot water inlet
solar valve (optional)
AF - Domestic water inlet
SC - Condensate drain (internal diameter
minimum Ø 13 mm)
M - System delivery
R - System return
Product Guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 40.0 kg
- classe energetica produzione acs: A
- classe energetica riscaldamento: A
- costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
- gas: Methane
- marca: IMMERSION
- metri quadri : 120
- modello: AO832_1
- potenza in kw: 24
- potenza nominale: 24
- superficie riscaldabile mq: 120
