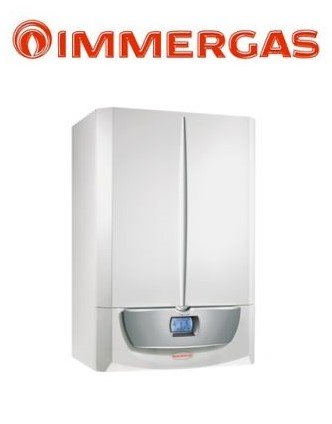

IMMERGAS VICTRIX ZEUS SUPERIOR CONDENSING BOILER 32 KW METHANE WITH BOILER COMPLETE WITH SMOKE EXHAUST KIT - NEW ERP

---

Technical features

• Model: Wall-mounted condensing boiler with 45 liter boiler;
• Heating energy class: A;
• Sanitary energy class: A;
• Sanitary load profile: XL;
• Heating power: 32.0 kW;
• DHW power: 25.8 kW;
• Hot water production (∆t 30 °C) l/min: 19.2;
• Rated absorption: 0.64 A;
• IP X5D electrical insulation rating;

---

Heating performance:

• Nominal system expansion vessel capacity (min./max.): 10.0/7.1 L;
• Head available with flow rate 1000 l/h kPa (m ca) 29.0 (2.95);

• Healthcare services:
• Useful thermal power for hot water production (kcal/h) 32.0 (27520) kW;
• DHW temperature °C 20 - 60:
• DHW pressure 2.5 bar:
• Withdrawal in continuous service (∆t 30°C) litres/min 15.8;
• Specific flow rate x 10 min. (∆t 30°C) litres/min 19.2;
• Boiler losses kW 0.168;
• Nominal expansion vessel capacity 2.5 (1.2) liters
• Power supply: LPG.

Advantages and functions:

• Display: backlit liquid crystal, provides the main operating information;
• It is possible to take advantage of the tax deductions in force;
• Low consumption, and can be combined with thermoregulators as an option, which improve comfort and increase energy savings;
• 45 liter kettle;

• Eco-compatible technology: respecting the European ErP and ELD Directives, it allows you to achieve high energy efficiency classes in heating and hot water production;
• Ecological class 5: reduced emissions of nitrogen oxides.

General characteristics

• Immergas boiler, easy to install in any environment and compatible with existing connections and hydromassage tubs, designed to respect the environment while taking advantage of maximum comfort with low energy consumption given its low consumption circulator. Equipped with a 54 liter boiler made of stainless steel to be unalterable over time with minimal heat loss so as to also resist outdoors. The wide flange optimizes cleaning and maintenance operations, which allows excellent thermoregulation, guaranteeing very high performance in terms of comfort. Inside the boiler in turn there is a stainless steel coil wrapped in a double concentric spiral which ensures rapid heat exchange. The Zeus boiler is intuitive and simple to use and program to your liking thanks also to the practical knobs and a backlit display that allow you to manage and view the boiler settings. Finally, given its great reliability not only in performance but also in resistance (IPX4D protection degree), it can be installed both indoors and partially covered outdoors.

• Dimensions
• (HxWxD): 900x600x460 cm;

Warranty

The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: IMMERSION
• metri quadri : 220
• modello: VICTRIX ZEUS SUPERIOR 32 METANO
• potenza in kw: 32
• potenza nominale: 32
• superficie riscaldabile mq: 220
