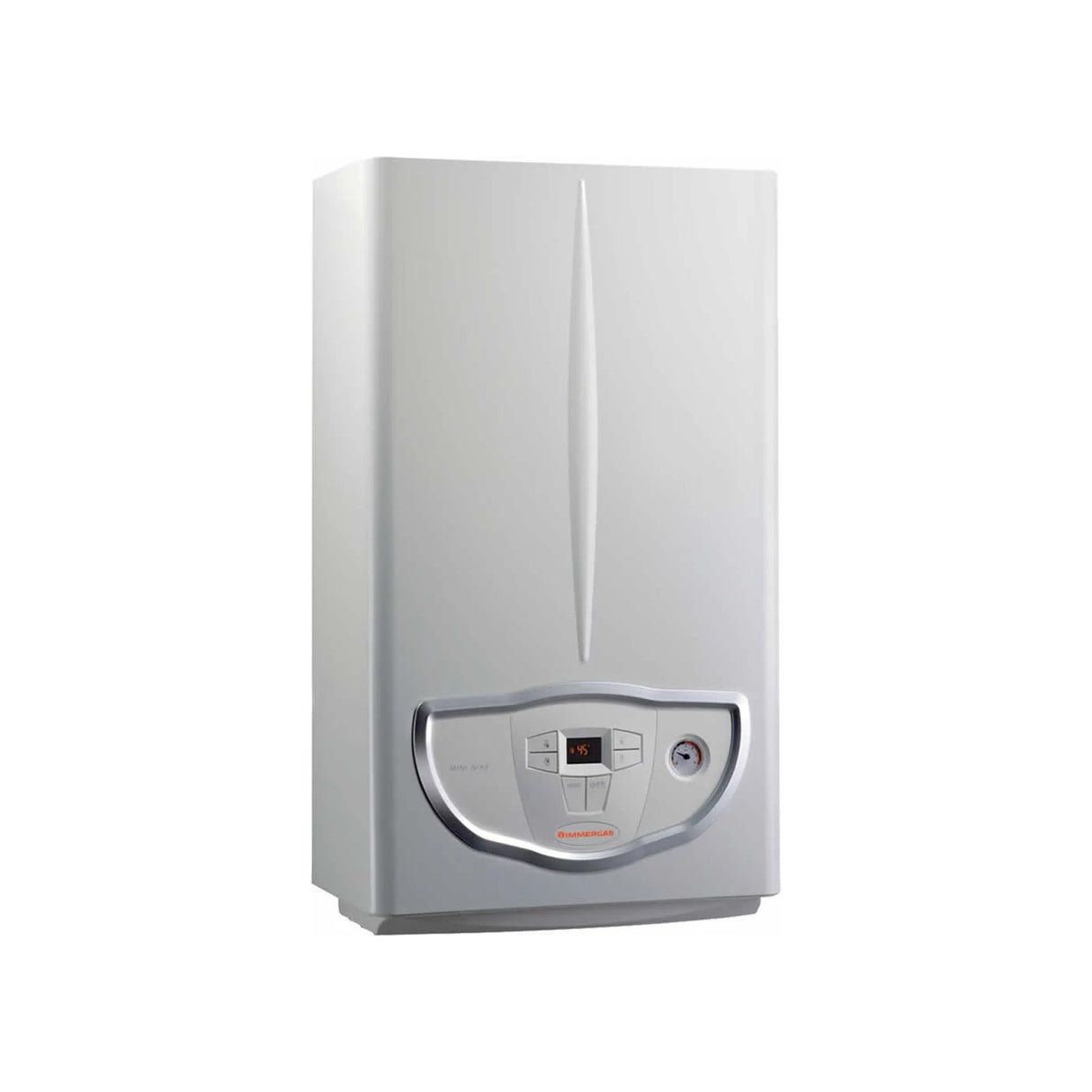

Immergas Open Chamber Gas Boiler MINI NIKE 24 kW LPG 3.025589

Technical features

• Model: Mini Nike 24
• Product code: 3.025589
• Maximum nominal heat input: 26.2 kW
• Minimum nominal heat input in DHW: 8.3 kW
• Minimum nominal heat input in heating: 10.9 kW
• Maximum useful thermal power: 23.8 kW
• Minimum useful thermal power in DHW: 8.1 kW
• Minimum useful thermal power in heating: 9.4 kW
• Useful thermal efficiency at 100% Pn (80/60 °C): 91%
• Useful thermal efficiency at 30% of the nominal load. (80/60 °C): 88%
• Minimum gas flow to the burner: 0.88 m ³ /h
• Maximum gas flow to the burner: 2.77 m ³ /h
• Weighted CO : 27 mg/kWh
• Weighted _NOX : 150 mg/kWh
• Specific flow rate in continuous domestic water service (∆t 30 °C): 11.4 l/min
• Minimum dynamic pressure in the domestic hot water circuit: 0.3 bar
• Nominal heating expansion tank capacity: 6.0 litres
• Electrical protection degree: IPX4D

Dimensions and weight

• Dimensions (HxWxD): 785x440x240 mm
• Empty weight: 26.1 kg

---

Immergas Mini Nike Instant compact mural with natural draft

Practicality and flexibility of installation

A fundamental feature of the range are the attachments unchanged compared to the previous MINI series. This peculiarity guarantees maximum ease of installation even during replacement. Furthermore, the compact dimensions and low weight ensure convenience and practicality of installation

Solar function

The boiler is designed to receive pre-heated water from a solar boiler. By activating this function in the boiler parameters, the burner turns on only if it is necessary to integrate the heating of the water coming from the solar boiler

Easy adjustment

The newly designed dashboard, with backlit display, allows easy and intuitive use of the boiler. The self-diagnosis system displays the operating status of the boiler, further simplifying maintenance of the appliance by qualified technicians

Ideal for connection to existing branched collective smoking pipes

MINI NIKE 24 ErP respects the thermal efficiency value (at 30% of the load) foreseen by Article 4, paragraph 7 of Presidential Decree 59/09 for cases of mere replacement of the boiler, with connection to branched collective flues (ccr)

Reduced electricity consumption

In compliance with the new ErP directive, the boiler is equipped with a low energy consumption circulator

---

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: C
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: IMMERSION
• metri quadri : 180
• modello: Mini_Nike_24
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 180
