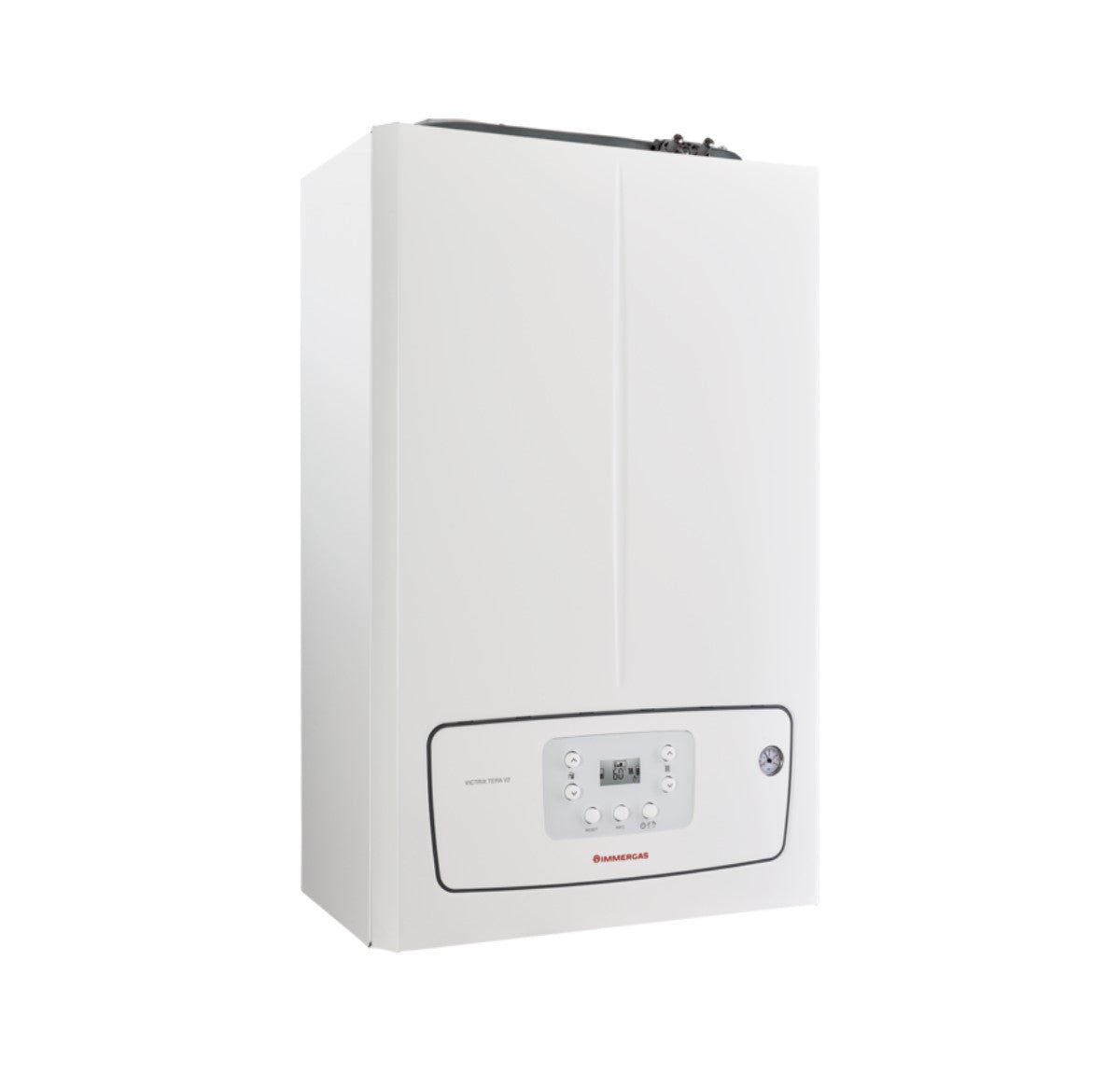

Immergas Condensing Gas Boiler VICTRIX TERA 24 PLUS V2 Methane Heating Only Complete with fume exhaust kit

Technical features

• Model: Victrix Tera 24 Plus V2
• Product code: 3.032929
• Fuel: Methane

Performance

• Maximum nominal heat input: 28.7 kW
• Minimum nominal heat input: 4.5 kW
• Maximum useful thermal power: 24.0 kW
• Minimum useful thermal power: 4.3 kW
• Useful thermal efficiency at 100% Pn (80 / 60 °C): 97.8%
• Useful thermal efficiency at 100% Pn (40 / 30 °C): 108%
• Minimum gas flow to the burner: 0.48 m ³ /h
• Maximum gas flow to the burner: 3.04 m ³ /h
• Weighted CO : 16.1 mg/kWh
• Weighted _NOX : 38.8 mg/kWh
• NO _x class: 6
• Minimum available intake/exhaust head: 5 Pa
• Maximum available intake/exhaust head: 163 Pa
• Nominal heating expansion vessel capacity: 8 litres
• Electrical protection degree: IPX5D

Dimensions and weight

• Dimensions (HxWxD): 748x440x253 mm
• Empty weight: 31.2 kg

Immergas Victrix Tera V2 Wall-mounted, compact and built-in, instantaneous and for heating only

VICTRIX TERA 24 PLUS can be used as a boiler for room heating only or connected via an optional kit to a boiler unit for the production of domestic hot water

Ideal for multiple withdrawals of domestic hot water

For large domestic hot water needs or for multiple simultaneous withdrawals, the combination with the separate boiler unit is possible with models from 80 up to 2000 liters

Combinations with solar thermal systems

The storage tank units with a capacity of 120 liters or more are designed for the combination of forced circulation solar thermal systems, including the UB INOX SOLAR 200 V2 version equipped with an integrated solar circuit. The VICTRIX TERA 24 PLUS boiler can be connected to the entire range of Immergas Solar Solutions

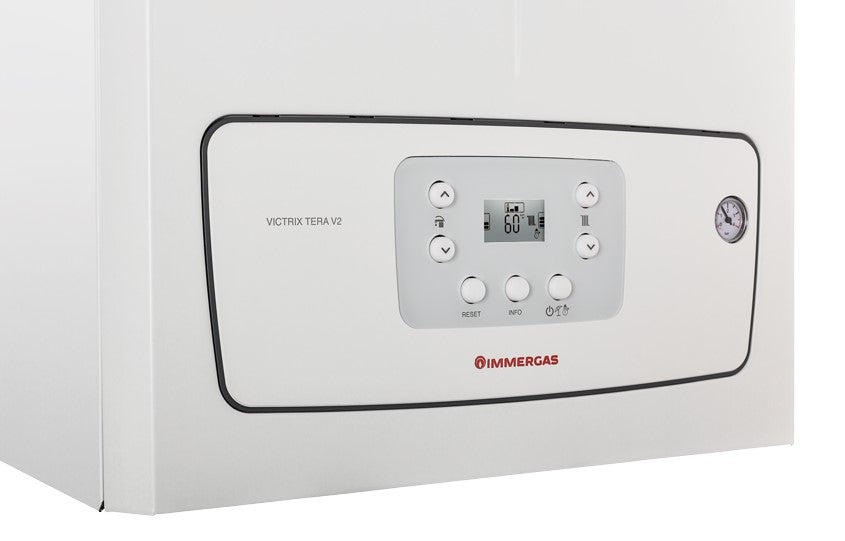

Simplicity of controls

The controls are simple, the LCD display is clear and the selection buttons for adjustments and settings are quick to operate.

Condensing module with stainless steel coil

Low consumption in Stand-By, less than 6 W

Class A circulator

The low consumption circulator allows for significant electricity savings compared to a traditional circulator and adapts its performance based on variations in the system's hydraulic flow rate, for example in the presence of thermostatic valves or zone valves

Indoor/outdoor and built-in installation

The range is approved for operation outside the home with a top cover kit for installation in partially protected places (3.027263). An electric resistance kit is available to increase the antifreeze protection from -5 °C to -15 °C (3.017324)

Built-in installation

The built-in installation in OMNI CONTAINER (3.016991) allows you to position the boiler outside in a niche and thus recover living space. To insert the boiler inside the OMNI CONTAINER it is necessary to use the optional support bracket (3.027129)

Remote adjustment

The boiler can be connected to the CAR ^V2 , the modulating chronothermostat that allows you to control the boiler comfortably from inside the home . The wireless SMARTECH PLUS chronothermostat with Bluetooth technology is also available: it allows you to adjust the heating temperature even with a smartphone via a dedicated app

Solutions for compact hybrid systems

The VICTRIX TERA range can be installed in TRIO V2/TRIO MONO V2 systems. Designed for combining the condensing boiler with AUDAX heat pumps and the use of solar thermal, they allow you to increase the energy performance of the building and exploit renewable energy while reducing harmful emissions . The TRIO V2 compact hybrid systems are ideal for small-sized apartments but also single-family houses . They can be installed flush-mounted or in specific technical cabinets, allowing the installation spaces for plant use to be reduced

Installation flexibility with trio

In applications with TRIO V2/TRIO MONO V2 the models of the VICTRIX TERA range can be installed in the SOLAR CONTAINER or in the DOMUS CONTAINER. The boiler support bracket is inserted as standard with the accessory kit for combination with AUDAX and instantaneous boiler and with the accessory kit for combination with AUDAX and PLUS boiler.

Formula Comfort 10

It takes advantage of the most complete maintenance program lasting 10 years without activation costs , with the possibility of extending it up to 15 years . In collaboration with the Immergas Authorized Assistance Centre, it can be activated during the initial check

Product guarantee: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: IMMERSION
• metri quadri : 120
• modello: Tera_24_Plus_Met
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
