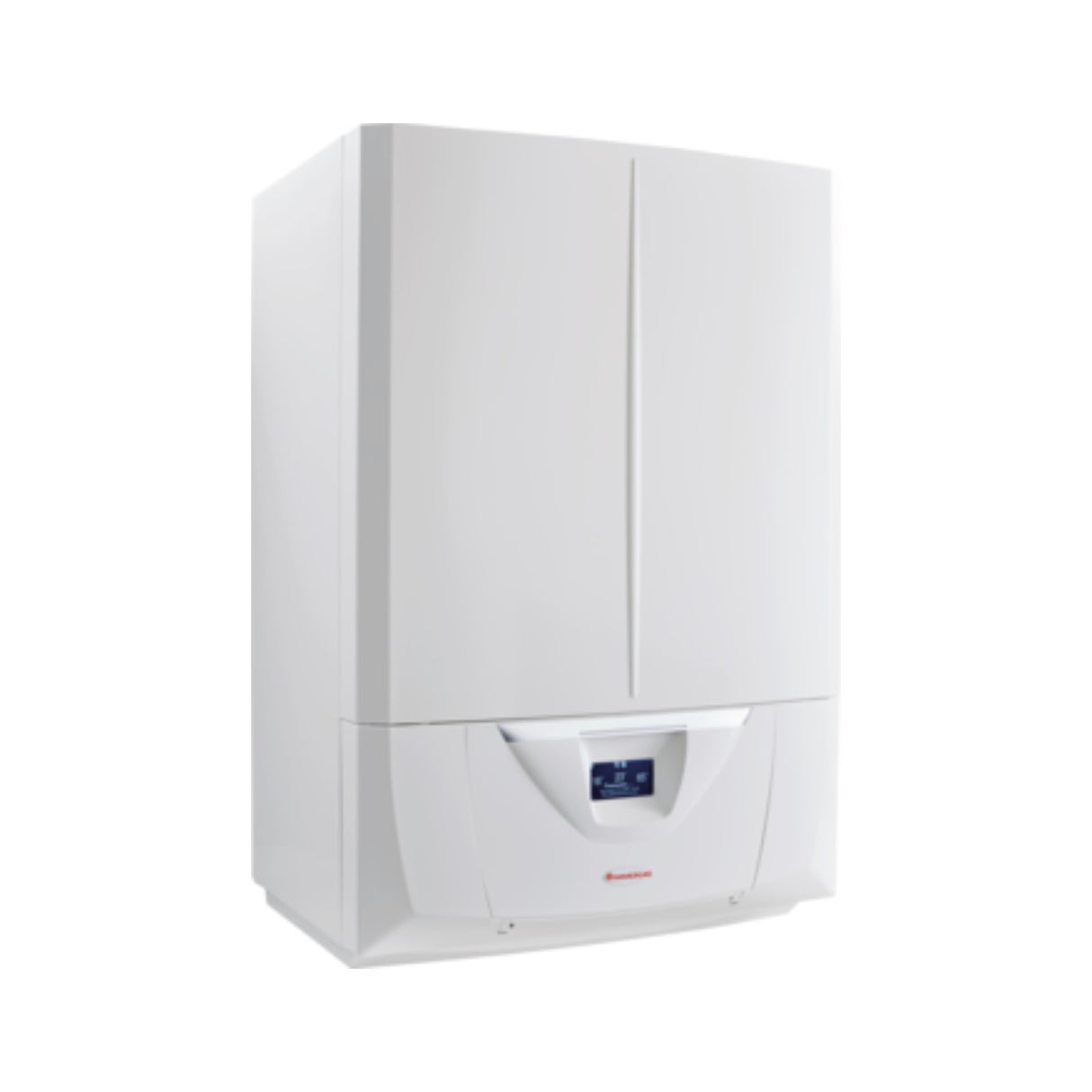

Immergas Condensing Gas Boiler VICTRIX ZEUS SUPERIOR 25 with 54 Liter Methane/LPG Boiler Complete with fume exhaust kit

Technical features

• Model: Victrix Zeus Superior 25
• Product code: 3.030900
• Energy class in heating: A
• Energy Class in sanitary ware: A
• Loading size: XL
• Maximum nominal heat input in DHW: 25.9 kW
• Maximum nominal heat input in heating: 20.8 kW
• Minimum nominal heat input in DHW: 4.9 kW
• Minimum nominal heat input in heating: 2.5 kW
• Maximum useful thermal power in DHW: 25 kW
• Maximum useful thermal power in heating: 20.2 kW
• Minimum useful thermal power in DHW: 4.7 kW
• Minimum useful thermal power in heating: 2.3 kW
• Useful thermal efficiency at 100% Pn (80 / 60 °C): 97%
• Useful thermal efficiency at 30% of the nominal load. (80 / 60 °C): 102.3%
• Useful thermal efficiency at 100% Pn (40 / 30 °C): 107.1%
• Useful thermal efficiency at 30% of the nominal load. (40 / 30 °C): 109.9%
• Minimum gas flow to the burner: 0.26 m ³ /h
• Maximum gas flow to the burner: 2.74 m ³ /h
• Weighted CO : 15 mg/kWh
• Weighted _NOX : 21 mg/kWh
• Fuel: Methane / LPG
• NO _x class: 6
• Minimum available intake/exhaust head: 2 Pa
• Maximum available intake/exhaust head: 151 Pa
• Nominal heating expansion vessel capacity: 8 litres
• Electrical protection degree: IPX5D

Dimensions and weight

• Dimensions (HxWxD): 900x600x460 mm
• Empty weight: 63.9 kg

Immergas Victrix Zeus Superior Wall condensing with 54 liter stainless steel boiler

New design, hi-tech electronic board, hydraulic performance and excellent comfort in new homes and replacements with the 54 liter boiler. The new VICTRIX ZEUS SUPERIOR condensing boilers have powers of 25, 30 and 35 kW, a very wide modulation range ( from 10% to 100% of the power ) to increase efficiency, low consumption circulator and condensing module with high-pressure coil. large section to reduce the risk of clogging

The ecological class of VICTRIX ZEUS SUPERIOR is 6 : the best for low harmful emissions (CO and NOx). All models can vent fumes to the wall and the standard flap allows for combination with positive pressure collective fume evacuation systems . The latest generation electronic card allows management of up to 3 zones from the dashboard , the controls are carried out with the comfortable knobs and the large display with backlit touch keys

The VICTRIX ZEUS SUPERIOR can also be installed outdoors in protected places and are supplied with a single product code because they work with methane, LPG or propane air. The hydraulic connections are identical to the previous models and the connection group is standard to facilitate installers in replacements

VICTRIX ZEUS SUPERIOR can achieve a higher energy classification, if combined with an advanced Immergas thermoregulator such as the SMARTECH PLUS or the CAR ^V2

SMARTECH PLUS Control boilers remotely and save

The hi-tech wireless SMART chronothermostat with Bluetooth technology allows you to adjust the heating temperature even with a smartphone via a dedicated app .

Switching the heating on or off can be based, via a special function, on the geolocation of family members : the app raises the temperature when one member of the family returns home and lowers it when the last one leaves. With the app you can manage up to 18 SMART thermostats even in different homes

SMARTECH PLUS is easy to use and reads well from any angle thanks to the e-ink technology used in digital readers.

It is also compatible, for some functions, with the virtual assistants Alexa and Google Home

The advantages of SMARTECH

• Modulating heating regulation in time bands with the display or remotely with the dedicated app (internet or Wi-Fi connection required)
• Switching on and off at time slots or with the geolocation of family members on the app
• Switching on and off at time slots or with the geolocation of family members on the app
• Very low consumption: it runs on batteries with an autonomy of up to more than 2 years
• High readability with e-ink display
• Control up to 18 SMART thermostats in different homes, via app

54 liter stainless steel boiler

The stainless steel guarantees that the kettle remains unalterable to the action of water and the large flange optimizes cleaning and maintenance operations. Inside the boiler there is a stainless steel coil wrapped in a double concentric spiral which ensures rapid heat exchange

Multiple withdrawals of domestic hot water

The capacity of the stainless steel boiler, combined with the excellent temperature regulation, made it possible to obtain the marking, i.e. maximum sanitary performance, guaranteeing high comfort even with simultaneous withdrawals of domestic hot water.

Sanitary expansion tank as standard

Approved for outdoors

Thanks to the new insulation that equips the stainless steel boiler and the standard protection up to 0 °C, VICTRIX ZEUS SUPERIOR boilers can be installed outdoors in a partially protected place. With an appropriate optional kit it is possible to extend it down to -15 °C (in the presence of electricity and gas). The electrical insulation degree is IPX5D

Formula Comfort 10

It takes advantage of the most complete maintenance program lasting 10 years without activation costs , with the possibility of extending it up to 15 years . In collaboration with the Immergas Authorized Assistance Centre, it can be activated during the initial check

Primary exchanger in stainless steel

The primary exchanger that equips the VICTRIX ZEUS SUPERIOR is made with a single-tube exchange coil in stainless steel . The absence of collectors and circuits in parallel guarantees maximum reliability over time : there are no solderings.

The single stainless steel spiral without bottlenecks allows for a perfectly balanced hydraulic circuit, significantly reducing pressure losses .

The internal section, large and constant , allows you to limit deposits, reducing the risk of clogging in the event of impurities present in the water (for example in the case of replacing boilers on dated systems).

Due to this peculiarity, VICTRIX ZEUS SUPERIOR are ideal for replacement

New and elegant design, Hi-Tech electronics

Equipped with dashboard closing door and large display always in view, backlit touch buttons and comfortable knobs for making adjustments.

The display is well lit and readable and the touch keys have excellent tactile feedback , in line with the high quality level of the product. In addition to the button lighting, the board is equipped with an acoustic signal capable of audibly highlighting the commands carried out by the user on the buttons

The hi-tech electronics make numerous new functions available such as the possibility of managing 3 zones directly from the boiler dashboard or the convenience of setting 4 comfort time bands and 4 calendars, for programming the system and DHW zones

The evolution in thermoregulation

Systems with multiple zones

Equipped as standard with latest generation electronics, it is possible to manage 3 zones with the aid of wireless room probes and concentrator (both optional). The setting of room temperatures and operating time slots takes place directly from the boiler dashboard or remotely via app (from phone, tablet or PC) with the help of the optional DOMINUS interface kit . Interface with home automation management systems with KONNEX X protocol is also possible (not supplied by Immergas)

In particularly large single-family villas, the management of the system can be entrusted to the DIM ErP system circuit breaker kit . The lower casing of the boiler is designed for fixing both the room probe concentrator and the DOMINUS interface card, making the kit assembly operations easier for the installer

Single-zone systems

These applications can be managed easily through the SMARTECH PLUS or with the or with the CAR ^V2 , both optional.

"Green series" plug-in flue system

The VICTRIX ZEUS SUPERIOR have a dedicated series of air intake/smoke exhaust kits made in such a way as to guarantee high resistance to corrosion and notable speed and functionality of installation, thanks also to the plug-in coupling system and gaskets seal made of special material. VICTRIX ZEUS SUPERIOR boilers can be installed in a sealed chamber and forced draft or open chamber and forced draft configuration
