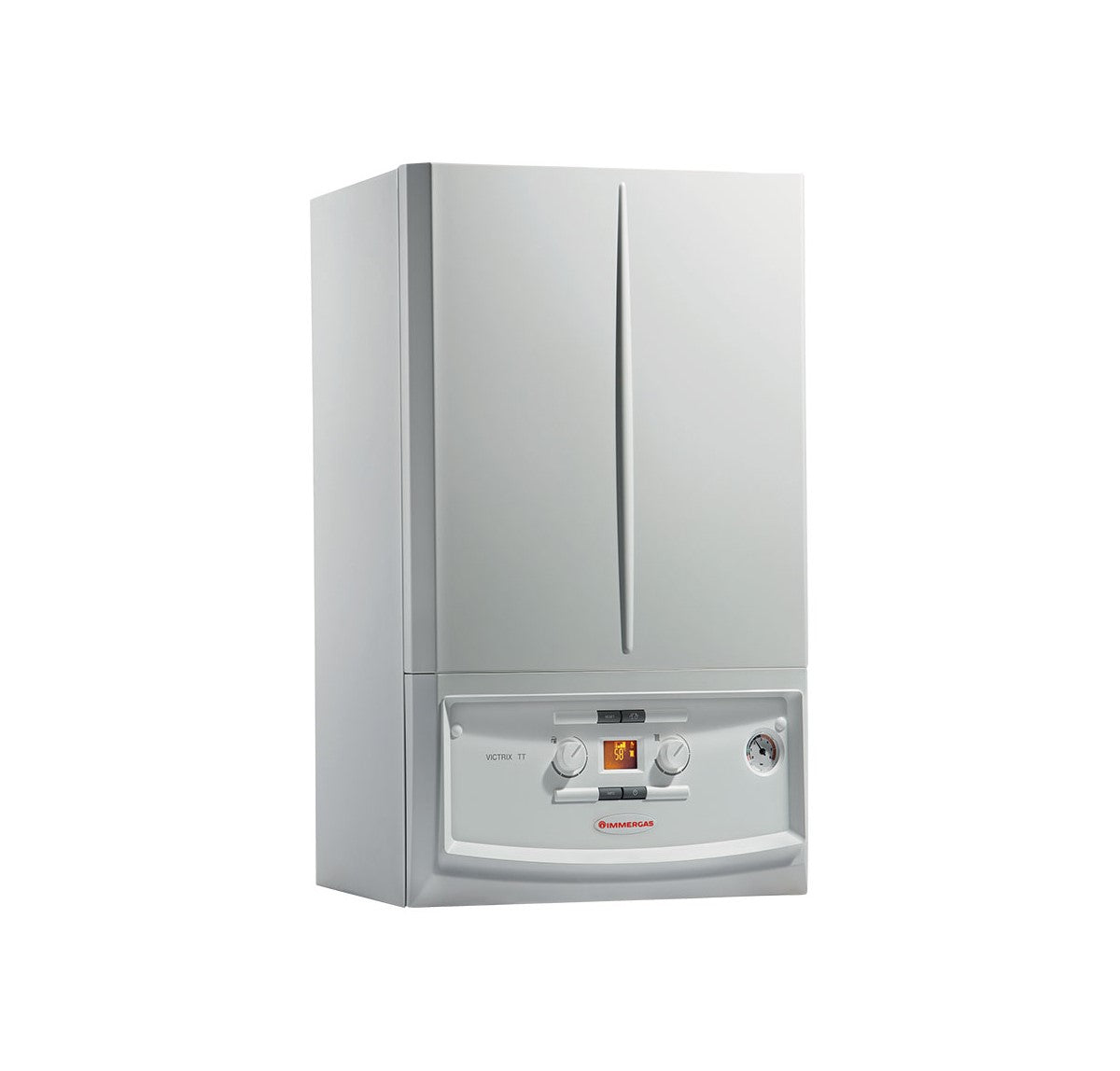

IMMERGAS VICTRIX 24 TT LPG ERP CONDENSING GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT Split flue kit, LPG

ATTENTION THE BOILER IS SUPPLIED WITH METHANE. LPG OPERATION THROUGH ADJUSTMENT BY THE AUTHORIZED ASSISTANCE CENTER. FOR INFORMATION, CONTACT YOUR LOCAL IMMERGAS ASSISTANCE IN ADVANCE

IMMERGAS VICTRIX 24 TT ERP CONDENSATION COMPLETE WITH SMOKE EXHAUST KIT

• Technical features
• Immergas Victrix 24 TT Condensing Boiler
• Capacity: 24 kW
• Useful heating power kW: 20.5
• Useful domestic hot water power kW: 23.6
• Type: Snapshot
• Modulation range: 15 - 100 %
• Hot water production (∆t 30 °C) l/min: 11.3
• IPX electrical protection rating: 5D
• Dimensions (HxWxD) mm: 748 x 440 x 280

VICTRIX TT

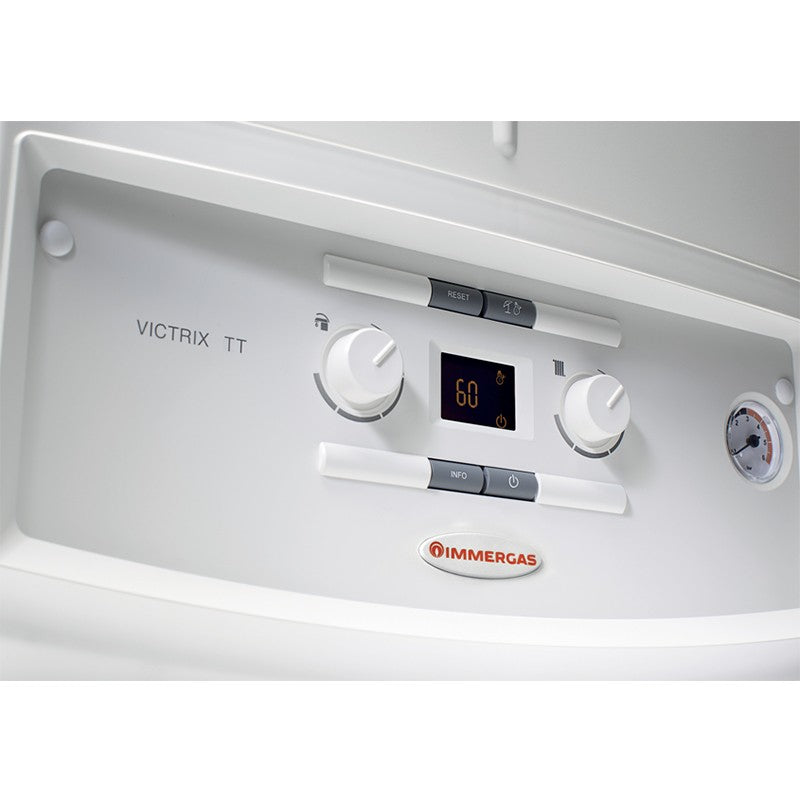

The VICTRIX TT ErP range, intended for new installations and above all for the replacement of existing appliances, has been designed to comply with the new European Directives on the use of energy, increasingly oriented towards condensing technology to more easily reach the efficiency classes high in space heating and in the production of domestic hot water in homes. VICTRIX TT ErP, produced in the new highly automated lines of the company's historic headquarters in Brescello, incorporates the innovative condensing module which guarantees high flow rate and head on the heating circuit, low risk of clogging due to any impurities in the system and greater corrosion resistance thanks to the special alloy with which it is made. Reduced consumption thanks to the class A circulator and boiler power modulation of up to 15%: ideal condition for mid-seasons or reduced loads. In addition to a very low environmental impact, the boiler has an advanced and easy-to-use user interface with adjustment knobs, selection buttons and LCD display for viewing operating temperatures, operating status and error codes.

HIGH HYDRAULIC PERFORMANCE

The condensing module has been designed to have large water passages which allow interesting flow and head performance even on old heating systems. This also means a low risk of clogging in the presence of impurities in the system water. It is made of a special Aluminium-Silicon-Magnesium alloy, a material which - together with the high thicknesses used - is particularly resistant to corrosion. The water circuit flows upwards through the exchanger, countercurrent to the flame. The dense pegging allows the exchange surface to be increased, guaranteeing excellent water yield. It is important to maintain the pH of the heating system filling water between 6.5 and 8.5 with a hardness of 15 °F (ref. UNI 8065 - DI 26/06/15).

CLASS A CIRCULATOR

The low consumption modulating circulator guarantees significant electricity savings compared to a traditional circulator, it can be set in Auto or Fixed operating modes.

WIDE MODULATION RANGE

The electronic card reduces operating costs thanks to particularly high yields even with low energy absorption as occurs for example in mid-seasons. In fact, the wide modulation range of the appliance (from 15% to 100% of the thermal power) determines high seasonal yields. LOW POWER CONSUMPTION IN STAND-BY (LESS THAN 6 W)

ADVANCED DESIGN

The VICTRIX TT ErP range is designed to make the work of professionals easier. Immergas has invested significant resources in the industrialization of the parts of the appliance, making it particularly robust and has paid the utmost attention to details and finishes. VICTRIX TT ErP presents new technical features such as:

• safety valve drain channeled into the condensate drain
• removable cover for direct access to the electrical connections compartment
• casing covering the hydraulic connections to better position the boiler within domestic spaces

DIRECT ACCESSIBILITY TO THE ELECTRICAL CONNECTIONS COMPARTMENT

In the lower part of the boiler there is a connection compartment accessible without the need to open the product but simply by removing the aesthetic cover, to accommodate the electrical connections of the main combinable devices (for example CARV2, external probe, CRONO 7).

ELECTRONIC AIR/GAS CONTROL

The electronic gas valve allows air/gas control via a multifunction electrode placed inside the combustion chamber; the car electronic card adapts the combustion parameters in case of variations in air or fuel density. This allows VICTRIX TT ErP to be powered with any type of fuel (methane/LPG or propane air), by only intervening on the electronic board software even at a later time (for example at the first commissioning by the Authorized Assistance Centre). The boiler is therefore supplied with a single product code.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: IMMERSION
• metri quadri : 120
• modello: VICTRIX 24 TT GPL
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
