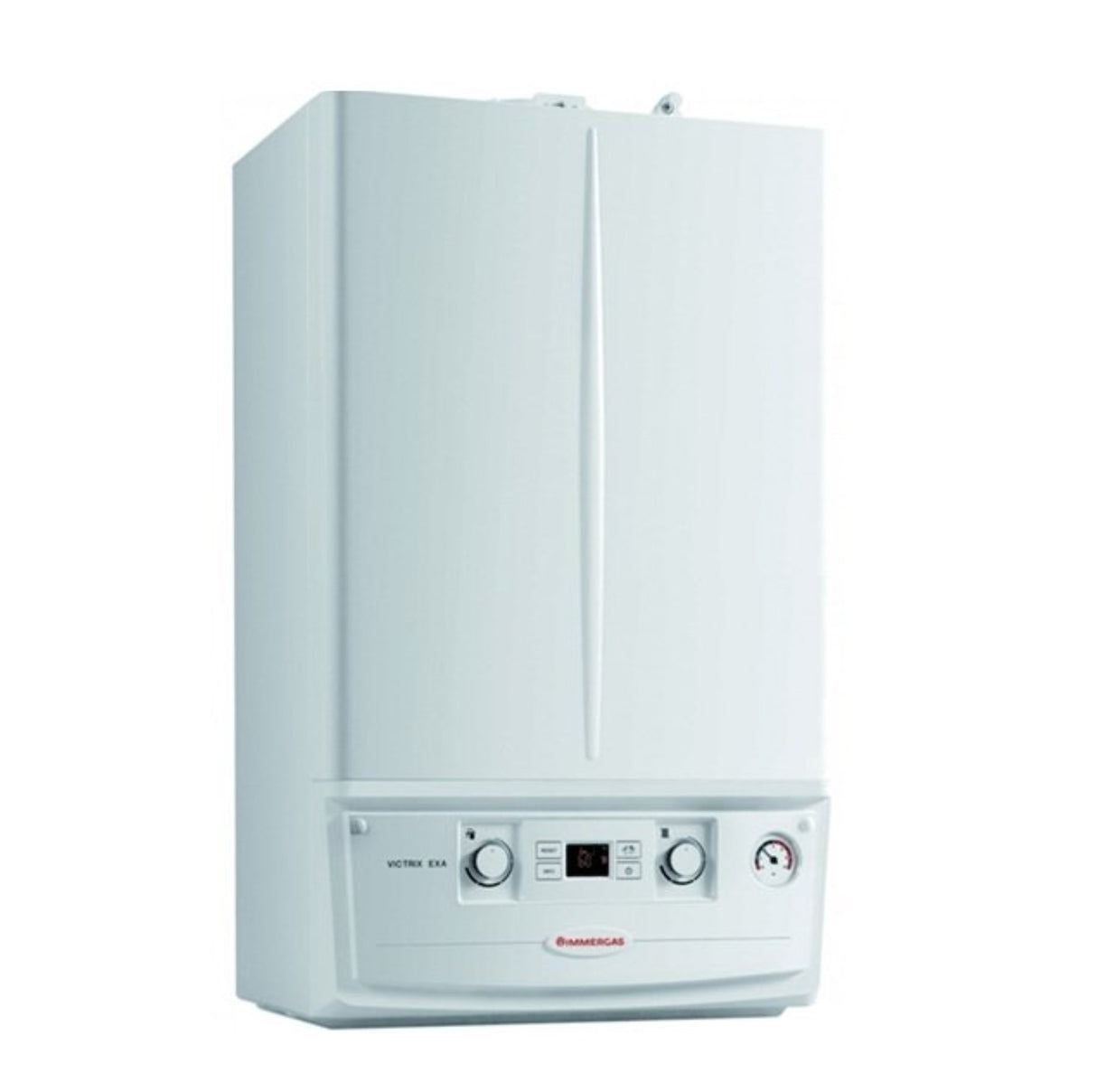

IMMERGAS VICTRIX EXA 24 KW LPG ERP CONDENSING GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT Split smoke kit

IMMERGAS VICTRIX EXA 24 KW LPG ERP CONDENSING GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT

• Immergas Victrix Exa 24 kW boiler
• Capacity: 24 kW
• Useful heating power kW: 23.7
• Useful domestic hot water power kW: 27.7
• Type: Snapshot
• Modulation range: 23 - 100 %
• Hot water production (∆t 30 °C) l/min: 13.2
• IPX electrical protection rating: 5D
• Fuel: LPG or methane
• Dimensions (HxWxD) mm: 763 x 440 x 300; 42kg

VICTRIX EXA

With VICTRIX EXA a generation of condensing boilers is born that offers all the advantages of condensation with maximum simplicity and economy. Designed to comply with the new European ErP and ELD Directives, it allows you to more easily reach high efficiency classes in space heating and in the production of domestic hot water in homes. The condensing module is made of stainless steel and the circulator is low consumption. The modulation range of the appliance goes from 23 to 100% of the thermal power. The user interface is simple to use, it is equipped with adjustment knobs, selection buttons and an LCD display which displays the operating status and any error codes.

• VICTRIX EXA can also be managed from smartphones, tablets and laptops (the DOMINUS App will be available from January 2016). The casing covering the hydraulic connections is standard, to better accommodate the boiler within domestic spaces. Approved for operation indoors or outdoors in a partially protected place thanks to the IPX5D electrical protection degree, the boiler is equipped with standard antifreeze protection down to -5 °C. VICTRIX EXA can also be used in GAUDIUM SOLAR BASE ErP systems. With reduced emissions of carbon monoxide (CO) and nitrogen oxides (NOX), VICTRIX EXA falls into class 5, the most ecological required by European standards (UNI 297 and 483).
• The VICTRIX EXA range offers all the advantages of condensation with maximum simplicity and economy. The technology most compatible with the new European Directives and with the aim of reducing energy consumption, is presented in the most economical and effective way for many new installations and replacements of existing appliances. The VICTRIX EXA are two 24 and 28 kW instantaneous boilers, capable of significantly contributing to raising the energy efficiency class in space heating and in the production of domestic hot water. Wall installation is easy both indoors and outdoors and the VICTRIX EXA range also offers the possibility of operating with propane air by choosing the dedicated conversion kit. The condensing module is made of stainless steel and the circulator is low consumption, everything is made more comfortable and easy to install thanks to the compact dimensions. The user interface is simple to use, it is equipped with adjustment knobs, selection buttons and an LCD display which displays the operating status and any error codes. The lower casing to cover the connection pipes is standard, while the connection unit is optional for all models

• SIMPLICITY OF CONTROLS The boiler also features an advanced and easy-to-use user interface with LCD display, selection buttons and adjustment knobs. The latter allow you to make temperature adjustments quickly and easily.
• ECOLOGICAL VICTRIX EXA BOILER has reduced emissions of carbon monoxide (CO) and nitrogen oxides (NOx) such that it falls into class 5, the most ecological in the classification established by the European regulations UNI EN 297 and UNI EN 483. They can therefore discharge to the wall in the cases provided for by Legislative Decree 102 of 4 July 2014.
• CLASS A CIRCULATOR The low consumption circulator allows for significant savings in electricity compared to a traditional circulator and adjusts its consumption based on variations in the system's hydraulic flow rate, for example in the presence of thermostatic valves or zone valves.

LOW POWER CONSUMPTION IN STAND-BY (LESS THAN 6 W)

Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe efficienza energetica: A
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: IMMERSION
• metri quadri : 120
• modello: CALD_1443G
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
