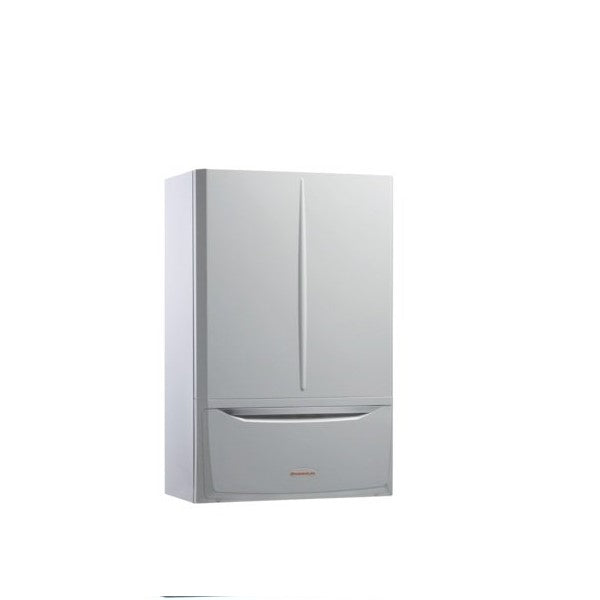

IMMERGAS VICTRIX MAIOR 35 TT PLUS CONDENSING GAS BOILER WITH LPG HEATING ONLY WITH SMOKE EXHAUST KIT Split flue kit, LPG

ATTENTION THE BOILER IS SUPPLIED WITH METHANE. LPG OPERATION THROUGH ADJUSTMENT BY THE AUTHORIZED ASSISTANCE CENTER. FOR INFORMATION, CONTACT YOUR LOCAL IMMERGAS ASSISTANCE IN ADVANCE

IMMERGAS VICTRIX MAIOR 35 TT PLUS CONDENSING GAS BOILER WITH LPG HEATING ONLY WITH SMOKE EXHAUST KIT

---

Technical features

• Product Code: 3.024881
• Type: Heating Only
• Class A heating energy efficiency
• Nominal heating/DHW heat output kW 34.9
• Maximum nominal useful power for heating/DHW kW 34.2
• Useful thermal efficiency at 100% Pn (80/60 °C) 97.9%
• Useful thermal efficiency at 30% of the nominal load. (40/30 °C) 108.5%
• Supply voltage/frequency: 230/50 Volt/Hz
• Expansion vessel 10 liters (real 7.1)
• IP X5D electrical insulation rating
• Modulation range: 10 - 100%
• Boiler dimensions (HxWxD) 748 x 440 x 276 mm
• Empty boiler weight 35.8 kg
• Gas version available: LPG

Product pluses:

• Wide modulation range
• Electronic ignition with ionization control
• Ideal for multiple withdrawals of domestic hot water (combined with a boiler)
• High hydraulic performance
• Integrates with solar systems

---

VICTRIX MAIOR 35 TT PLUS

• Wall-mounted condensing boiler, for sealed chamber heating only.
• Maximum comfort according to European standards. Combined with a boiler, it is ideal for simultaneous use of boiler water

• Particularly ideal for homes with multiple services or for all situations that require large withdrawals quickly, it guarantees a notable production of domestic hot water. Boiler and Storage Tank Unit can also be installed in different environments, thus increasing installation flexibility. It is characterized by the innovative primary exchanger which guarantees high flow rates and heads on the heating circuit, even as a replacement for old systems, with low risk of clogging , and for the presence of an "evolved" electronic board with electronic gas change ( without replacing the nozzles) and self-adapting combustion control system.

• The new electronic board modulates the heating power of the boiler by up to 12% and together with the low consumption circulator increases energy savings. The instantaneous models are equipped with a flow regulator and DHW inlet probe to obtain high DHW comfort: 3 stars *** according to the EN 13203 -1 standard.

• Also worth highlighting is the wide modulation range (from 10 to 100%) with high yields even in the presence of low energy absorption. The boiler also features an advanced and easy-to-use user interface with adjustment knobs, selection buttons and LCD display. Thanks to condensation technology, it has a high efficiency and guarantees particularly low polluting emissions (NOX class 5).
• VICTRIX MAIOR TT PLUS is designed for outdoor operation in places partially protected from atmospheric agents (rain and snow) and is equipped with a standard antifreeze system that protects it down to temperatures of -5 °C (with optional kit up to - 15 °C); furthermore it can be installed recessed inside the SOLAR CONTAINER or inside the home in the specific DOMUS CONTAINER technical cabinet: this allows you to have solutions such as GAUDIUM SOLAR PLUS V2 (only with “BASE” hydronic groups)

COMFORT

• High hydraulic performance: the innovative condensing module guarantees high flow rate, low risk of clogging due to impurities in the system water, greater resistance to corrosion thanks to the special alloy.

• Kettle: set up as standard for combination with a kettle with a capacity of 80 up to 2000 litres, it guarantees high production of hot water.

• Thermoregulators: optional. They improve comfort and increase energy savings.

• DOMINUS app: optional. <strong">Simple and intuitive, it allows you to check the operation and temperature of the boiler, activate its switching on and off from anywhere via smartphone or tablet. Using the optional Wi-Fi transmitter kit (code 3.026273), to be inserted to a wireless modem/router, it is possible to communicate with the boiler electronic board from anywhere.

ENVIRONMENTAL COMPATIBILITY

• Eco-compatible technology: complies with the European ErP and ELD Directives, allowing high energy efficiency classes to be achieved in heating and hot water production.

• Ecological class 5 (European Standards UNI 297 and 483): the best for reduced emissions of nitrogen oxides (NOX).

• Renewable energy: via a boiler with a capacity of 120 liters or more, the boiler can be connected to solar thermal systems for greater production of hot water.

• Combination with solar thermal systems The storage tank units with a capacity of 120 liters or more are designed for the combination with forced circulation solar thermal systems, including the UB INOX SOLAR 200 ErP version equipped with an integrated solar circuit. VICTRIX MAIOR 35 TT PLUS can be connected to the entire range of Immergas Solar Solutions

INSTALLATION

• High flexibility: approved to operate indoors and outdoors in partially protected locations. IPX5D electrical protection. Antifreeze as standard down to -5 °C.

This is a very important directive established by the European Union and at the same time it is a decisive path that will lead the whole of Europe to reduce pollution and improve the lives of citizens. The ErP directive (2009/125/EC) - the acronym stands for "Energy Related Products" - sets very precise reference points for the manufacturing of eco-compatible products and defines the minimum mandatory requirements of energy and environmental performance for instruments that consume energy. The goal is to reach the famous 20-20-20 by 2020. This repetition of the number 20 serves to more easily remind everyone of the three central purposes of the legislation:

• INCREASE THE ENERGY EFFICIENCY OF ENERGY CONSUMPTING MACHINES BY 20%

• REDUCE CARBON DIOXIDE (CO2) EMISSIONS IN THE ATMOSPHERE BY 20%

• ACHIEVE A PERCENTAGE OF RENEWABLE ENERGY IN FINAL CONSUMPTION OF 20%

---

Product Warranty: The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: IMMERSION
• metri quadri : 250
• modello: VICRTIX MAIOR plus 35 GPL
• potenza in kw: 35
• potenza nominale: 35
• superficie riscaldabile mq: 250
