IMMERGAS VICTRIX SUPERIOR 26 KW CONDENSING GAS BOILER COMPLETE WITH KIT FOR METHANE FLUE EXHAUST - NEW ERP Split flue kit, methane

IMMERGAS VICTRIX SUPERIOR 26 KW CONDENSING COMPLETE WITH KIT FOR METHANE SMOKE EXHAUST - NEW ERP

---

Characteristics:

• Class A heating energy efficiency
• Class A sanitary energy efficiency
• Sanitary load profile: XL
• Useful heating power: 23.6 kW
• Useful domestic hot water power: 26 kW
• Type: INSTANTANEOUS wall-mounted condensing boiler
• Dimensions (HxWxD): 835 x 440 x 350

• Useful thermal power for hot water production kW (kcal/h) 26.0 (22,360)
• Adjustable DHW temperature °C 30 - 60
• Minimum dynamic pressure in the domestic hot water circuit 0.3 bar
• Max DHW circuit pressure bar 10
• Min domestic hot water withdrawal litres/min 1.5

• Nominal system expansion vessel capacity / (real) liters 8.0 / (5.8)
• Maximum operating temperature of the system °C 90
• System expansion vessel pre-charge pressure 1.0 bar

---

ELECTRICAL DATA:

• Electrical supply V/Hz 230 - 50
• Nominal absorption A 0.63
• Power consumption in stand-by W 5.6
• IP X5D electrical insulation rating

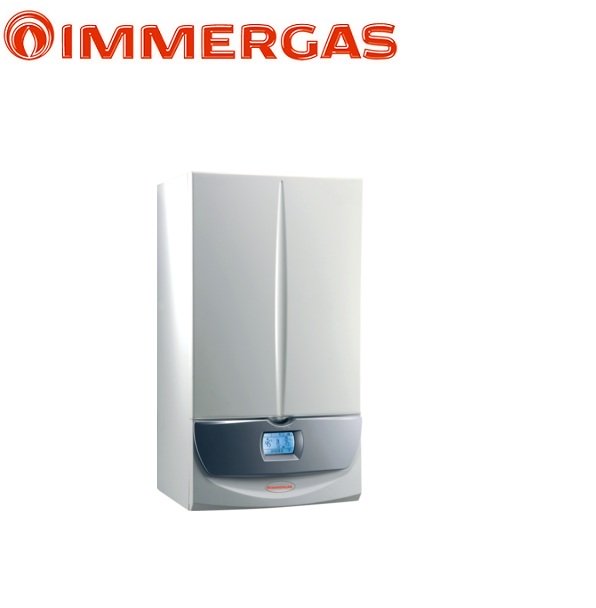

Immergas Victrix Superior 26 ErP wall-mounted condensing boiler

• The new Immergas Victrix Superior 26 ErP wall-mounted condensing boilers offer performance and services with high standards, the certainty of complying with the operations required by law, annual ordinary maintenance and analysis of combustion products every two years, constant assurance of reliability and savings.

The new Immergas Victrix Superior 26 ErP instantaneous condensing boiler offers more hot water, immediately!

---

HYDRAULIC PERFORMANCE

• With the low energy consumption modulating circulator and the possibility of setting the ∆t on the system, these boilers are ideal for systems equipped with zone and thermostatic valves, to enhance the condensation operation of the appliance, reducing energy consumption.

HEALTH COMFORT

• The Immergas Victrix Superior 26 ErP condensing boilers have obtained recognition for the highest level of sanitary comfort pursuant to the EN 13203 -1 standard. This marking attributes a value in terms of comfort which is indicated with a minimum of 0 and a maximum of 3, evaluating: the waiting times for the domestic hot water, the stability of the temperature when the flow rate varies, the temperature stabilization time itself, etc.

---

Warranty

The warranty on this item is 24 months from the date of purchase.

---

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: Methane
• marca: IMMERSION
• metri quadri : 150
• modello: VICTRIX SUPERIOR 26 METANO
• potenza in kw: 26
• potenza nominale: 26
• superficie riscaldabile mq: 150
