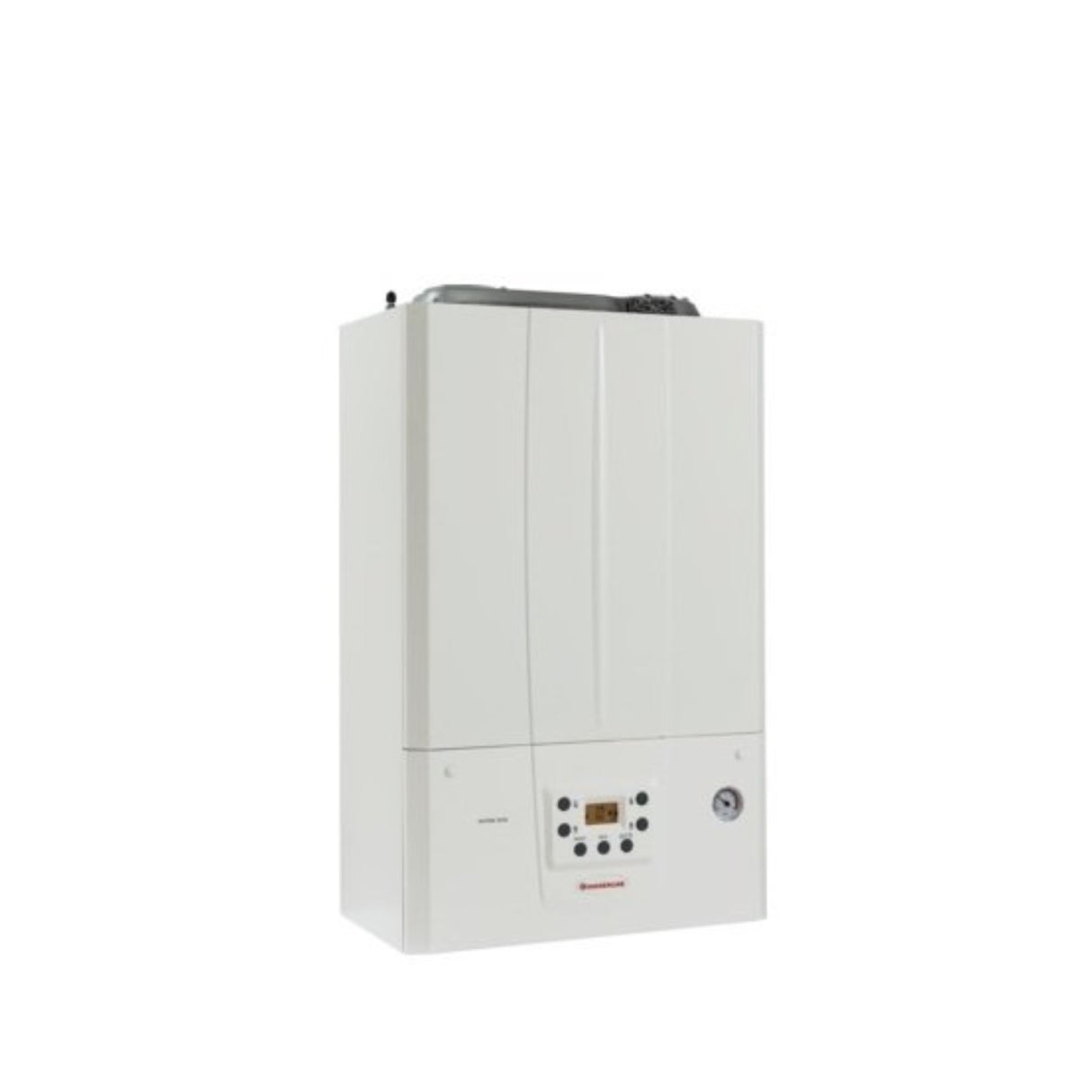

IMMERGAS Condensing Boiler VICTRIX TERA 24 Kw Complete with LPG Fume Exhaust Kit

AVAILABLE TO ORDER

IMMERGAS CONDENSING BOILER VICTRIX TERA 24 KW COMPLETE WITH KIT FOR LPG SMOKE EXHAUST

---

Technical features

Product code: 3.027368
Energy label specifications according to the European ErP directive

• Heating energy efficiency class
• Sanitary energy efficiency Class
• Pickup profile: XL

Heating/DHW operation characteristics:

• Maximum nominal heat input in DHW 28.8 kW
• Maximum nominal heat input in heating kW 24.6
• Useful thermal efficiency at 30% of the nominal load. (80 / 60 °C) % 102.3
• Specific flow rate in continuous domestic water service (∆t 30 °C) l/min 13.5
• Nominal heating expansion vessel capacity (total) liters 8 (5.8)
• IP X5D electrical protection rating
• Weight of boiler full of water (empty) kg 35.8 (33.6)
• Dimensions and installation diagram:

---

VICTRIX TERA

Everything you need, immediately and in a small space

• It is the new line that strengthens the Immergas range with boilers dedicated to those seeking quality and simplicity. All the appliances are condensing and above all fully premixed to save gas with efficiency. The dimensions are compact and the easy placement allows you to adapt flexibly to new installations or to the replacement of existing appliances at home, outside in protected places, built-in with OMNI CONTAINER.

• There are two instantaneous versions - 24 and 28 kW - and one for heating only, 24 kW, which can be combined with boilers of various capacities. The entire range is equipped with a condensing module with stainless steel coil and designed to comply with the new European Directives on energy use.

• VICTRIX TERA boilers fall into class 6, the most environmentally friendly in the European classification, for low emissions of carbon monoxide (CO) and nitrogen oxides (NOx). All versions can discharge fumes to the wall in the cases provided for by Legislative Decree 102 of 4 July 2014. The controls are simple, the LCD display is clear and the selection buttons for adjustments and settings are activated quickly.

Features and strengths:

• Low consumption: the low consumption circulator allows significant savings in electricity.
• Standard: covering the hydraulic connections improves the aesthetics of domestic environments.

Comfort

• Ease of use: practical buttons and a backlit display allow you to easily manage and view the boiler settings.
• DOMINUS App: simple and intuitive, it allows you to check the operation and temperature of the boiler, activate its switching on and off from anywhere via smartphone or tablet. Optional.

Environmental compatibility

• Eco-compatible technology: complies with the European ErP and ELD Directives, allowing high energy efficiency classes to be achieved in heating and hot water production.
• Ecological class 6 (European Standards UNI 297 and 483): the best for reduced emissions of nitrogen oxides (NOX).

---

Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• costospedizionecad: IT25;AD113;AT73;BE75;BG88;HR89;DK125;EE122;FR94;DE63;LV94;LT88;LU59;NL68;PT82;CZ66;SK73;SI74;ES75;SE131;HU56;CH135;
• gas: LPG
• marca: IMMERSION
• metri quadri : 120
• modello: VICTRIX TERA 24 GPL
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
