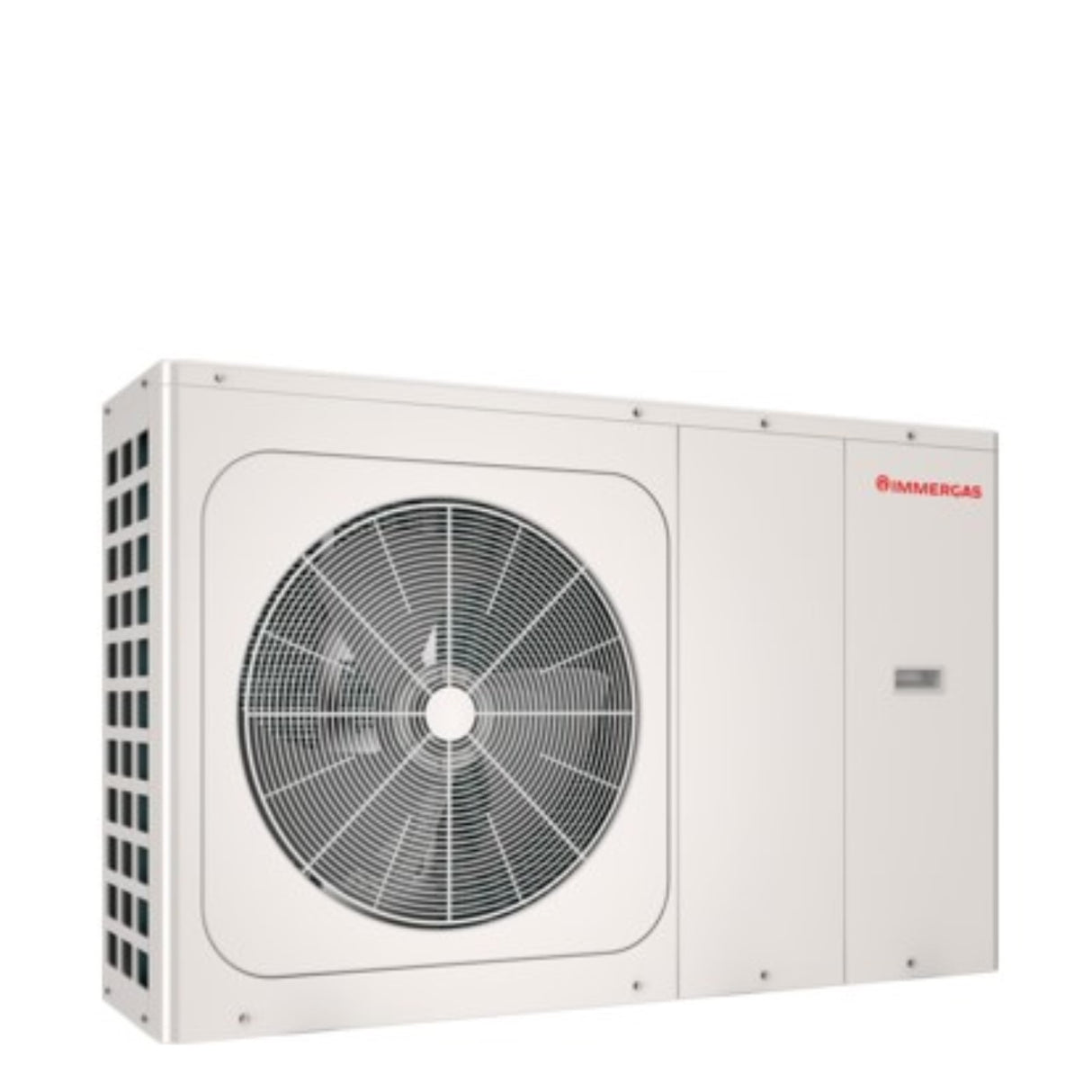

Air-Water Inverter Heat Pump Immergas MAGIS M12-T R-32 Three-Phase With Control Included 3.032378

• Useful power in heating with water set at 35° C: 11.70 kW
• Useful power in heating with water set at 45° C: 12.30 kW
• Useful power in heating with water set at 55° C: 11.90 kW
• Heating temperature range: 12° ~ 65° C

Electrical Data

• Power (V,Hz, Ø): 380~415/50/3
• Refrigerant gas: R32
• Operating range
• - Cooling: -5° ~ 43° C
• - Heating: -25° ~ 35° C
• - DHW: -25° ~ 43° C

Immergas MAGIS M heat pump Clean and safe energy for heating and cooling

The stringent regulations on new homes and significant renovations push towards advanced forms of air conditioning with a view to reducing consumption, environmental impact and harmful emissions . The IMMERGAS range of heat pumps is designed to provide great comfort by creating electric heating, cooling and domestic hot water production systems

MAGIS M Monobloc hydronic air-water heat pump

the new monobloc hydronic air/water heat pump, hermetically sealed, characterized by ease of installation and the possibility of creating batteries up to 180 kW

New range

The new range of MAGIS M hydronic heat pumps includes 13 versions. Powers from 4 kW to 30 kW are available. All models can work independently or in combination with IMMERGAS condensing boilers with the help of the system manager. It is also possible to create batteries up to 180kW. The 4 to 12 kW versions can be combined with the MAGIS VICTRIX ErP and MAGIS HERCULES ErP hybrid systems.

Simplified installation

Pre-charged with eco-friendly low GWP R32 refrigerant and hermetically sealed , MAGIS M monobloc hydronic heat pumps do not require an F-gas license for installation, thus simplifying connections and installation.

Lower energy consumption and high silence

The new MAGIS M heat pumps have the highest A+++ energy classes on all models from 4 to 26 kW, guaranteeing very low electrical absorption and energy consumption . The "inverter" technology further reduces consumption by increasing the performance of the machines, especially in the mid-seasons when the heat requirement is reduced. The single fan in residential sizes, up to the 16 kW model, the Silent Mode function provide benefits in terms of noise reduction

Stand Alone Applications

MAGIS M can be applied in stand-alone systems thanks to the standard control panel which allows the configuration and monitoring of the correct functioning of the machine, self-diagnosis, management of 2 system circuits and a DHW circuit, the anti-legionella function, management recirculation pump, solar thermal system, photovoltaic contact, control of any DHW or system supplementary electrical resistors, also acting as a room chronothermostat for a system area

Applications with system manager

Using the System Manager with MAGIS M allows you to create more elaborate system configurations or with more than 2 zones while also implementing the functions. For example, it is possible to manage integrated systems with boiler, control a solar thermal system with a specific boiler probe, install batteries for up to 4 devices with sequential operation of the machines
