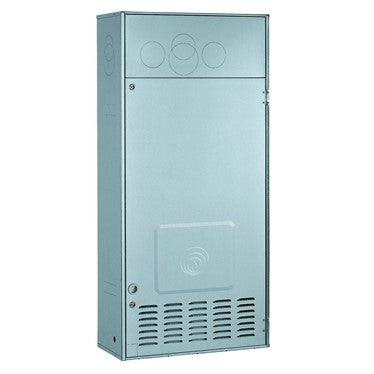

OMNI CONTAINER BUILT-IN FRAME FOR IMMERGAS BOILERS

Technical features

The Omni Container kit has been designed to keep the installation space required for built-in boilers in external and internal walls to a minimum. The lower part of the frame is equipped with holes necessary for the water, gas, electrical, condensate drain connections and for the connection of the Remote Friend Control. In the upper part there are holes for the exit to the flue ("type B" and "type C" installations) and to the intake duct (only for "type C" installation) with the use of the marked flue type Immergas.

Warning : The installation of the Omni Container kit inside the wall must guarantee stable and effective support for the boiler. This kit ensures adequate support only if inserted correctly (according to the rules of good technique) following the instructions below. The Omni Container kit is not a load-bearing structure and cannot replace the removed wall, it is therefore necessary to check its positioning inside the wall. For safety reasons it is necessary to appropriately seal the niche housing in the masonry wall, in compliance with current regulations. NB: leave the front drain holes under the door (4) free. Otherwise, if water were to enter, it would not be able to get out. - Insert the frame into its seat, remembering to open the four support flaps (2) before inserting it. - Once the frame has been installed, the boiler can be inserted by hooking it to the support hooks located on the bottom of the frame itself.

Dimensions (HxWxD): 1190x566x254
