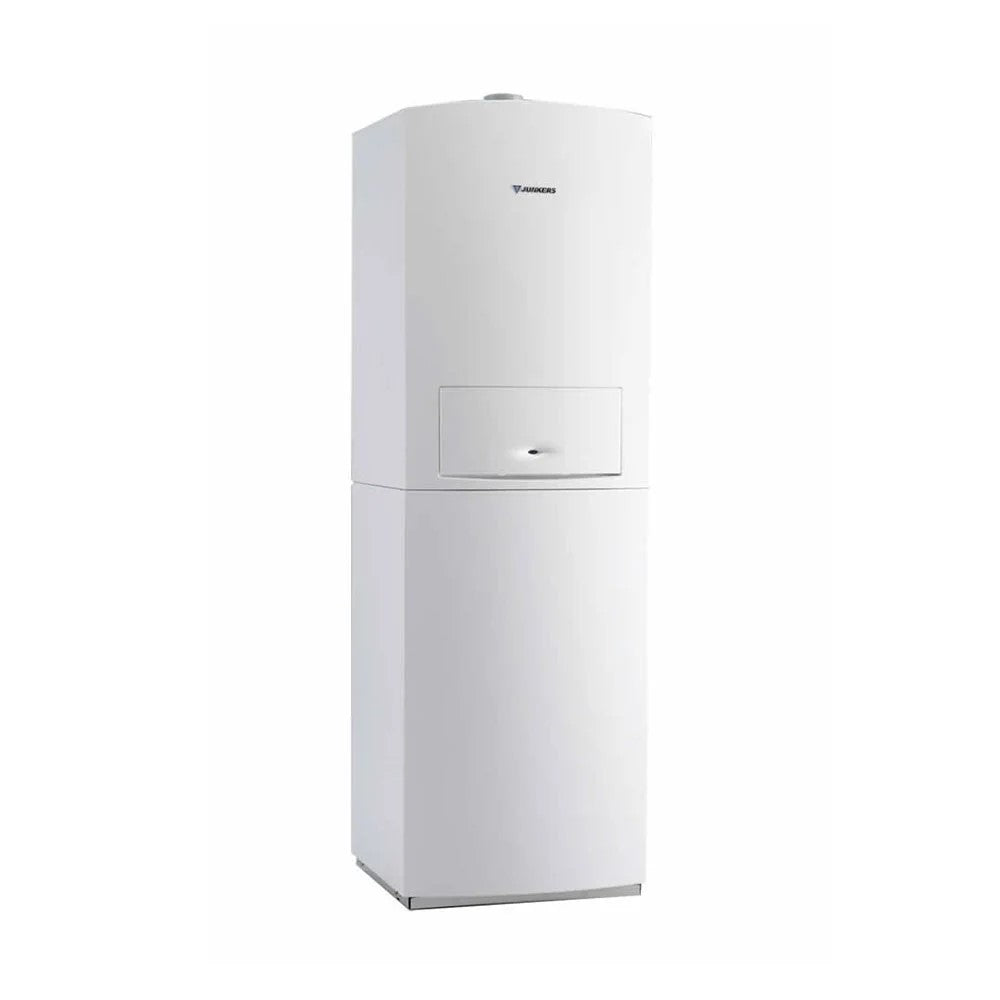

Junkers Bosch floor-standing condensing boiler CERAPUR MODUL SOLAR ZBS 30/210-3 SOE of 30 kW methane 7738100533 with integrated stratified solar boiler

ATTENTION ! The boiler will be supplied with methane, for the conversion to LPG and propane air contact your local Thermotechnical Assistance.

Technical features

• Model: Cerapur Modul Solar ZBS 30/210-3 SOE
• Product code: 7738100533
• Installation: Internal / external
• Positioning: On the floor / on the ground
• Fuel: Methane

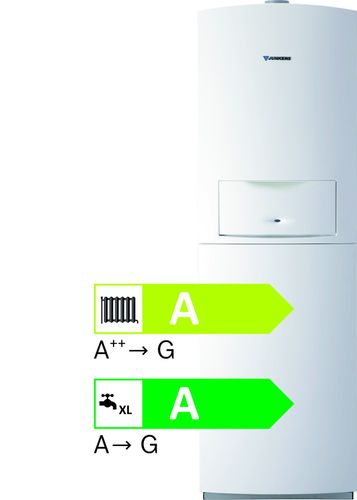

Energy efficiency

• Heating energy efficiency class: A
• Water heating energy efficiency class: A
• Declared load profile: XL
• Seasonal space heating energy efficiency: 92%

Performance

• Nominal heat input: 6.5 ~ 30.0 kW
• Nominal heat output 40°/30°: 7.1 ~ 30.6 kW
• Rated heat output: 6.4 ~ 29.4 kW
• Specific flow rate (∆T = 30 K): 26.2 l/min
• Kettle capacity: 204 litres
• Useful efficiency 40°/30°: 103 ~ 109 %
• Useful efficiency 80°/60°: 98.5%
• Heating expansion vessel capacity: 12 litres
• Sanitary expansion tank capacity: 8 litres
• Solar expansion tank capacity: 16 litres
• Residual fan head: 80 Pa
• NOx class: 6
• Electrical protection degree: X4D

Dimensions and weight

• Dimensions (PxWxH): 600x600x1860 mm
• Weight: 171 kg

Floor standing condensing boiler with integrated solar stratified cylinder Cerapur Modul Solar

Compact solar system

The solar system is really very compact, in fact, in approximately 0.4 m², there are all the components necessary for the creation of a solar thermal system for the production of domestic hot water (DHW). Collectors are excluded.

Maximum healthcare comfort

The boiler has been assigned, by the European Standards EN13203-1/2, the "3-star sanitary comfort", i.e. the maximum score obtainable from appliances for the production of domestic hot water.

Robust and reliable boiler

The robustness and reliability of the boiler are a guarantee, thanks to the primary exchangers made with a resistant Al-Si aluminum alloy.

Guaranteed energy savings

Savings in energy consumption are guaranteed up to an extra 10%, thanks to the intelligent stratification function of the 204 liter boiler, with integrated exchanger.

Characteristics

• Primary exchanger made of Al-Si aluminum alloy
• Compact solar system: in approximately 0.4 m² all the components necessary for the creation of a solar thermal system for DHW production, collectors excluded
• 3-star sanitary comfort: the maximum achievable according to EN13203-1/2 thanks to the 200 liter stratified boiler
• Energy consumption savings of up to an extra 10% thanks to the intelligent management of the 200 liter stratified boiler (with integrated solar exchanger)
• Connectivity via MB LAN2 module as an accessory
• Installability in any context thanks to the possibility of using smoke exhaust systems with a diameter of up to 60 mm
• External installation, in a partially protected place, in compliance with current legislation
• Methane version convertible to LPG and Propane Air via specific adjustment, contact Thermotechnical Assistance

Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
