Kytek KB 200 Double Coil boiler for DHW production

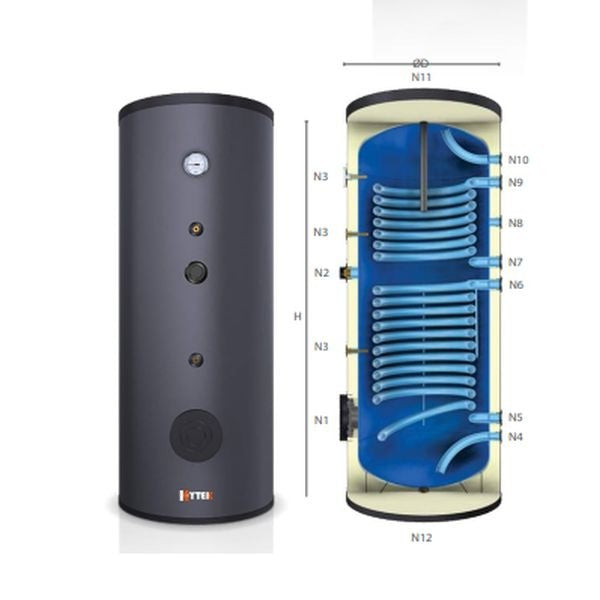

- Capacity V liters 200
- Type and thickness of insulation i mm PU/50
- Diameter ØD mm 580
- Height H 1340 mm
- Connection of the N2 1½” electrical resistance
- Thermometer and sensor connection N3 ½"
- Domestic cold water inlet connection N4 ¾”
- Bottom heat exchanger (coil) inlet/outlet connections. N5-N6 1¼”
- Upper heat exchanger (coil) inlet/outlet connections. N7-N9 1¼”
- DHW recirculation connection N8 ¾”
- Domestic hot water outlet connection N10 ¾”
- Connection of the N11 1¼” magnesium anode
- Blind connection N12 1¼”
- Gross weight G kg 87
- Tilt height at 45° R 1460 mm
Kytek KB
- Volume 200L-300L
- Upper heat exchanger
- Maximum heating power 41kW/h
- Lower heat exchanger
- Maximum heating power 55kW/h
- Maximum area of the solar collector 29 m2
- Maximum operating temperature of the heat exchanger 110°C
- Maximum operating pressure of the heat exchanger 10 bar
- Maximum domestic hot water operating temperature 95°C
- Maximum domestic hot water operating pressure6 bar / 10 bar
- Internal surface coating
- The internal surface of the tank is enamelled according to DIN 4753-3.
Specifications
Specifications
- peso: 150.0 kg
- costospedizionecad: IT79;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- marca: Kytek
- modello: KB200
