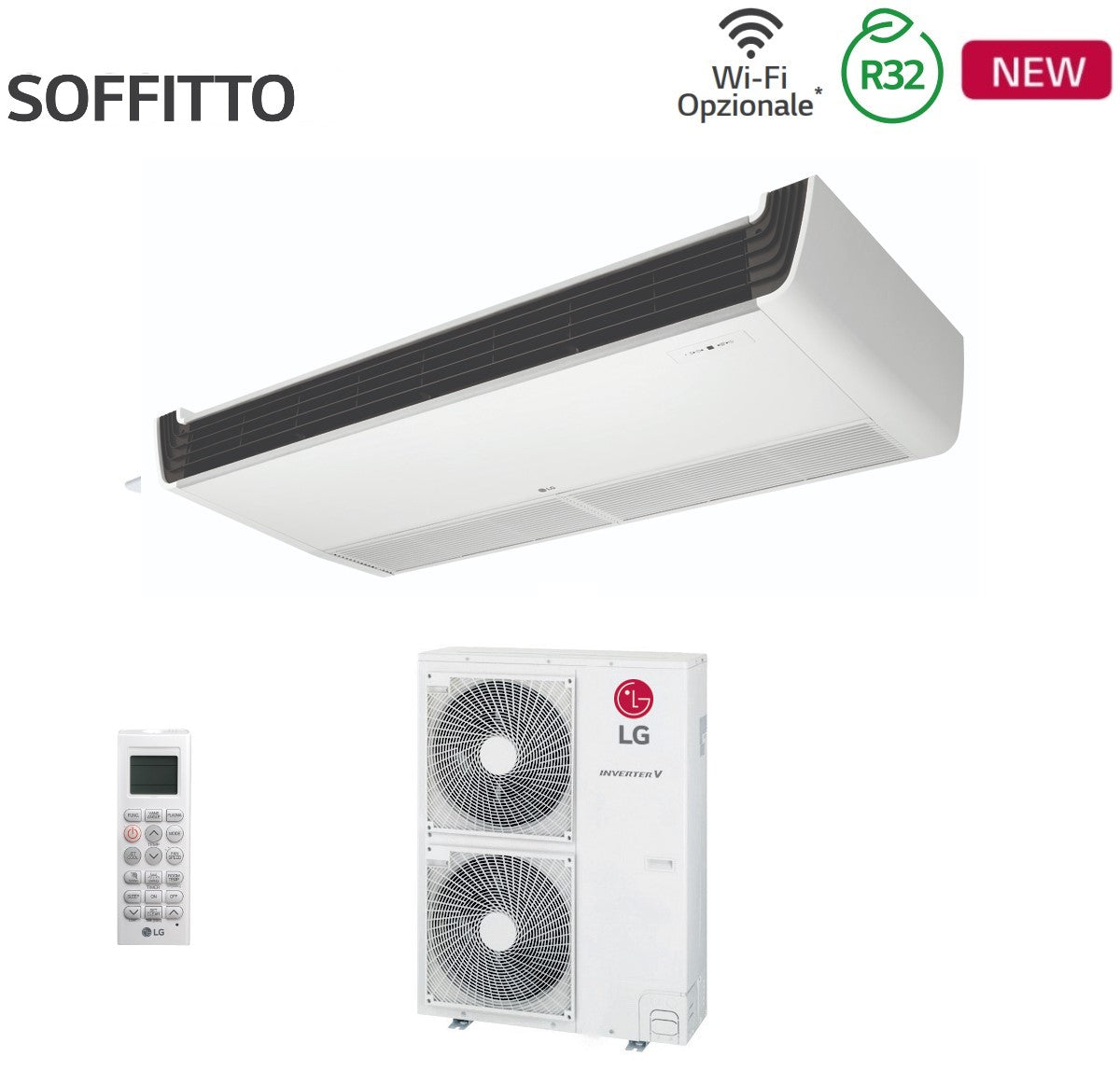

LG Ceiling Air Conditioner Inverter 36000 Btu UV36R/UUD1 Single Phase R-32 Wi-Fi Optional
- Indoor unit catalog code: UV36R N20
- Outdoor unit catalog code: UUD1.U30
- Power: 36000 btu
- SEER: 6.3
- SCOP : 4.1
- Cooling Energy Efficiency Class: A++
- Heating Energy Efficiency Class: A+
- Annual Energy Consumption in Cooling: 545 kWh/a
- Annual Energy Consumption in Heating: 1833 kWh/a
- Cooling Capacity: 9.5 kW
- Heating Capacity: 10.8 kW
- Cooling absorption: 2.30 kW
- Heating absorption: 2.75 kW
- External Unit Sound Power Level: 66 dB(A)
- Internal Unit Sound Pressure Level: 46 / 43 / 40 dB(A)
- External Unit Sound Pressure Level: 50 dB(A)
Electrical Data
- Power (V,Hz, Ø): 220~240/50/1
- Refrigerant gas: R32
- Operating range
- - Cooling: -20° ~ 52° C
- - Heating: -25° ~ 18° C
- Liquid pipe diameter: 9.52 mm (3/8")
- Gas pipe diameter: 15.88 mm (5/8")
- Maximum length of pipes: 85 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 1,600 x 690 x 235mm
- External Unit Dimensions (WxHxD): 950x1380x330 mm
- External Unit Weight: 85 Kg
LG ceiling
Innovative design
With its innovative V shape and black fins, the new indoor ceiling unit stands out for its elegance suitable for all spaces. The product aesthetics thus cared for were rewarded with the If Design Award.
Two-section One Touch filter
The composition of the filter in two parts allows it to be inserted and removed in a simplified way. Thanks to this, cleaning and maintenance are extremely simplified
Dual thermistor control
If the wired control is used, the ambient temperature present in the rooms can be detected in 3 different modes:
- from the sensor located in the wired control.
- from the sensor on the unit
-from both sensors, using the smaller of the two detected as the reference value.
The dual thermistor combined control can optimize the indoor air temperature, for a more comfortable environment
Simplified installation
Quick and easy installation improved thanks to the reduction in the number of screws used, positioned in such a way as to make the front panel accessible.
Temperature Control After Thermistor
If the wired control is used, the ambient temperature in the rooms can be detected in 3 different modes:
- from the sensor located in the wired control
- from the sensor on the unit
- from both sensors, using the smaller of the two detected as the reference value
The dual thermistor combined control can optimize the indoor air temperature, for a more comfortable environment
comfortable.
External Unit
• Self-supporting structure in galvanized sheet steel panels painted in warm gray color with surface treatment and Cataphoresis process, a surface treatment capable of providing considerable resistance to corrosion in order to protect the outdoor unit from atmospheric agents
• Removable front right panel for connection operations with the refrigerant circuit with integrated handle to facilitate transport and positioning of the unit
• Removable upper cover to access the control components with integrated handle on the right side to facilitate transport and positioning of the unit
• Protection grill on the air expulsion
Heat exchanger
External Wide Louver Fin heat exchanger which gives an improvement in exchange efficiency compared to a traditional exchanger, in corrugated copper tube with aluminum fins, coated with a Black Fin galvanic bath anti-corrosion treatment to give better resistance to acid rain and saltiness in sea areas. .Air intakes protected by square mesh in the same color as the outdoor unit. Protection of the air detection probe in a dedicated housing
Compressor
Capacity supply system consisting of 1 hermetic Twin Rotary DC inverter compressor with direct start. linear capacity control with an action range between a minimum of 10% up to a maximum of 130%
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Specifications
Specifications
- peso: 120.0 kg
- classe energetica raffreddamento: A++
- classe energetica riscaldamento: A+
- costospedizionecad: IT64;AD257;AT136;BE147;BG196;HR184;DK273;EE268;FR202;DE145;LV202;LT189;LU120;NL155;PT153;CZ132;SK148;SI149;ES141;SE319;HU122;CH216;
- gas: R-32
- marca: LG
- modello: UV36R/UUD1
- potenza btu: 36000
- superficie riscaldabile mq: 100
