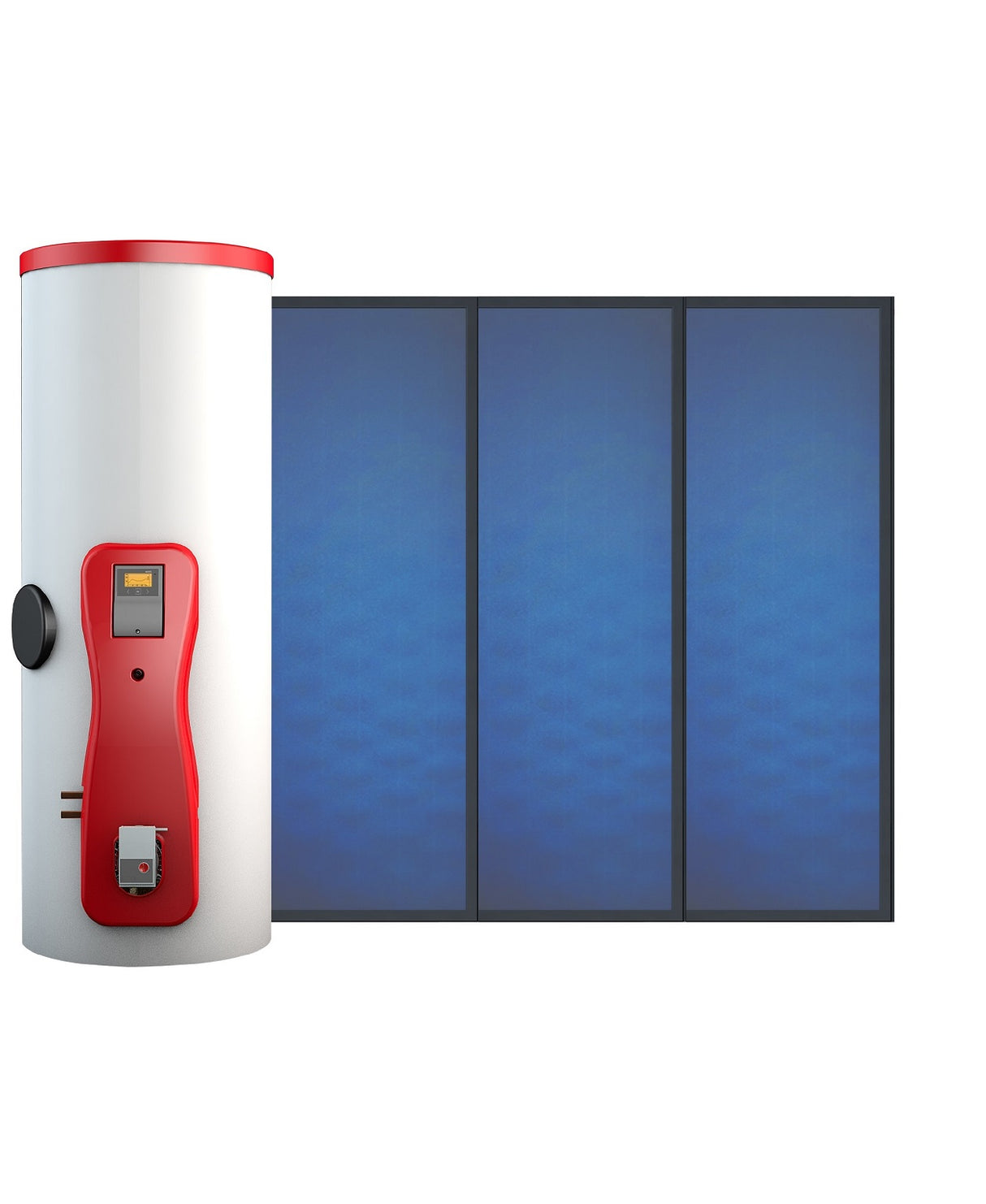

Pleion Solar Thermal System for DHW production ECO COMPACT boiler with 2 UNIKO21 flat collectors 500 liters very high efficiency and maximum yield complete with fixing system 6.27 m2

The Product is Available to Order

Pleion Solar Thermal System for DHW production ECO COMPACT boiler with 2 UNIKO21 flat collectors 500 liters very high efficiency and maximum yield complete with fixing system 6.27 m2

• Kettle volume 509 litres
• Upper exchanger content l 8.5
• Solar exchanger contents l 10.4
• Solar exchanger surface m3 1.4
• Maximum upper exchanger pressure bar 10
• Maximum solar exchanger pressure bar 10
• Maximum boiler pressure bar 6

Collector technical data

• Gross surface area 2.06
• Liquid content l 0.87
• Dimensions [mm] [2020hx1019x90]

PLEION SOLAR SYSTEMS

A new generation of solar systems for the production of domestic hot water with integrated solar station, pre-wired electronic control unit and UNIKO-P21 flat collectors.
Simple to install, the ECO COMPACT systems are equipped with a very high efficiency electronic circulator and PLEION PB 404 control unit.
The DIN 4753 vitrification and the high efficiency coefficient of the solar system combined with an electricity consumption of less than €6 per year make it ideal for domestic use.

UNIKO-P21

Flat solar collector with a gross surface area of ​​2.06m2 made up of a 3.2mm anti-reflective glass sheet which guarantees maximum light transmission combined with a single aluminum foil absorber with highly selective Bluetec capturing coating.
Internal copper hydraulic circuit with a single harp composed of 2 horizontal distribution pipes and 10 vertical ones, ultrasonic welded.
External connections with 4 ¾” connections with sealing o-ring, consisting of:
-set BASE IDRA: necessary at the end of each string;
-set PLUS IDRA: necessary for the series connection between collectors.
VERY HIGH EFFICIENCY – 589 kWh/year

ECO COMPACT

A new generation of compact solar boilers, with integrated solar station and pre-wired electronic control unit, for the production of hot water for domestic use.
Simple to install, the ECO COMPACT boilers are equipped with a highly efficient electronic circulator.
Suitable for sanitary use because it is internally vitrified in an oven at 850°C in accordance with DIN 4753.

Product Warranty All products on sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
