Description
Description

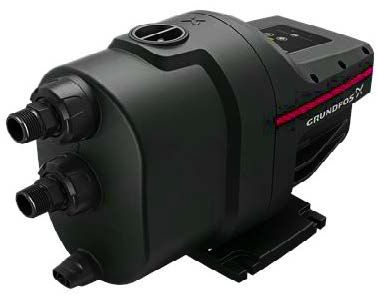

Self-priming grundfos pressurization unit with bluetooth connection SCALA1 5-55 99530407
General characteristics
- Brand: Grundfos
- Model supplied: SCALE1 5-55
- Model code supplied: 99530407
Data sheet
- Nominal flow rate: 5.33 m³/h
- Head: 25 m
- Max head: 55 m
- Mechanical seal type: BVBP
- Approvals: CE,EAC,AAA
- Drinking water approvals: WRAS,ACS
- Curve tolerance: ISO9906:2012 3B
- Model: A
- Starting pressure: 2.8 bar
Material
- Pump body: Composite
- Impeller: Composite
Installation
- Ambient temperature limit: 0 .. 55 °C
- Max operating pressure: 8 bar
- Max suction pressure: 2 bar
- Input connection type: R
- Delivery type: R
- Inlet connection size: 1 inch
- Output connection size: 1 inch
- Connection pressure rating: PN 8
Liquid
- Pumped liquid: Water
- Liquid temperature range: 0..45°C
- Liquid temperature during operation: 20 °C
- Density: 998.2 kg/m³
Electrical data
- P1 max.: 1200W
- Rated power - P2: 0.78 kW
- Mains frequency: 50 Hz
- Rated voltage: 1 x 230V
- Maximum current consumption: 5.38 A
- Protection class (IEC 34-5): X4D
- Insulation class (IEC 85): F
- Cable length: electrical:1.5 m
- Type E/F socket (CEE7/7)
- Power plug: Schuko
Other
- Net weight: 14kg
- Gross weight: 16kg
- Packaging volume: 0.046 m³
- Storage temperature range: -40 .. 70 °C
Description
Useful to
- Pressure increase - Commercial buildings
- Collection of groundwater for domestic use
- Increased water pressure for domestic use
Rainwater harvesting for domestic buildings
Grundfos SCALA1 is a compact, self-priming, fully integrated, all-in-one water system designed for pressure boosting in domestic and light commercial applications, such as garden irrigation or pressure boosting for detached and semi-detached houses and flats .
Product Warranty: All products on sale on our site are new and packaged. The warranty on this item is 12 months from the date of purchase.
Specifications
Specifications
- peso: 5.0 kg
- marca: Grundfos
- modello: SCALA1_5_55_1
- potenza in kw: 0,78
