SHARP SPLIT INVERTER AIR CONDITIONER SMILE CURVE SSR 9+9+9+9 series with AE-X4M28TR

Technical features

SEER: 6.10;
SCOP: 4.0;
Energy class in cooling: A++;
Energy class in Heating: A+;
Power: 9000+9000+9000+9000 BTU;
Indoor Unit air flow (Max): 4100 m3/h;

Cooling performance:
Capacity: 8.0 kW;
Current Absorption: 11.3 A;
Absorption: 2.48 kW;
Operating limits (min./max): -15~43 °C;

Heating performance:
Capacity: 9.3 kW;
Current Absorption: 11.1 A;
Absorption: 2.49 kW;
Operating limits (min./max): -20~24 °C;

Internal Unit sound pressure (Max/Min): 41/26 dB(A);
External Unit sound pressure: 58 dB(A);
Internal Unit sound power: 55 dB;
External Unit sound power (Max): 65 dB(A);

Liquid/Gas pipe diameter: 1/4-3/8 inch;
Refrigerant Gas: R-410A;
Maximum Pipe Length: 1-70m;
Standard tube length: 10 m;
Maximum height difference between units: 10 m;

Dimensions

Internal Unit (WxHxD): 790x275x200 mm; Weight: 9kg;
External Unit (WxHxD): 980x790x427 mm; Weight: 69 kg;

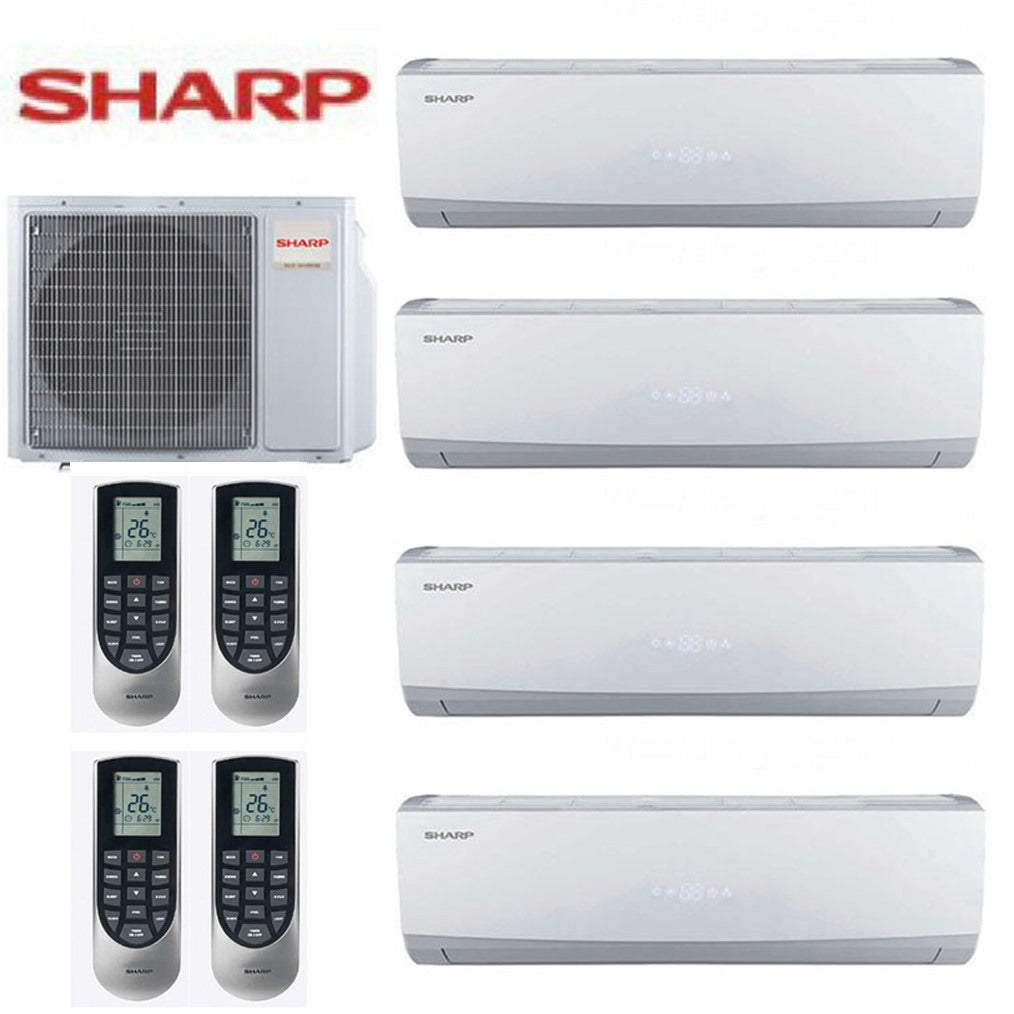

Composed of:
Indoor Unit: 4x AY-XC9SSR;
Outdoor Unit: AE-X4M28TR;

General characteristics

The SHARP Monosplit SSR series air conditioner designed to perfectly combine performance with the elegance of Sharp design, with extremely small dimensions, fits perfectly into any furnishing, becoming part of it. Not only design but also perfect in performance given its multiple functions that make it effective and efficient in reaching the desired temperature in the shortest possible time (Turbo Function), given its high volume of air introduced into the environment. The turn-off LCD display placed in the center of the split is certainly characteristic of its minimalist design, equipped with heat pump operating technology, which guarantees greater energy efficiency thanks to the expansion valve and the powerful DC-Eco Inverter motor, present both on the compressor and on the outdoor unit motor fan. In turn, the compressor works on a 180° sine wave instead of 120°, creating a more linear motor rotation, with a large reduction in energy loss, thus improving efficiency and therefore energy saving. It allows you to create perfect comfort in your home throughout the year. The maximum comfort system, comfortable and with an incredible quality/price ratio.

Functions:
I Feel: this is the function that allows you to actually feel the set temperature;
Turbo (Ful Power): function that can be activated at any time to reach the desired temperature, both hot and cold in extremely short times;
Timer: programmable timer up to 12 hours allows you to use your air conditioner as you wish;
Sleep: this is the function that automatically adjusts the functions and temperature when you sleep;
Dry: Dehumidification function;
Auto Restart: this is the function that returns the air conditioner to the function prior to the sudden power cut;
Heat pump: useful in the intermediate season and for those who want to heat rooms in the winter;

SHARP advantages:
Elegant and innovative design;
Elegant LCD display with pop-up switch;
Energy class A++,A+;
Flexibility of single-split and multi-split indoor units (code AY-X24SSR single-split only);
Heat pump useful in the intermediate season and for those who want to heat rooms in the winter;
Anti-mold filters, washable and interchangeable;
